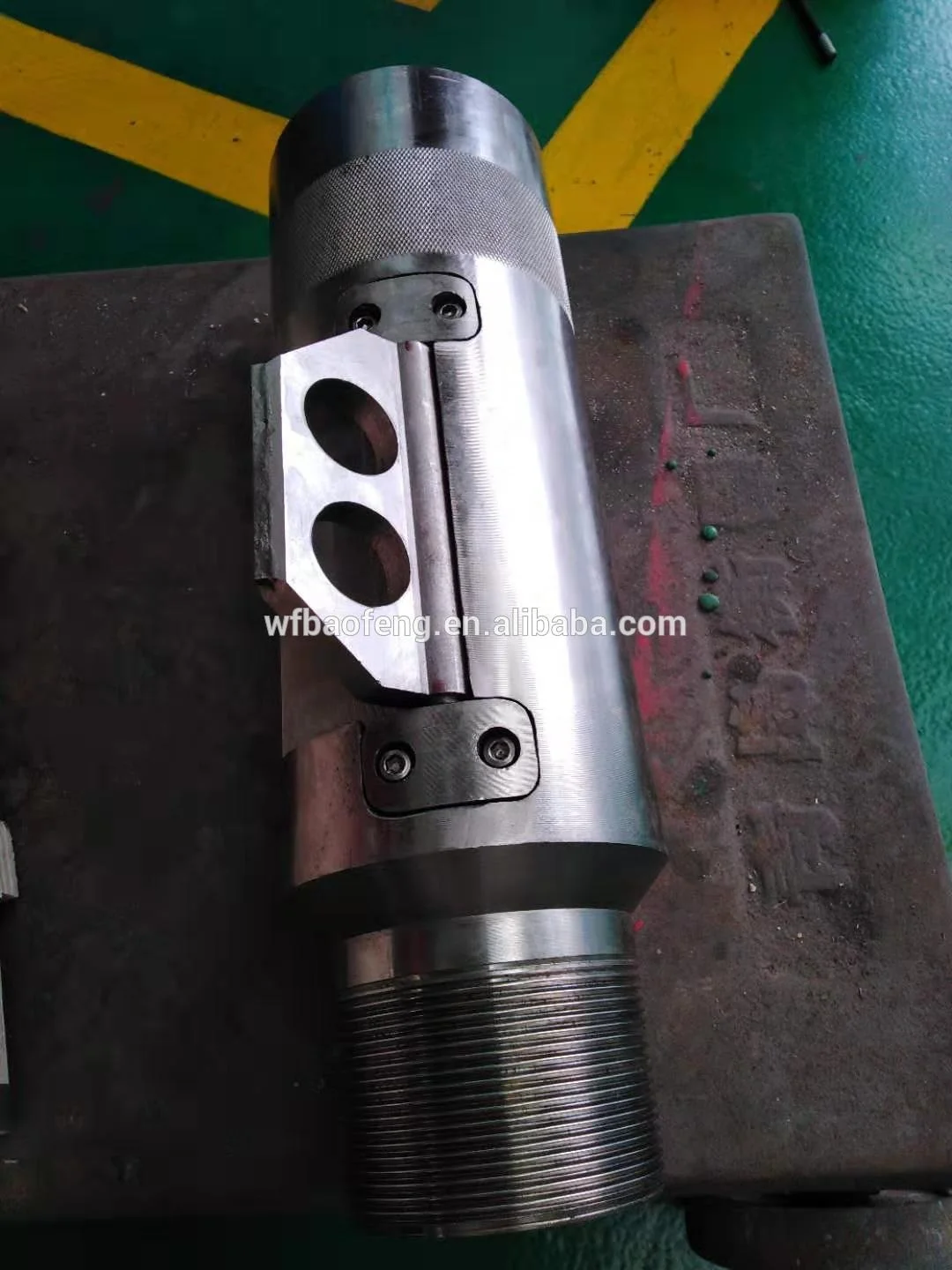

Artificial Downhole 5 1/2 "*2 7/8" EUE TorqStopper to Anchor the Tubing String
Artificial Downhole 5 1/2 "*2 7/8" EUE TorqStopper to Anchor the Tubing String
Artificial Downhole 5 1/2 "*2 7/8" EUE TorqStopper to Anchor the Tubing String
Artificial Downhole 5 1/2 "*2 7/8" EUE TorqStopper to Anchor the Tubing String
Artificial Downhole 5 1/2 "*2 7/8" EUE TorqStopper to Anchor the Tubing String
Artificial Downhole 5 1/2 "*2 7/8" EUE TorqStopper to Anchor the Tubing String
Artificial Downhole 5 1/2 "*2 7/8" EUE TorqStopper to Anchor the Tubing String

Artificial Downhole 5 1/2 "*2 7/8" EUE TorqStopper to Anchor the Tubing String

Share on:

Price:RUB 43,974.44
Price in USD:Details

Quantity:

Price request

Product Overview

Description

Product Description

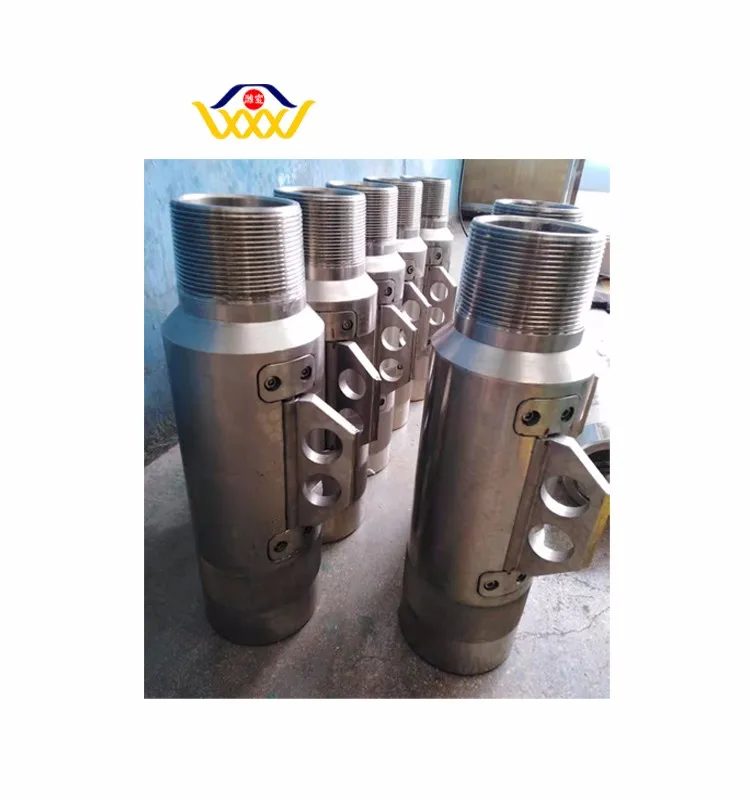

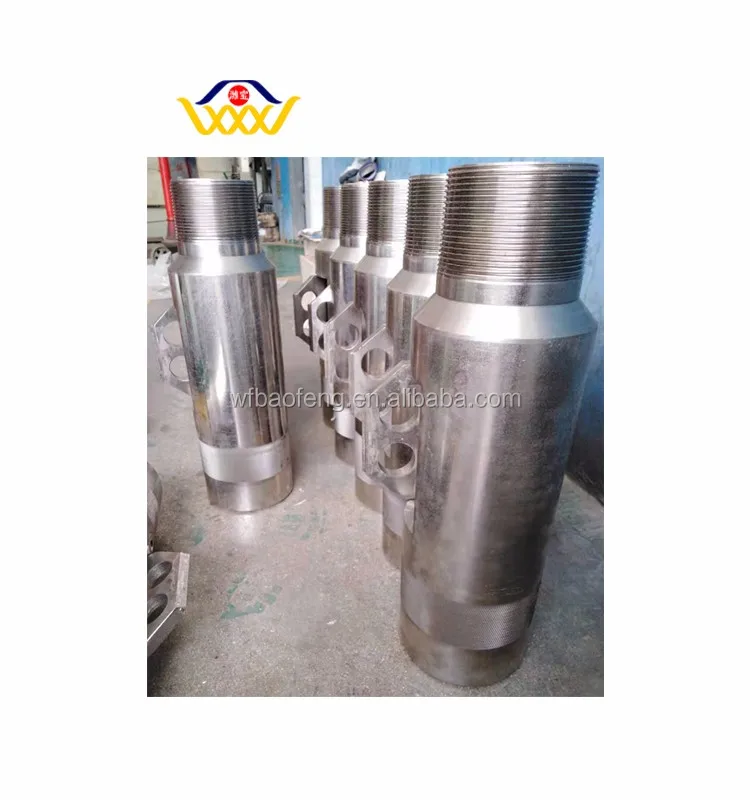

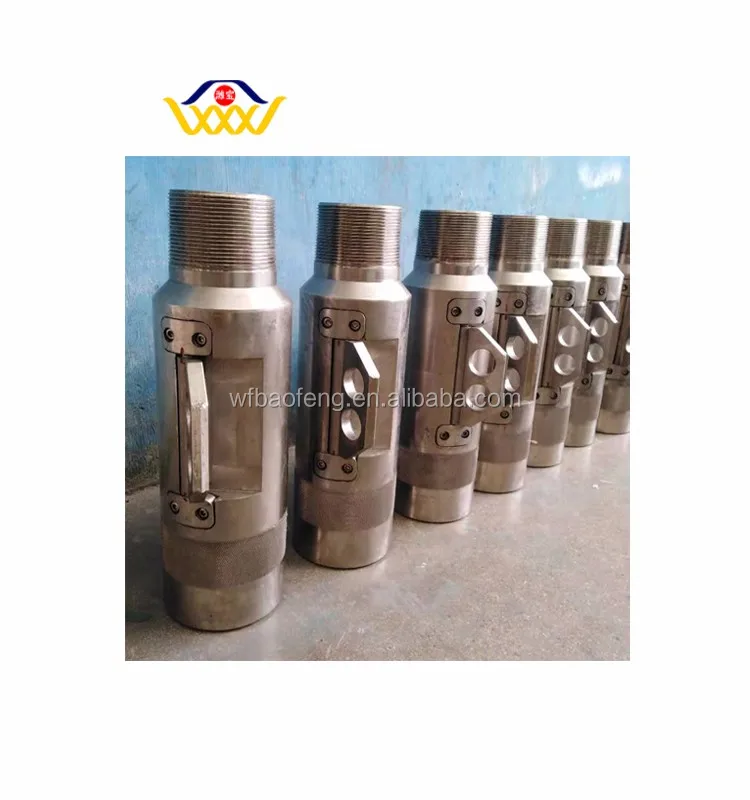

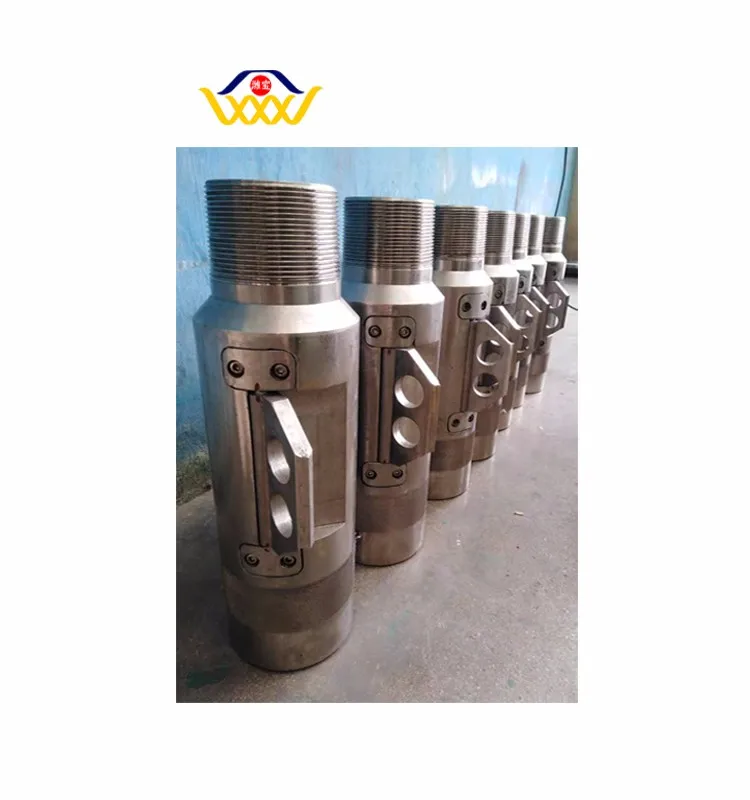

Oilfield Downhole Tool TorqStopper

The TorqStopper is designed to anchor the Tubing String and Progressing Cavity Pump (PCP) within the wellbore. The TorqStopper consists of a unique anchor design, which incorporates a blade style slip that engages the casing wall and stops the righthand rotation of the PC Pump, preventing tubing back-off.


Benefits: The following are additional features incorporated in the design:

Simple operation

The open By-Pass area allows for sand and coiled tubing to pass the tool.

Carbide edge on the blade ensures casing engagement

Inconel springs for H2S and CO2 resistance

Rebuilding procedure can be performed in the field.

Operation:

1.The TorqStopper is threaded onto the tubing string above or below the PC Pump.

2.Run the tubing to the desired setting depth and land the tubing hanger. DO NOT tighten the lock screws.

3.Pick up the tubing string so it is just off the hanger seat and apply right hand torque to the tubing to set the anchor.

4.Set the tubing hanger back down and lock the hanger into place.

5.To release the TorqStopper, rotate left ¼ to ½ turn, pull up on the tubing

Oil Downhole Tool Tubing Anchor for PC Pump Technical Parameter


Release Procedure

1. Pick up on dognut

2. Rotate tubing to the left (CCW) until preload is released, then rotate a further ¼ - ½ turn to left

(CCW) to release tool.

3. Pull up on the tubing

4. The TorqStopper is released

Special Instructions: "S" Bend Deviated wells

The following setting procedure is for use on 'S' Bend Deviated Wells.

1. Land the dognut as normal.

2. Stroke tubing up and back 12" – 18" (30 to 45 cm) 4 times

3. With the tubing in the lowered position, apply a minimum of 500 ft-lbs setting torque as specific

in the table below.

4. Stoke the tubing again along the 12" – 18" (30 to 45 cm) another 5 to 6 times while maintaining

the setting torque.

5. Land the dognut and complete.

The TorqStopper will now be set.

If the setting is applied without stroking the tubing, the TorqStopper may not set due to the lack of torque transmission below the 'S' bend.

Custom sized and configurations also available
