Original 7'' TFT LCD 800x480 70MHz 1GS/s Record Length 24K Hantek DSO5072P 2 Channels Digital Oscilloscope

Product Overview

Description

3 in 1 Hantek Digital Oscilloscope Waveform Generator Multimeter USB Portable 2 Channel 40mhz Multifunction

• Oscilloscope + Waveform Generator + Multimeter: This multi-purpose station own three universal test instrument functions. It is outgoing right-hand product for engineers.


• Intelligent charging control: Its lithium batteries can be recharged byeither high current-5V/2A or ordinary computer USB interface. Allow while charging, while using, very convenient and handy;


• Ultra-low power design: Type C charging interface, after every recharge of 2 hours, the device can be used continuously for a full day or standby more than two months;


• Large-capacity lithium battery power supply:  18650 replaceable lithium battery power system, free from replace battery;


• 5V/2A charger + Type C charging cable: Type C power + data transfer interface, can share the charger and data cable with your mobile phone;


• AUTO one-key test: Magic tool and essential function for test newbie;


• Volume small, one hand holding: The 45 degree suspension bracket design provide you a work station anywhere anytime;


• One key page out, quick compare two groups of reference waveforms + 6 groups of waveforms storage, simple and effective;


• Digital voltmeter function: automatic frequency and amplitude measurement, convenient and worry-free;


• Its cursor measurement functionsupports time and voltage manual measurement, and measure the required waveforms accurately;


• One-click switching its Chinese and English language menu;


• Color LCD screen: exquisite and smooth lines make the waveforms clear and undistorted when magnify;


• Minimalist keyboard design simplify operation, convenient to use;


• Unibody casing: fine touch feeling, favorable impact resistance, outstanding heat resistance, easy to disassemble;


• Self-calibration function: free from level drift after long time unused;


• Universal multimeter function: voltage, current, resistance, diode, capacitor, on-off test;


• Waveform generator output function: output sine, square, triangle, trapezoidal and other waveforms; sine up to 25MHz;


• Function of video help:scan code on back of machine to get help of video course;


• The PC software supports windows7/8/10 32-bit and 64-bit.


• Update:
  FPGA update, for detail see
  Firmware update, for detail see

Great function with small size!

Minimalist keyboard design simplify operation, easy to use.

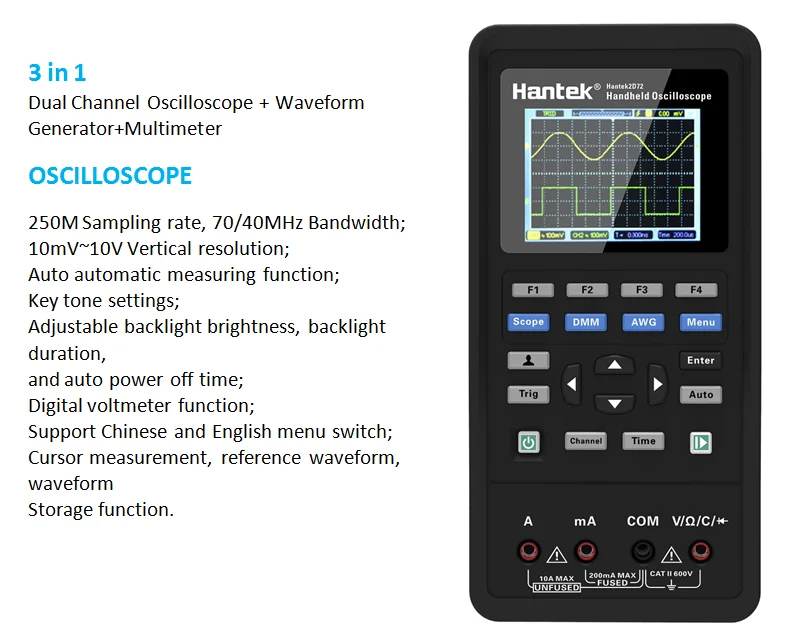

Oscilloscope + Waveform Generator + Multimeter:

Multi-purpose station own three universal test instrument functions. Outgoing right-hand product for engineers.

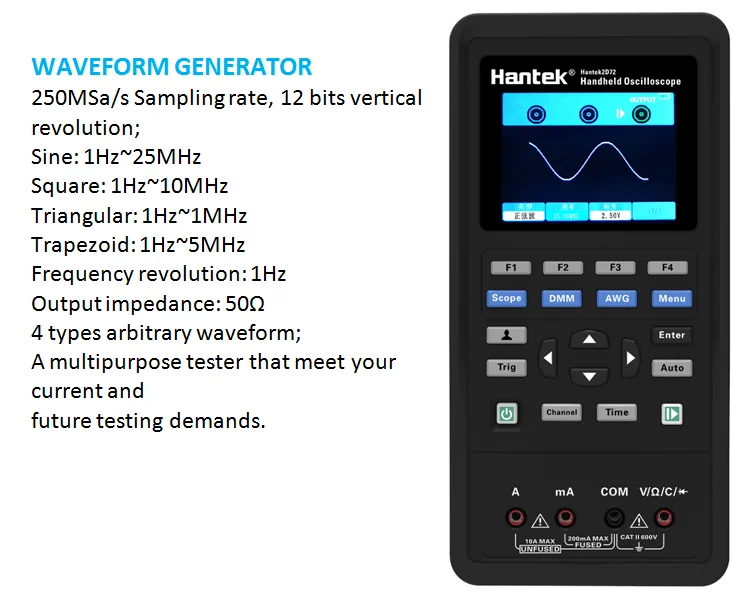

Waveform Generator Function

A multipurpose instrument that helps complete your tasks more quickly, improves work

 efficiency, and meets all your current and future test needs.

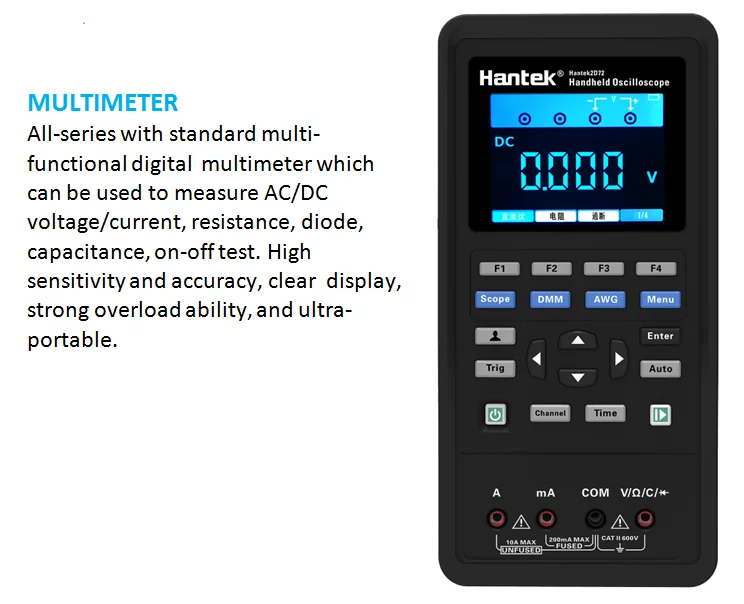

Multifunction Digital Multimeter Function

 High sensitivity and accuracy, showing clear, stronganti-overload capability, easy to carry.

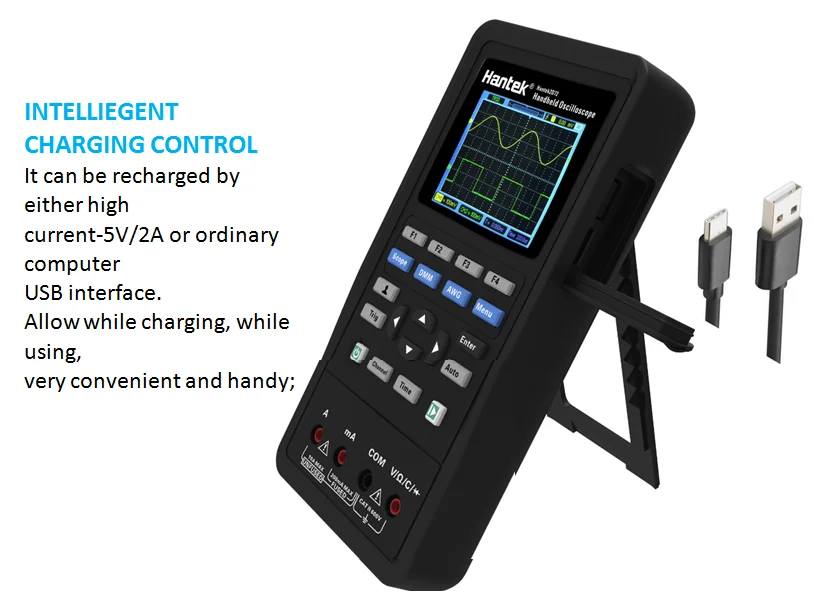

Intelligent Charging Control

Be able to recharged by 5V/2A large current or ordinary computer USB port, measurement can be done even while charging, convenience and user-friendly.

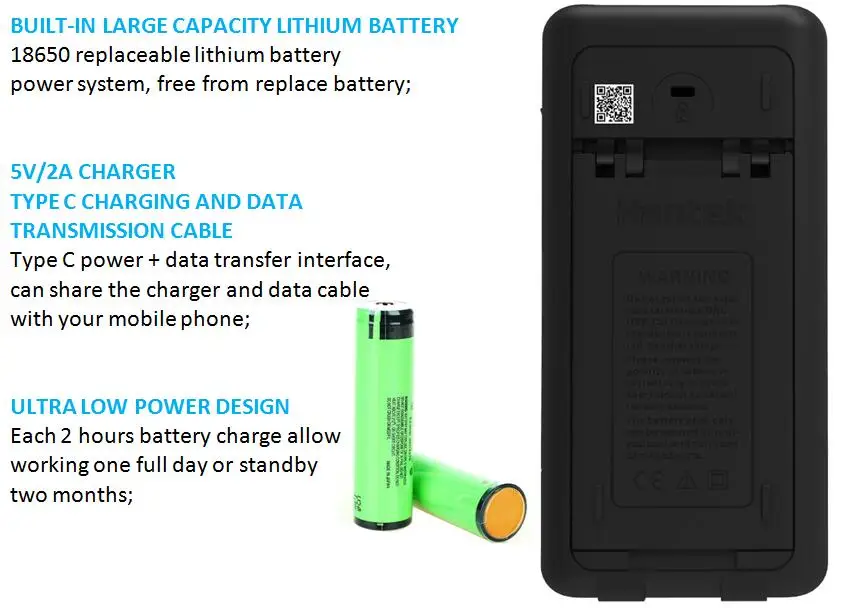

Large-capacity Lithium Battery + Ultra Low Power + Type C Data Transfer/Charging Interface

 18650 replaceable lithium battery power system, free from replace battery;

Be able to recharged by 5V/2A large current or ordinary computer USB port,

allow while charging,while using, very convenient and handy;Type C charging interface,

after every recharge of 2 hours, the device can be used continuously fora full day or standby more than two months;

Type C power + data transfer interface, can share the charger and data cable with your mobile phone;

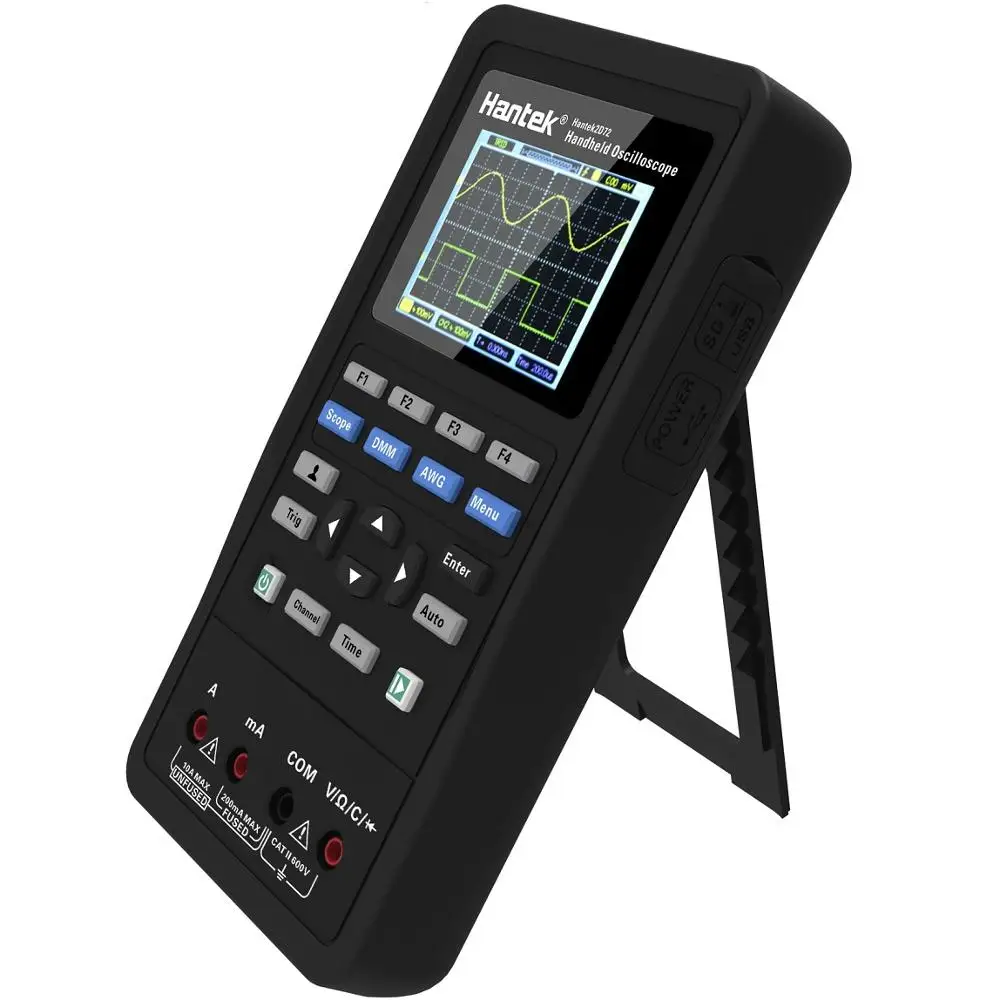

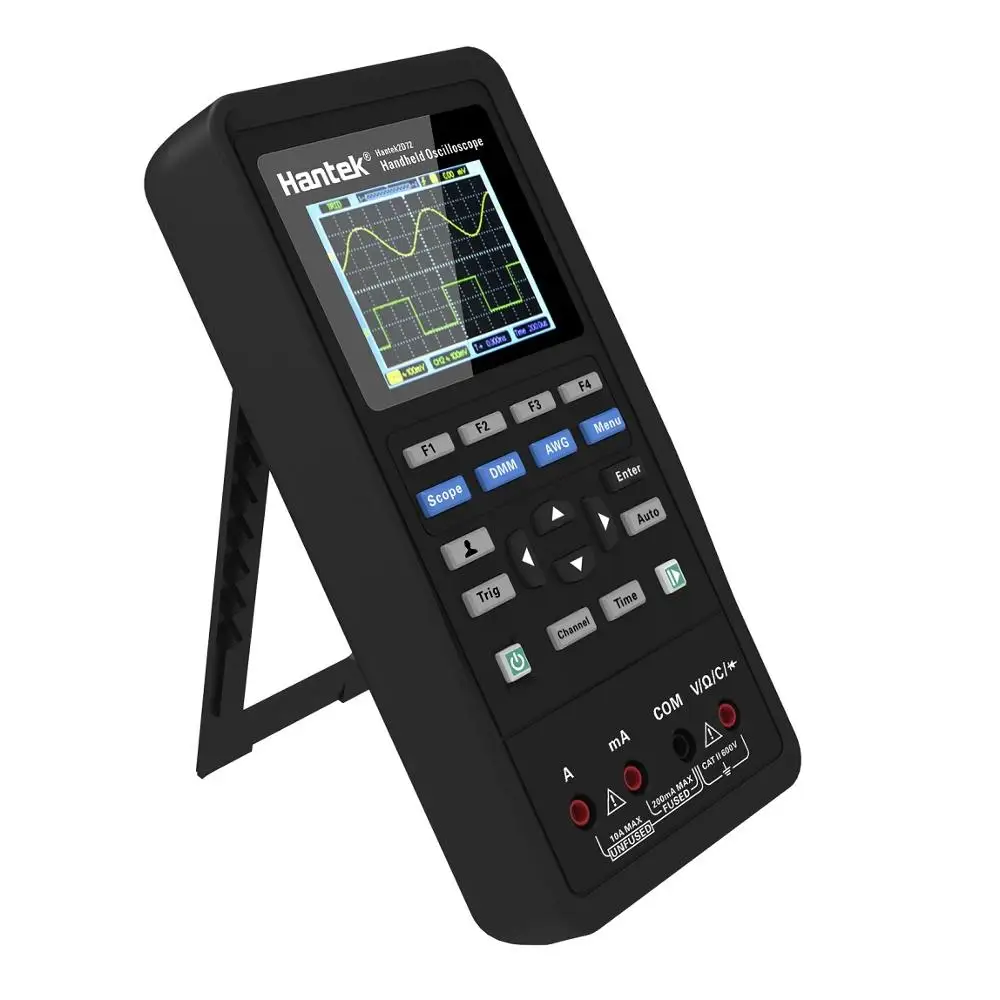

Suspended Support, Multiangular Adjusting, Let you Enjoy Convenience

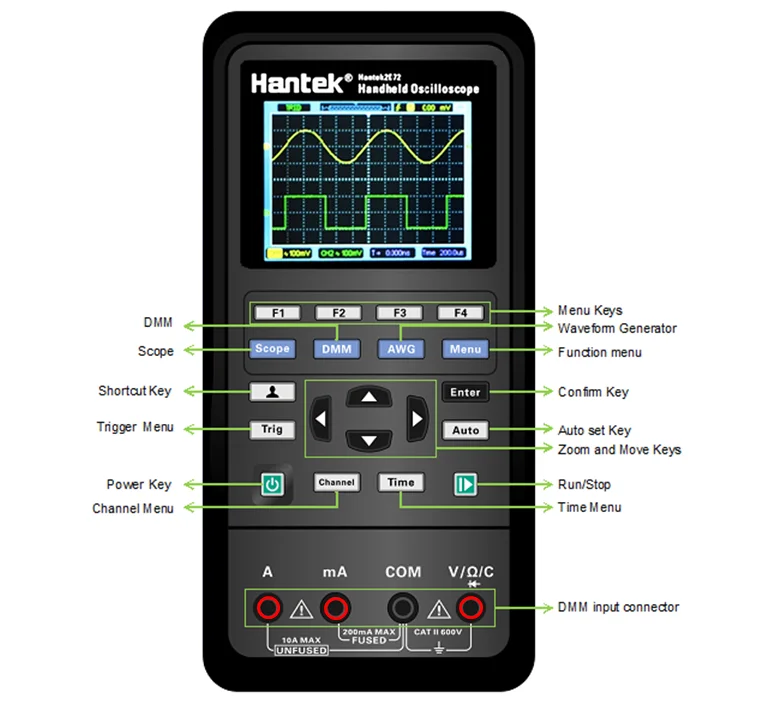

Function Review

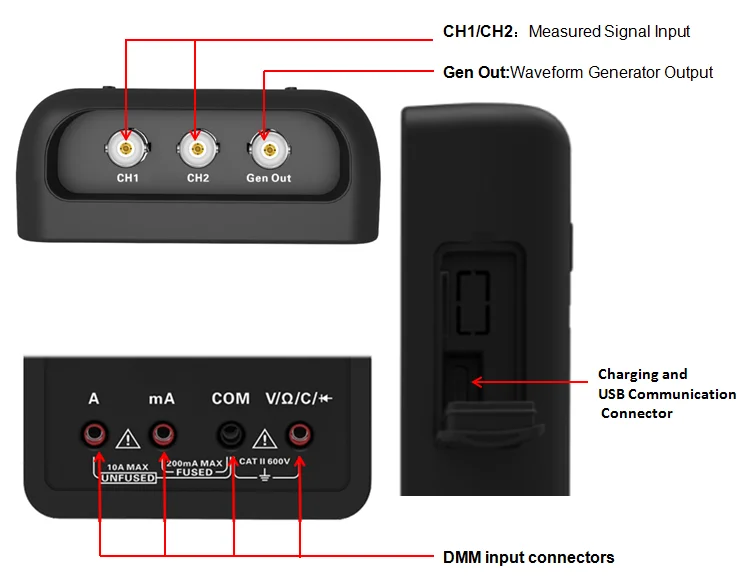

Connectors Review

 Interface Review

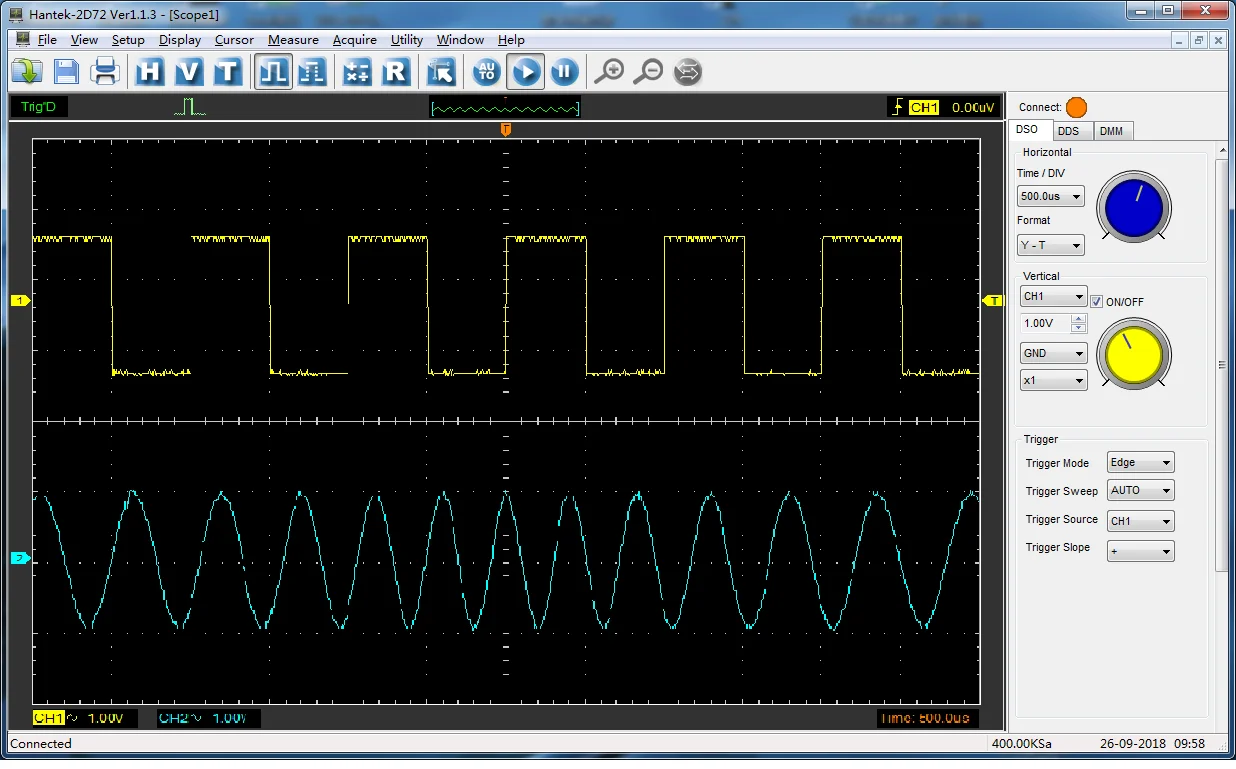

Powerful PC software

Oscilloscope powerful functions: 20 kinds of automatic measurement, cursor measurement,

waveform printing and saving functions, REF and Math functions, Pass / Fail functions.

The waveform generator is able to draw and output arbitrary waveforms on its PC software

multimeter with recorder function, which support the measurement resultsto nerate the curves and analyze them.
