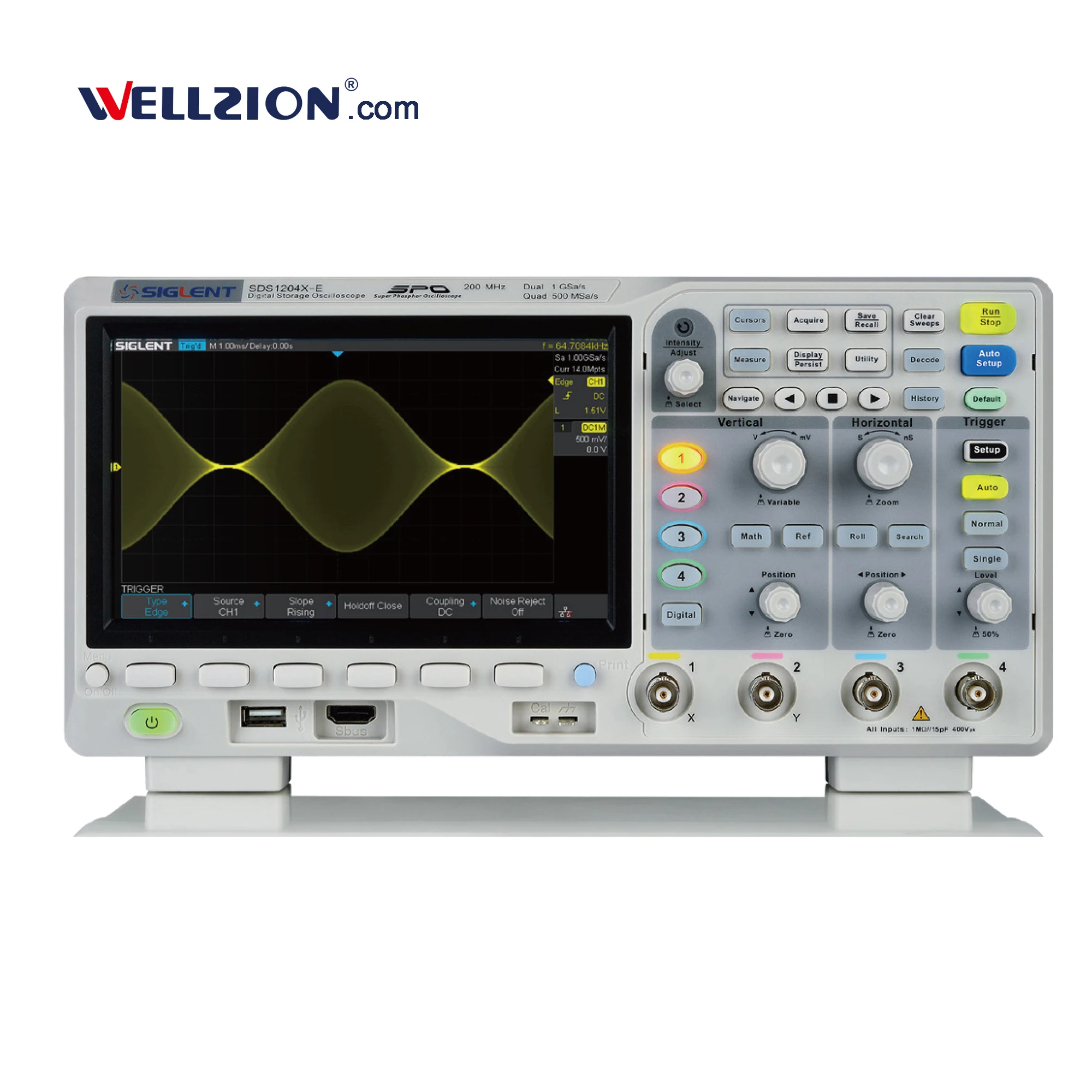

SDS1204X-E,200MHz Bandwidth 14 Mpts Memory Depth Siglent Oscilloscope

SDS1000X-E Series Super Phosphor Oscilloscope is available in 100 and 200 MHz bandwidths and 2 or 4 analog channels. It has a maximum sample rate of 1 GSa/s and a standard record length of 14 Mpts. For ease-of-use, the most commonly used functions can be accessed with its user-friendly front panel design.The SDS1000X-E series employs a new generation of SPO (Super Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. The system noise is also lower than similar products in the industry. It comes with a minimum vertical input range of 500 uV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/ sec (sequence mode).

The SDS1000X-E also employs a 256-level intensity grading display function and a color temperature display mode not found in other models in this class. SIGLENT’s latest oscilloscopes offering supports multiple powerful triggering modes including serial bus triggering. Serial decoding is free and includes IIC, SPI, UART, CAN, and LIN. History waveform recording and sequential triggering enable extended waveform recording and analysis. Another powerful addition is the new 1 Mpt FFT math function that gives the SDS1000X-E very high frequency resolution when observing signal spectra. The new design also includes a hardware co-processor that delivers measurements quickly and accurately. The features and performance of SIGLENT’s new SDS1000X-E cannot be matched anywhere else in this price class.

Bandwidth: 200MHz
Channels: 4CH(16 digital optional)
SamplingRate (Max.): 1GS/s
Memory Depth (Max.): 7 Mpts/CH (not interleave mode);14 Mpts/CH (interleave mode)
Waveform Capture Rate (Max.): 100,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode)
Waveform interpolation: Sin(x)/x, Linear
Vertical Resolution: 8-bit
Vertical Scale (Probe 1X): 500 μV/div~10 V/div (1-2-5 sequence)
Timebase Scale: 1.0ns/div~100s/div
Timebase Accuracy: ±25 ppm

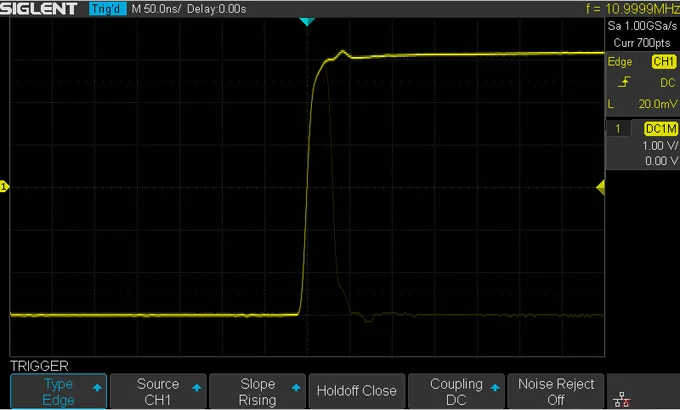

Trigger Type: Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video

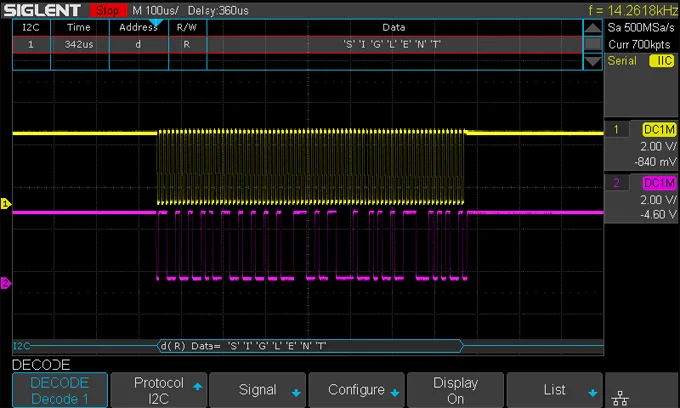

Serial Trigger and decoder (Standard): IIC, SPI, UART/RS232, CAN, LIN
Trigger Coupling: AC,DC,LFRJ,HFRJ,Noise RJ
Trigger Mode: Auto, Normal, Single
16 Digital Channels(four channel series only,option):Maximum waveform capture rate up to 1 GSa/s, Record length up to 14 Mpts/CH
Auto Measurement: 38 Types
Math: + , - , * , / , FFT , d/dt , ∫dt , √
USB AWG module (four channel series only, option): One channel, 25 MHz, sample rate of 125 MHz, wave length of 16 kpts
Bode plot ( four channel series only): Minimum start frequency of 10 Hz, minimum scan bandwith of 500 Hz, maximum scan bandwidth of 120MHz (dependent on Oscilloscope and AWG bandwidth), 500 max. scan frequency points
USB WIFI adapter (four channel series only, option): 802.11b/g/b, WPA-PSK, the adapter must be supplied by Siglent to ensure working
Interface: USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Sbus (Siglent MSO)
Display: 7 inch TFT -LCD (800x480)
Probe (Std): 4 pcs passive probe PP215
Weight: 3.8kg (with package)

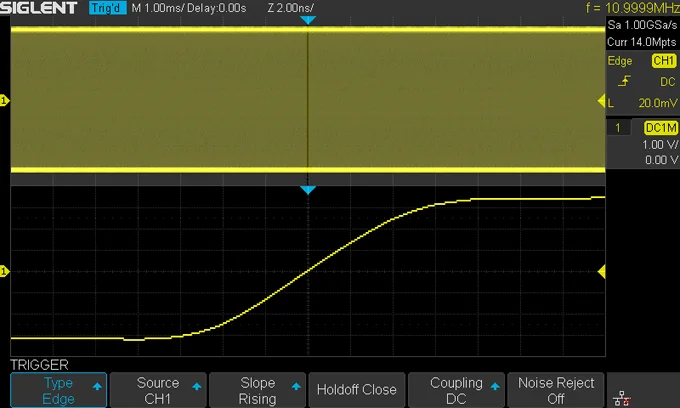

Record Length of Up to 14 Mpts

Waveform Capture Rate Up to 400,000 wfm/s

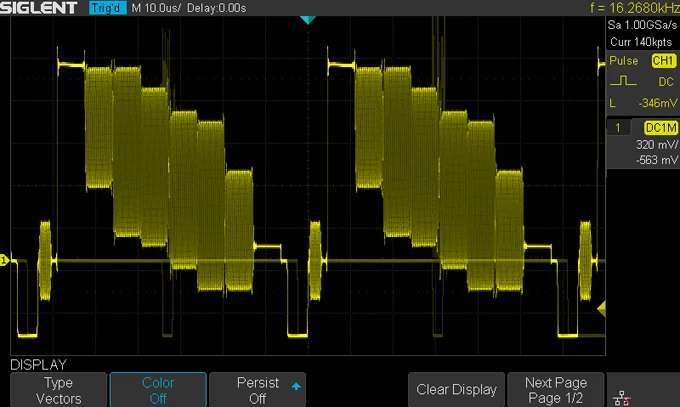

256-Level Intensity Grading

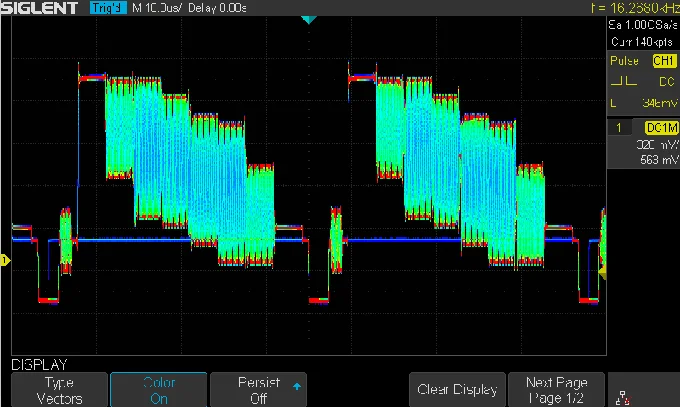

Color Temperature Grading

Serial Bus Decoding Function (Standard)

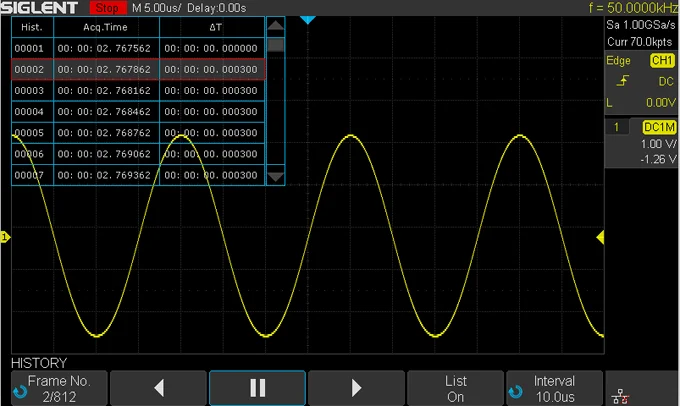

History Waveforms (History) Mode and Segmented Acquisition (Sequence)

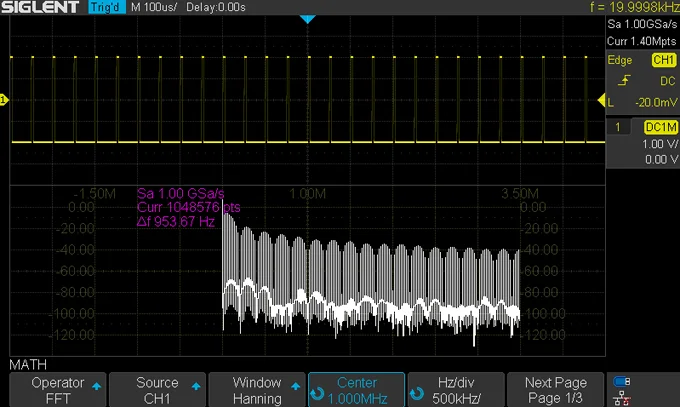

1Mpt  FFT

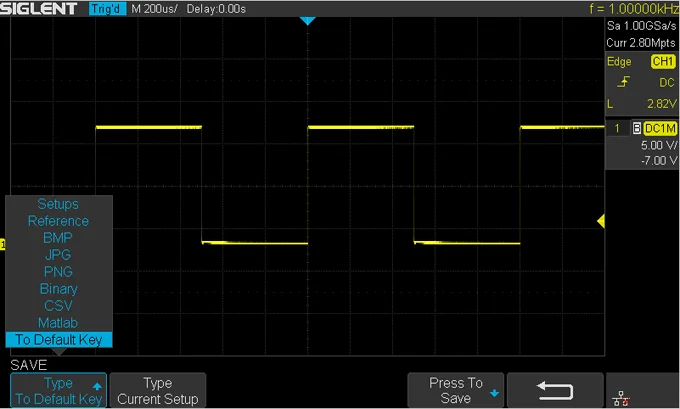

Customizable Default Key
