Hantek6022BL PC USB Oscilloscope 2 Digital Channels 20MHz Bandwidth 48MSa/s Sample Rate 16 Channels Logic Analyzer

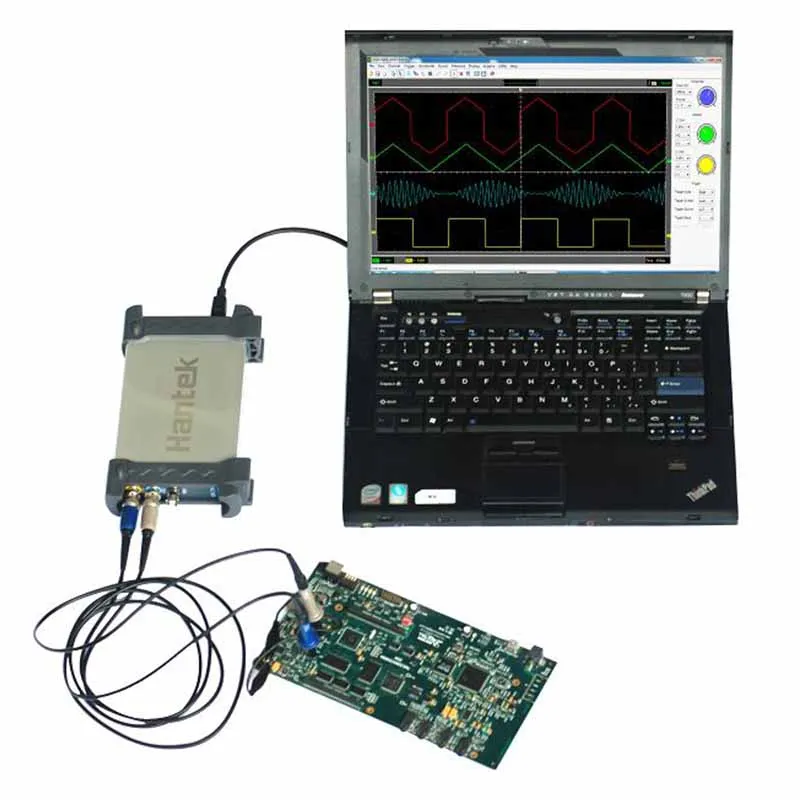

Hantek6022BL
20MHz Bandwidth; 48MSa/s Sample Rate; 16 Channels Logic Analyzer; Excellent industrial design-the same anodised aluminium casing as which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability. Standard USBXI (TM) interface, easyly inserts into USBXI (TM) housing to make up a combination instrument.

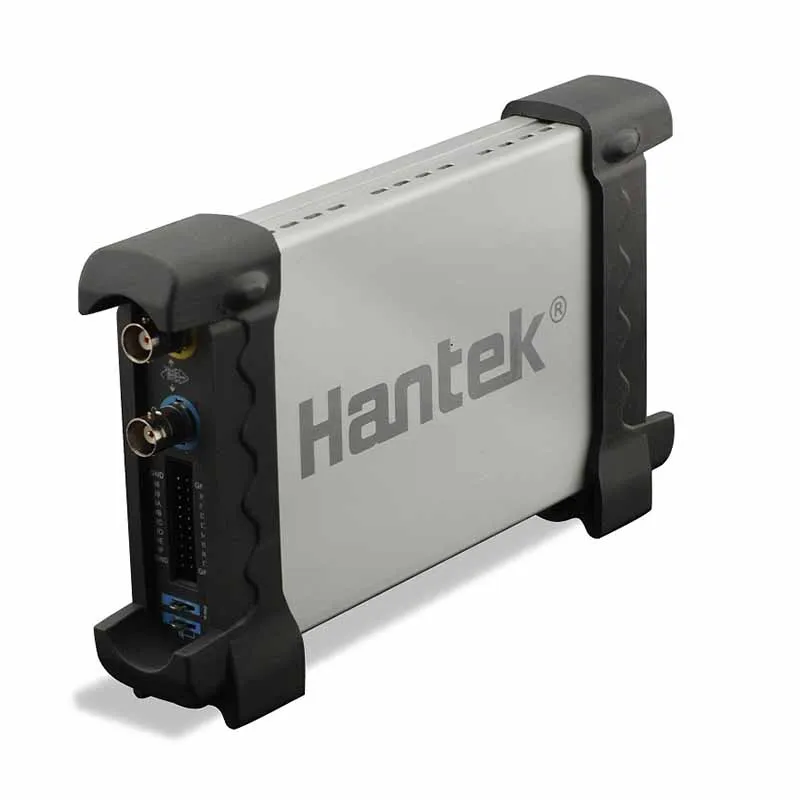

Features
· Excellent industrial design-the same anodised aluminium casing as , which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.
· Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument.
· USB2.0 interface, no external power source required, easy to use.
· Be suitable for notebook computer, product line maintenance, be used easily on business.
· Dimensions (mm):205(L) x120(W) x35(H), be carried easily.
· High performance, 48MS/s real-time sampling, 20MHz bandwidth.

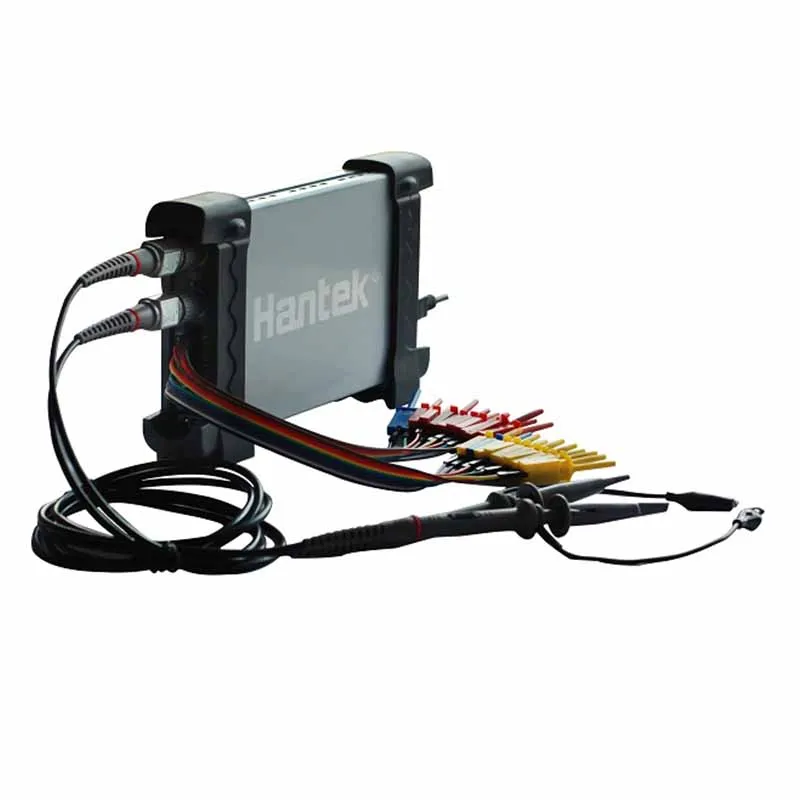

· 16Channels Logic Analyzer, 10MHz Bandwidth;
· Operating System: Windows8, Windows 7, Windows NT, Windows 2000, Windows XP, VISTA.
· 23 measurement functions, PASS/FAIL Check, be suitable for technical application.
· Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
· Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
· FFT
· One computer can connect many DSO, extend channel easily.
· Labview\\VB\\VC Second Design instance.

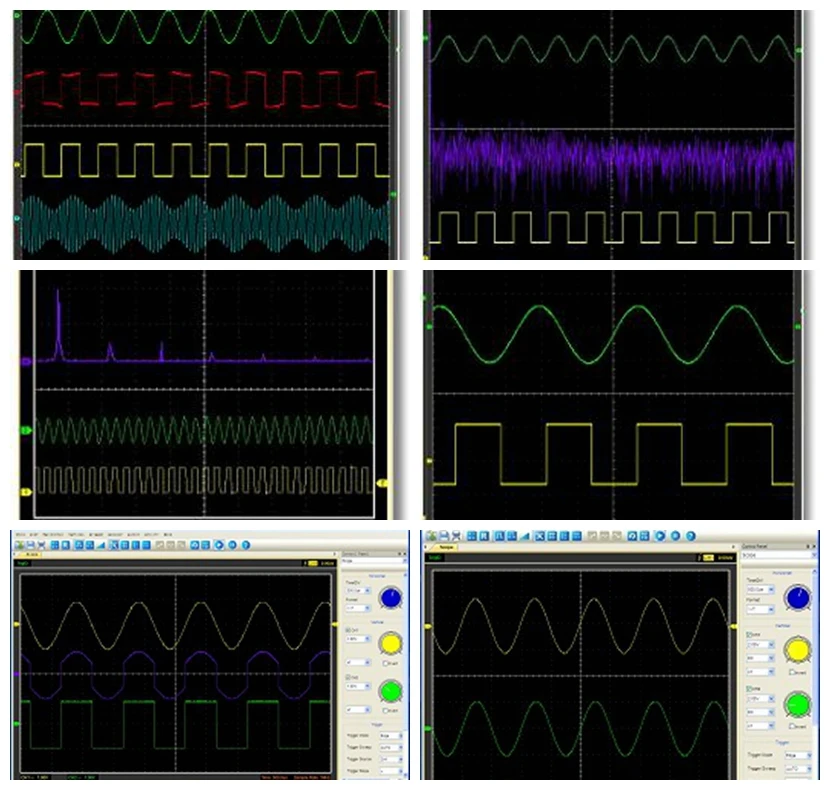

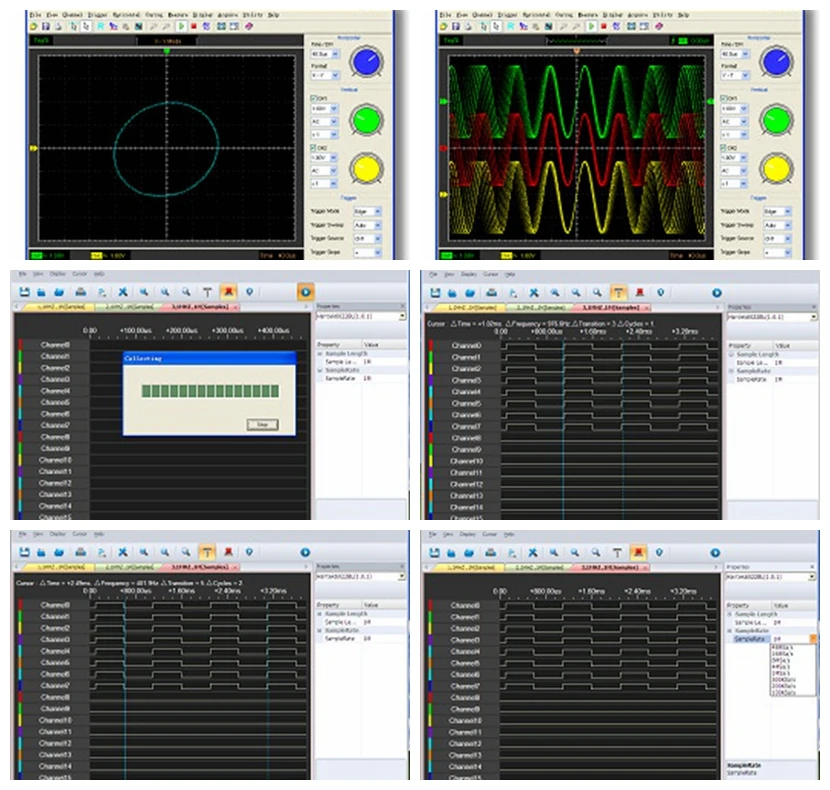

Function Picture:
| Model | Hantek6022BL |
| Oscilloscope Features | |
| Bandwidth | 20MHz |
| Channel | 2(Digital)+16(Logic) |
| Sample Rate | 48MSa/s |
| Memory Depth | 1M |
| Rise Time | 17.5ns |
| Time Base Precision | ±50ppm |
| Time Base Range | 4ns/div-1h/div (Step by1-2-4) |
| Input Impendence | 1MΩ 25pF |
| Input Sensitivity | 20mV/div~5V/div |
| Vertical Resolution | 8Bit |
| Vertical Position Range | 20mV ~ 5V/div @ x1 probe; 200mV ~ 50V/div @ x10 probe; 2V ~ 500V/div @ x100 probe; 20V ~ 5KV/div @ x1000 probe |
| DC Accuracy | ±3% |
| Bandwidth Limited | 20MHz |
| Trigger Type | Edge, Alternative |
| Trigger Source | CH1, CH2 |
| Math | +,-,x,÷,FFT, Invert |
| Cursor Measurement | Cross, Trace, Horizontal, Vertical |
| Auto Measurement | Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
| Logic Analyzer Features | |
| Channel | 16 |
| Max. Impendance | 1MΩ(C=7.5pF) |
| Max. Voltage | 0V~5.5V |
| Max. Sample | 48M |
| Bandwidth | 10MHz |
| Compatible Input | TTL, LVTTL, CMOS |
| Memory Depth | 1M/CH |
| General Features | |
| Power | USB Port |
| Demensions | 200mm x100mm x 35mm |
| Weight | 0.3KG |
| Standard Probe | 2 x PP80 |
