LW L-5060 Analog Oscilloscope 60MHZ 2 Channel Portable Oscilloscope for Lab Teaching

Product Overview

Description

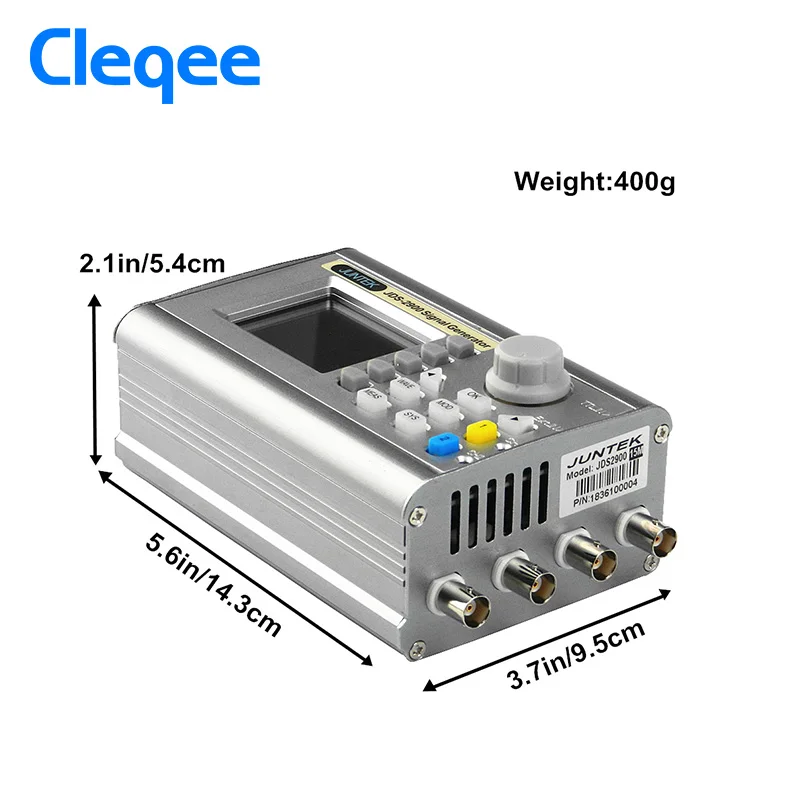

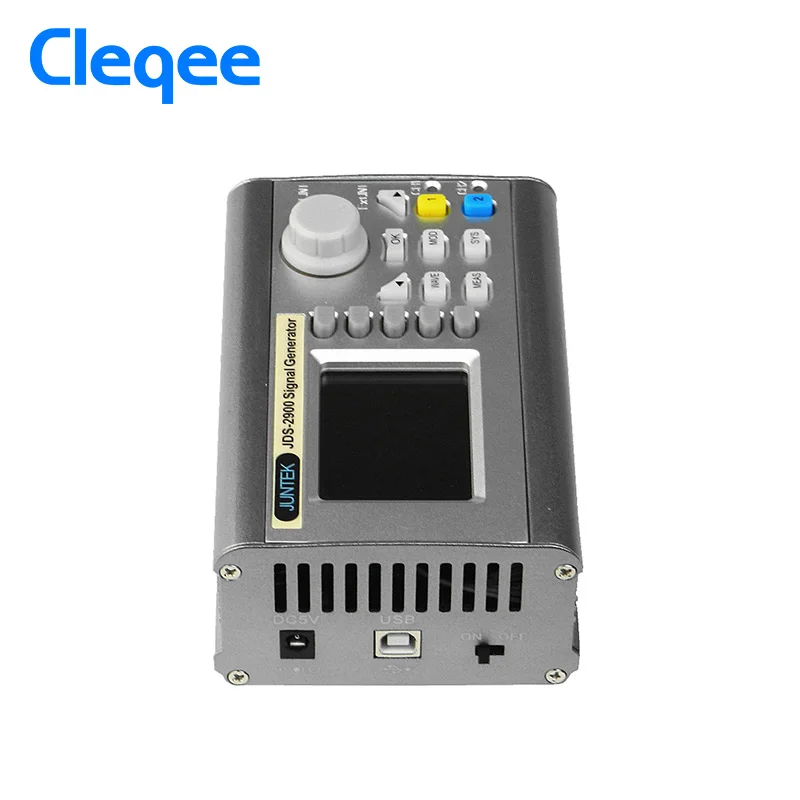

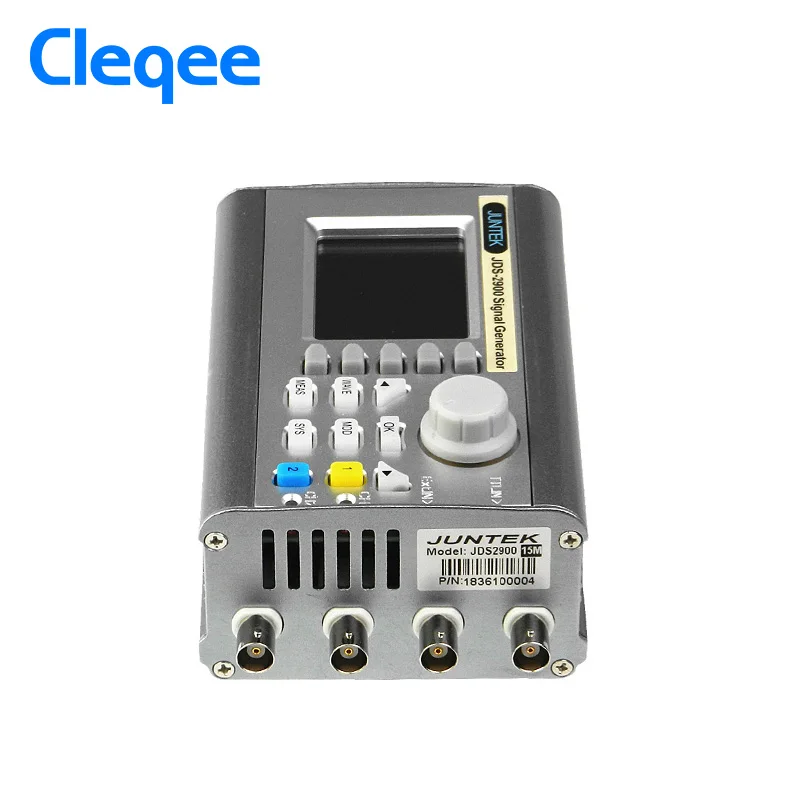

JDS2900 15MHz DDS Counter Digital Control Sine Frequency Dual-Channel for Electronic Enthusiasts Signal Generator

Specifications:
Model(Optional) JDS2900-15MHz/ 30MHz/ 40MHz/ 50MHz/ 60MHz
Sine Wave Frequency Range 0~15MHz 0~30MHz 0~40MHz 0~50MHz 0~60MHz
Square Wave Frequency Range 0~15MHz 0~25MHz 0~25MHz 0~25MHz 0~25MHz
Triangular Wave Frequency Range Pulse Wave Frequency Range 0~6MHz 0~6MHz 0~6MHz 0~6MHz 0~6MHz
TTL Digital Wave Frequency Range Arbitrary Wave Frequency Range Pulse Width Adjusting Range 100nS~4000S 50nS~4000S 40nS~4000S 30nS~4000S 25nS~4000S
Square Wave Rise Time ≤25ns ≤15ns ≤10ns ≤10ns ≤10ns
Frequency Minimum Resolution 0.01μHz(0.00000001Hz)
Accuracy of Frequency ±20ppm
Frequency Stability ±1ppm/3hours
Wave Length: 2048 points Waveform Sampling Rate 266MSa/s Waveform Vertical Resolution 14 Sine Wave Harmonic Suppression ≥45dBc(<1MHz); ≥40dBc(1MHz~20MHz) Total Harmonic Distortion <0.8%(20Hz~20kHz,0dBm)
Square Wave/Pulse Wave Overshoot ≤5%
Pulse Wave Duty Ratio Adjustment Range 0.1%~99.9%
Partial Sine Wave Duty Ratio Adjustment Range 0.1%~99.9%
Amplitude Flatness ±5%(<10MHz); ±10%(>10MHz)
Waveform Output Impedance 50Ω±10% (typical)
Plug Type: US plug, EU Plug (Optional)
Voltage: AC100-240V

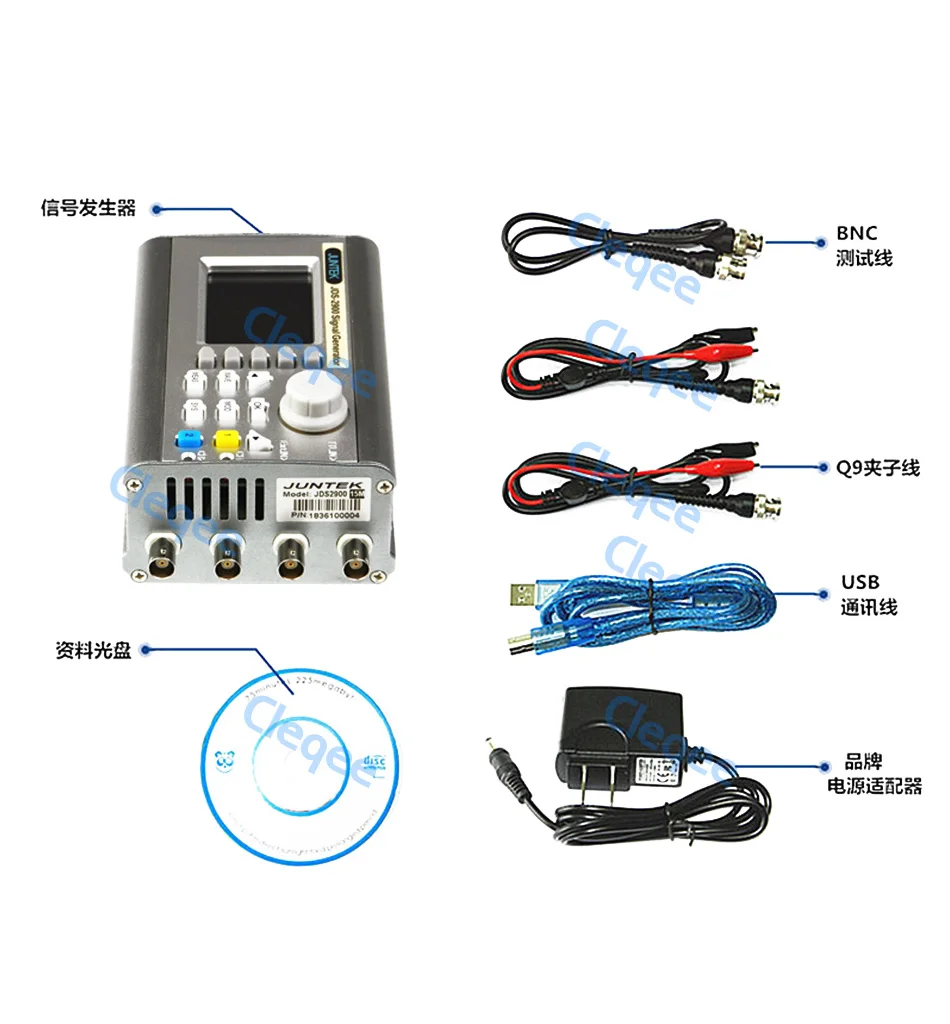

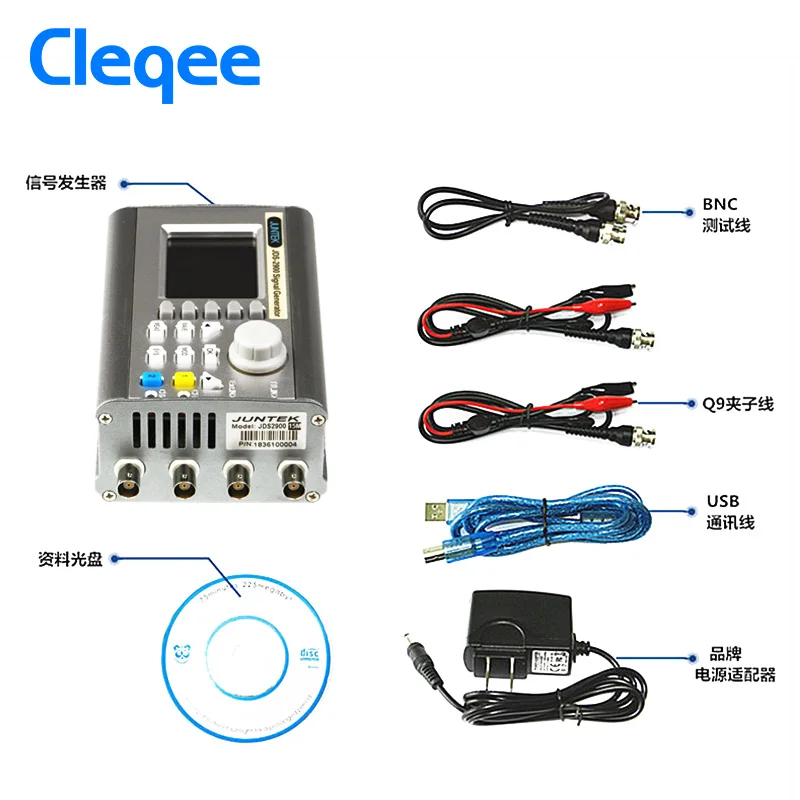

Package Includes:
1 x JDS2900 Dual-channel Signal Generator
1 x Power Adapter
1 x USB Cable
2 x Signal Connecting Cable
1 x English User Manual
1 x CD
1 x BNC Cable
