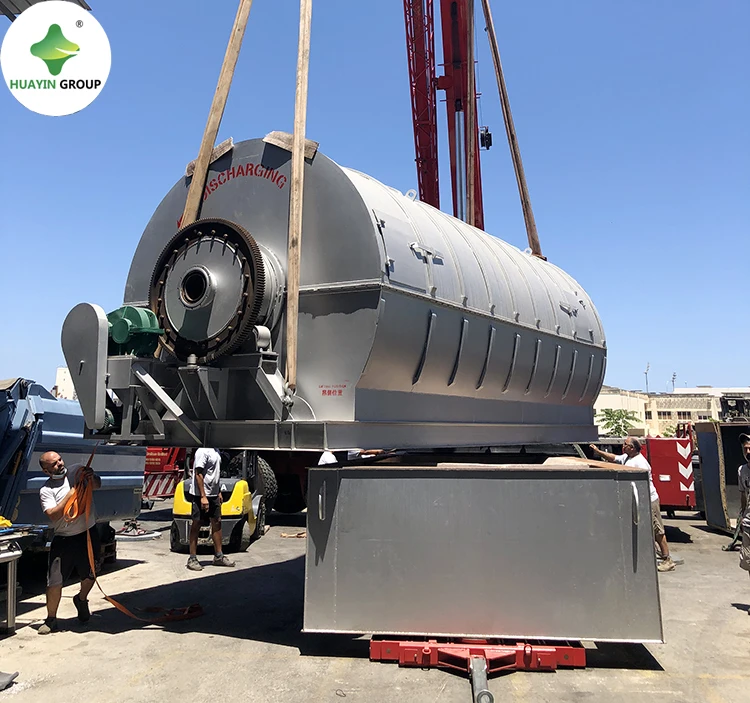

Recycling waste tire plastic to synthetic diesel fuel oil pyrolysis machine with installation
- Category: Other Rubber Processing Machinery >>>
- Seller: Xinxiang,Huayin,Renewable,Energy,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Portable waste tire plastic pyrolysis machine to synthetic diesel
Pyrolysis of plastic/tyre wastes is a well-known method to minimise the environmental effect. Pyrolysis of plastic/tires wastes can be described as a chemical process and thermal decomposition of organic components in an oxygen-free atmosphere to yield char, oil and gas. Pyrolysis of plastic is an endothermic process, so that it requires a supply of heat. The convectional plastic thermal decomposition has been established to operate in industrial scale around the world.
Operation process
Step 1: Feeding (2 hours). Feed tyres into reactor manually or with auto feeder;
Step 2: Preheating (2-4hours). Tyres gradually melts under high temperature and oil gas comes out;
Step 3: Oil producing peak (8-10 hours). Oil gas goes through the cooling system and is cooled down into liquid fuel oil; some oil gas that cannot be further cooled down into liquid fuel oil under common temperature and common pressure ("syngas") will be recycled to furnace for heating, saving your fuel;
Step 4: Cooling (4 hours). After the oil processing process is completed, leave the plant for cooling.
Step 5: Carbon black discharging (1-2 hours). Use a fully-sealed carbon black discharging system to discharge carbon black.
Step 6: Pulling out steel wire (0.5h).

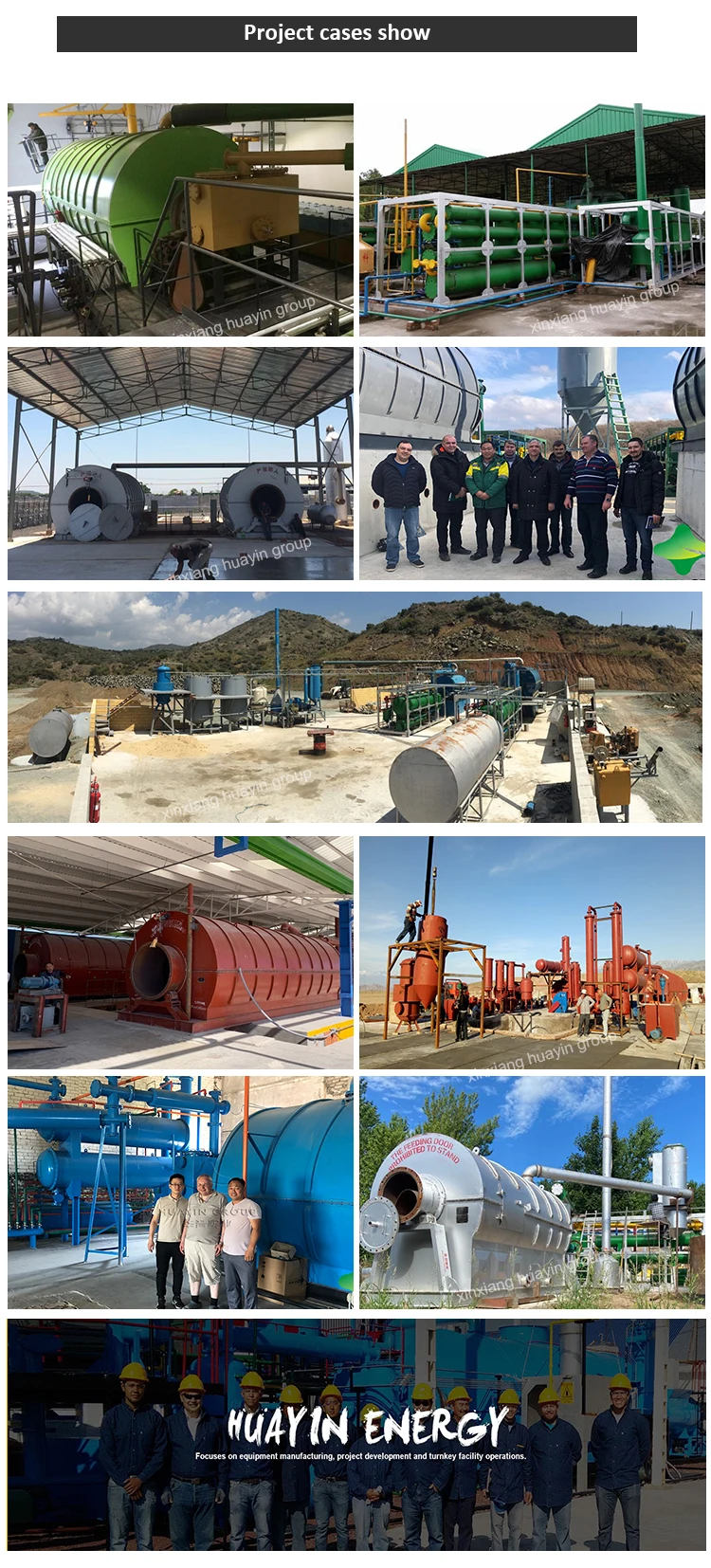

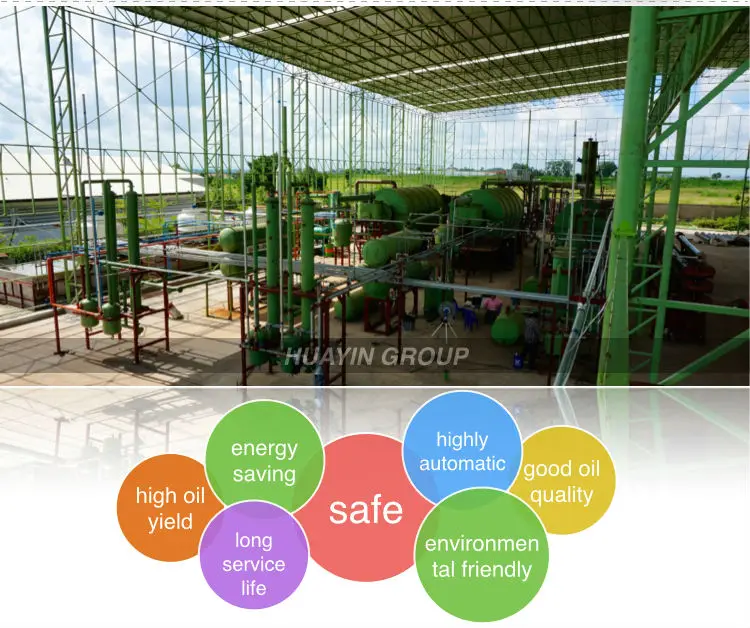

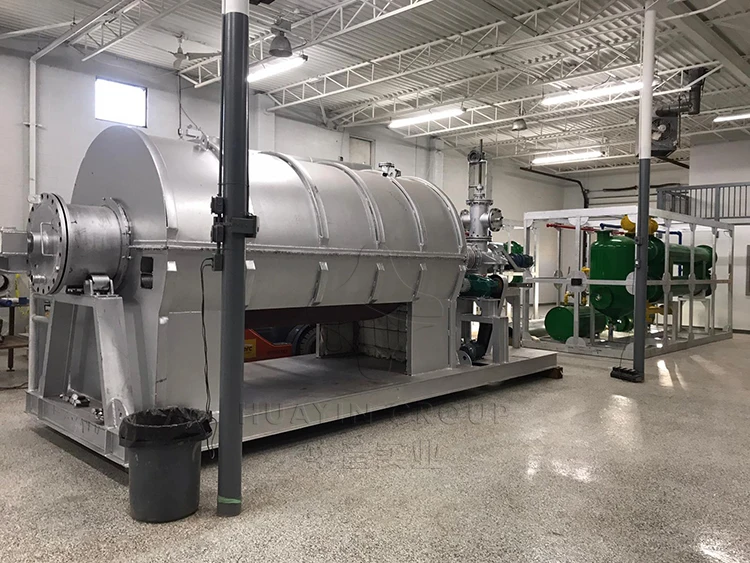

Cases
Main features of Portable waste tire plastic pyrolysis machine to synthetic diesel
HUAYIN pyrolysis technology
1) Industrial batch type,different capacity from 1ton to 15ton per batch.
2) Exclusive low temperature pyrolysis technology, low consumption, enhance oil yield and quality, ensure long term, continuous and steady operation of production , dramatically expand equipment' lifespan.
3) Exclusive anti-cocking, thermal distribution technology, enable the material equally heated and completely pyrolized to achieved high quality product.
4) Perfect hot seal technology, to ensure operation safe and reliable.
5) Gas purification and remaining heat recycling utilization technology, purified gas can be used for heating system as combustible gas, remaining heat can be dully utilized, realized self-supply for pyrolysis reaction without extra heating source, dramatically minimize running cost.
6) Exhaust gas of production line has been tested, all emission parameter meet the requirement of EU
7) Support PLC system ,warning, alarm and auto-correction function, insure operation under safety condition.
8) Low requirement for manpower, Low working intensity and clean production.
Our Services
We will send engineer to your place to provide technical service in guiding: Installation, Test running ,Worker training.
Besides ,Installation preparation manuals will be sent to you so that you can do relevant preparation work before our engineer arrives.
3D drawing, layout drawing and foundation drawing may be provided based on your land size and other specific requirements.
Technical parameter
| Item | Contents | |
| Input-Raw Materials | Waste tire/rubber/Medical waste/MSW | |
| By-products | Fuel oil, carbon black, steel wire, syngas | |
| Model | Reactor size | Capacity |
| HY2200*5500 | 5 Ton/Batch | |
| HY2200*7500 | 7 Ton/Batch | |
| HY2600*6600 | 8 Ton/Batch | |
| HY2800*6000 | 9 Ton/Batch | |
| HY2800*6600 | 10 Ton/Batch | |
| Reactor material | Q345R/Q245R/310S+Boiler plate/Stainless steel | |
| Thickness | 14mm/16mm/18mm | |
| Weight | 15T-35T | |
| Power | Average 15KW/h | |
| Space needed | 300-400 square meters (Width:10m, Length:30m-40m) | |
| Labor needed | 3-4 workers | |
| Density of oil | 0.89g/cm3 | |
| Combustion value | 44.30KJ/KG | |
| Note: | We supply customized mini plant: 10kg plant, 1ton plant for customer trial operation. | |

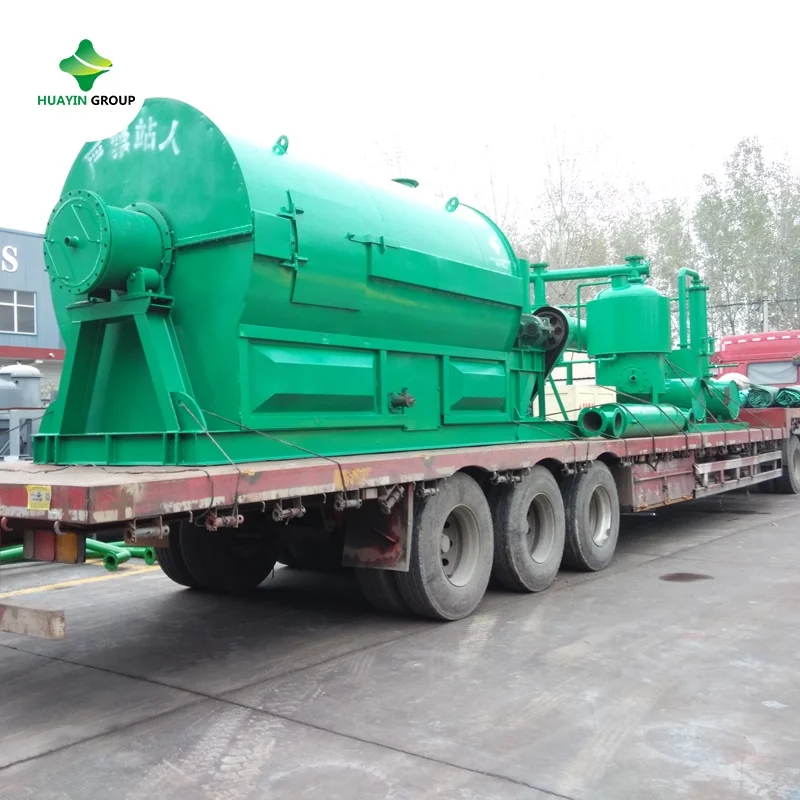

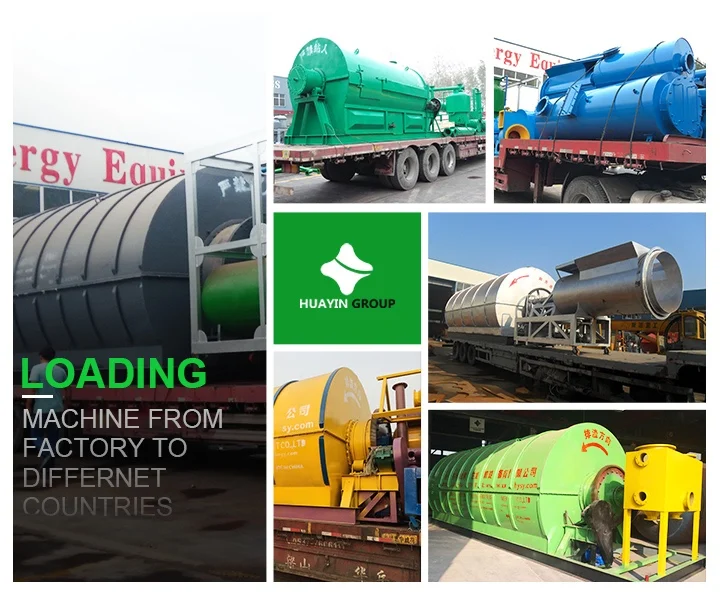

Packaging & Shipping
Packaging details | 1*40FR and 1*40HQ for 10 tons 2*40 HQ for 5 tons Weight: about 30tons All goods are packed with export standard package to make sure no damage during transportation. |
Detail details | about 25 days after receiving deposit. |
Certifications
Company Information

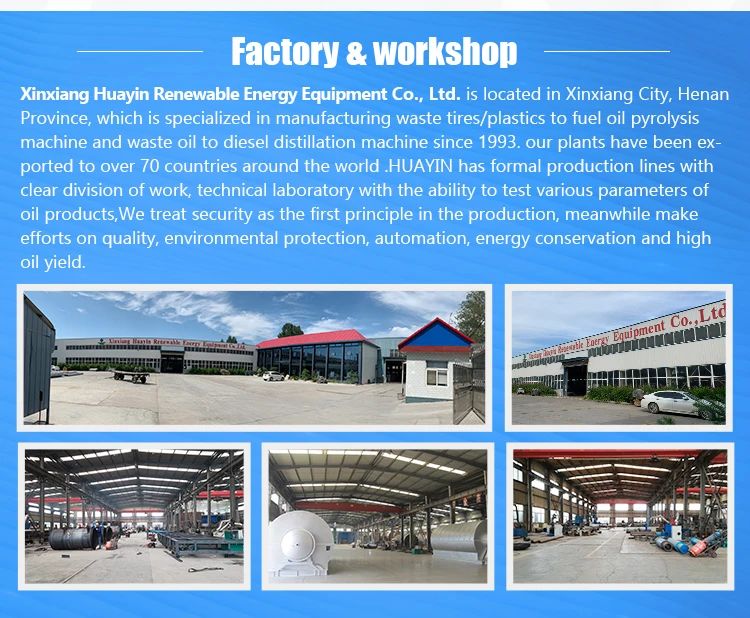

Xinxiang Huayin Renewable Energy Equipment Co., Ltd is located in Xinxiang City, Henan Province, which is specialized in manufacturing waste tires/plastics to fuel oil pyrolysis machine and waste oil to diesel distillation machine since 1993. we have We have more than 2000 square meters running demo plant for customers' visitation and learning. our plants have been exported to over 70 countries around the world .
