Product Description

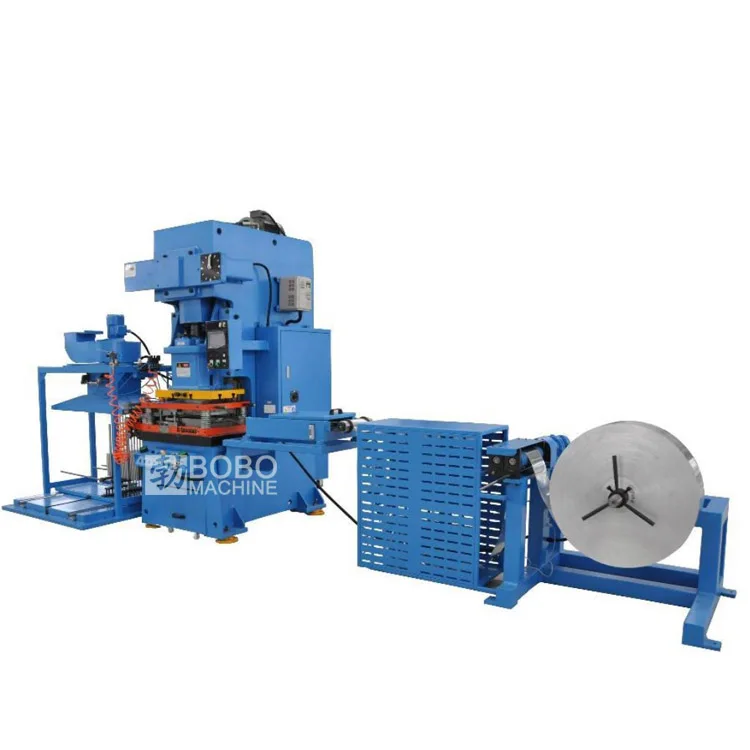

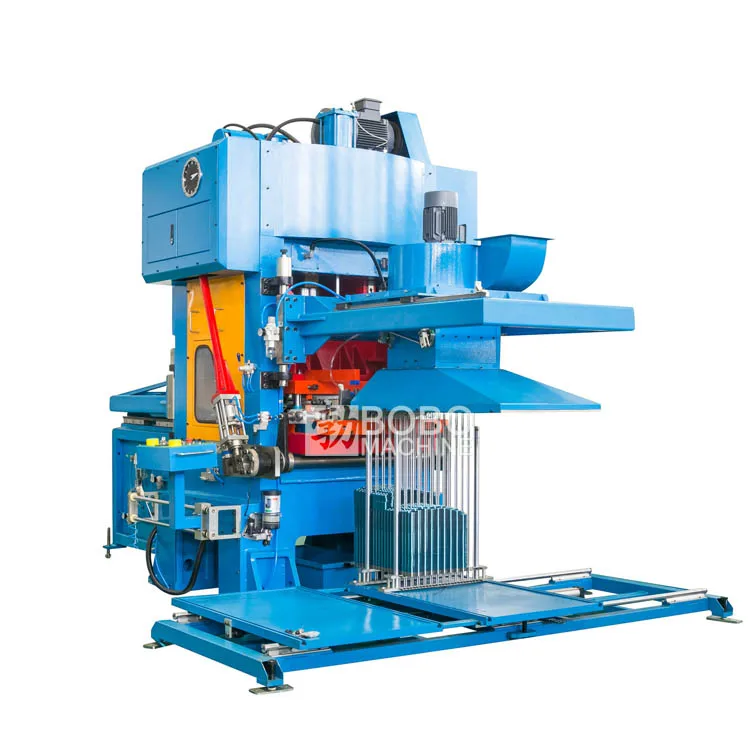

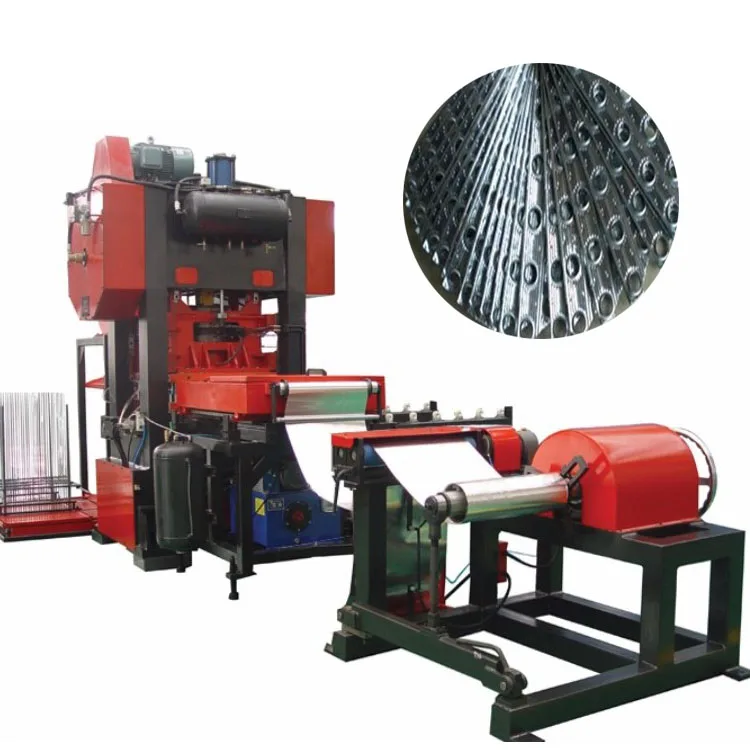

Heatsink fin punching machine
The heatsink fin punching machine is used for processing various thin metal plate parts with higher precision. It can automatically complete a variety of complex hole patterns and shallow stretch forming processing at one time. Specially shaped products of different sizes and different hole distances can be processed according to requirements, and special processing can be carried out, such as: blinds, shallow stretch, countersinking, flanged holes, ribs, embossing, etc
Feature
1.The fin punch is a special production line for fin production in the refrigeration industry. It consists of a closed
high-speed precision punch, discharge rack, oil tank, pull device (single and double jump), suction rack, collecting rack,
and electrical system. Pneumatic system and hydraulic system.
2.The host speed control adopts frequency conversion control.
3.The main engine has hydraulic lifting and hydraulic overload functions.
4. Adopt quick mold change device.
5.The use of man-machine interface, PLC and rotary encoder electric centralized control system to ensure the reliable
execution of various functions of the automatic production line.
high-speed precision punch, discharge rack, oil tank, pull device (single and double jump), suction rack, collecting rack,
and electrical system. Pneumatic system and hydraulic system.
2.The host speed control adopts frequency conversion control.
3.The main engine has hydraulic lifting and hydraulic overload functions.
4. Adopt quick mold change device.
5.The use of man-machine interface, PLC and rotary encoder electric centralized control system to ensure the reliable
execution of various functions of the automatic production line.
Specification
No | Parameter | Data |
1 | Nominal force | 630KN |
2 | Slider stroke | 40-60mm |
3 | Stamping times | 150-300spm |
4 | Lifting amount of minimum mold height | 80mm |
5 | Slider bottom plane size | 730×850mm |
6 | Plane size of worktable | 900×1300mm |
7 | Aggregate height | 720mm |
8 | Aggregate length | 1200/1500/2000mm |
9 | Maximum width of aluminum coil | 545mm |
10 | main motor power | 7.5kw |
11 | voltage | AC380V,50HZ |
Details Images

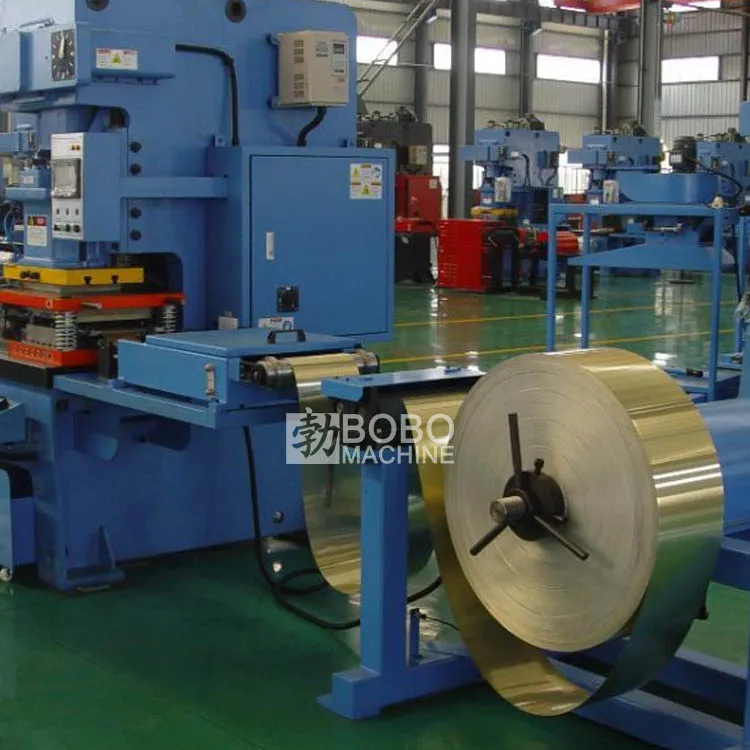

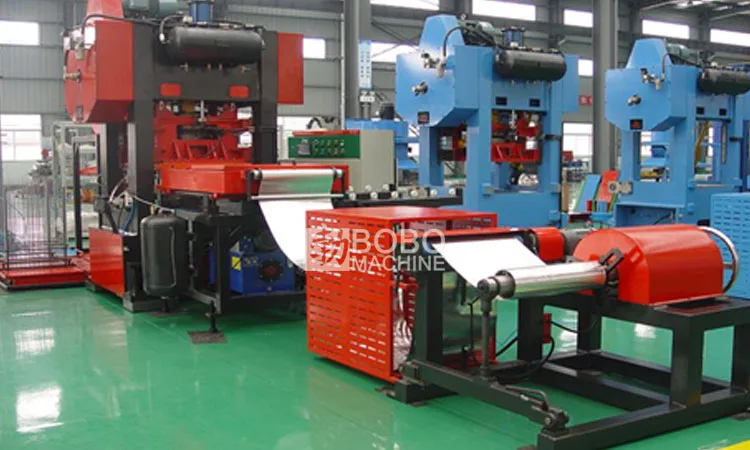

Equipment composition
2.oil passing device
3.pneumatic initial feeding
4.closed high-speed precision press
5.suction device
6.collecting device
7.electrical control system
8.pneumatic system
9.hydraulic system
Product packaging
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like
to have seamless cooperation with your forwarder at your convenience.
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like
to have seamless cooperation with your forwarder at your convenience.
Company Profile
FAQ
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
