Шасси длинный член ЧПУ гидравлическая плита пробивая машина автомобиль грузовик
- Категория товара: Punching Machines >>>
- Поставщик (Оптовый магазин): Shandong,Fin,Cnc,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
NO. | NAME | SPECIFICATIONS | ||||||||
1 | Workpiece | Workpiece dimension | Length： 4000～12000mm | |||||||
Width： 250～550mm | ||||||||||
Thickness： 4～12mm | ||||||||||
weight：≤600kg | ||||||||||
Range of punch diameter：φ9～φ60mm | ||||||||||
Precision between holes | X≤±0.15mm/400mm；X≤±0.30mm/3000mm； | |||||||||
Working Precision | X≤±0.50mm/12000mm | |||||||||
Y≤±0.20mm/550mm | ||||||||||

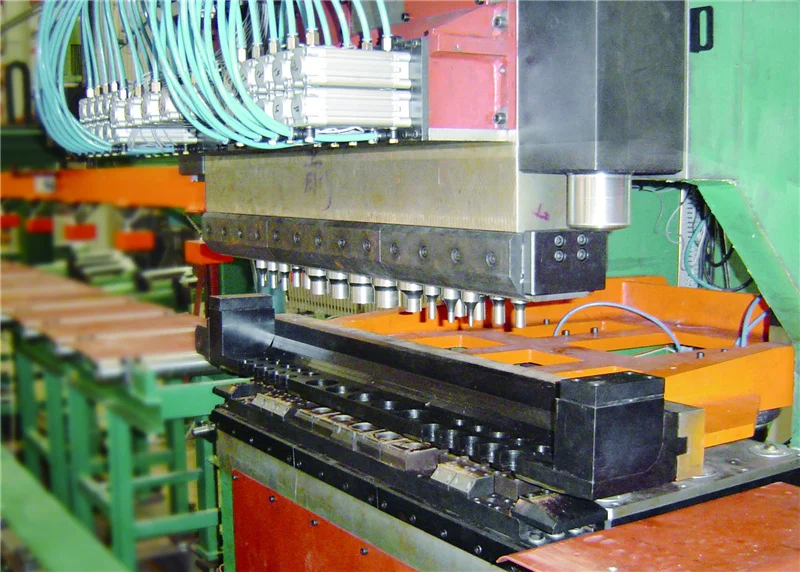

2 | CNC punch machine (Y axis) | Nominal Pressure | 1200kN | |||||||
Quantity of punch die | 25 | |||||||||
Y axis travel | about 630mm | |||||||||
Y axis max. speed | 30m/min | |||||||||
Servo motor power | 11kW | |||||||||
Block travel | 180mm | |||||||||
3 | Magnetic loading unit | Level moving travel | about 1800mm | |||||||
Vertical moving travel | About 500mm | |||||||||
Level motor power | 0.75kW | |||||||||
Vertical motor power | 2.2kW | |||||||||
Magnetic quantity | 10 pcs | |||||||||
4 | Magnetic unloading unit | Ditto magnetic loading unit | ||||||||

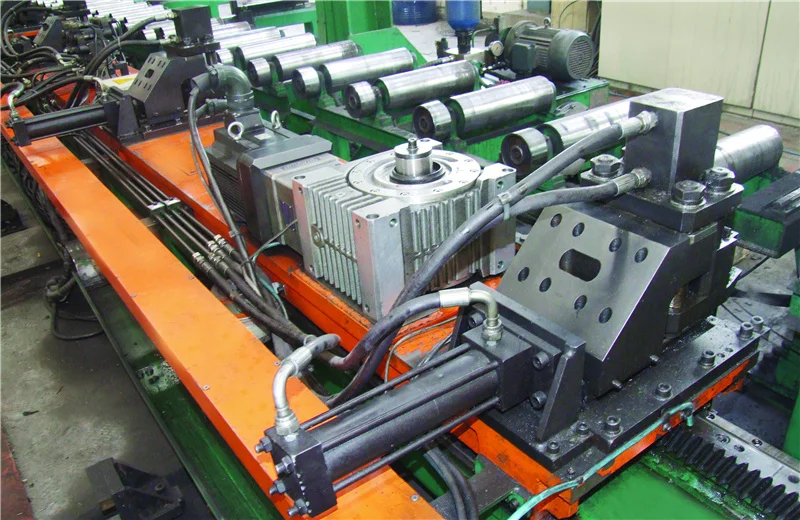

5 | CNC feeding unit(X axis) | X axis travel | About 14400mm | |||||||
X axis max. speed | 40m/min | |||||||||
Servo motor power | 5.5kW | |||||||||
Hydraulic clamping quantity | 7 pcs | |||||||||
Clamping force | 20kN | |||||||||
Clamp opening travel | 50mm | |||||||||
程 | Abour 165mm | |||||||||
Clamp expansion travel | ||||||||||

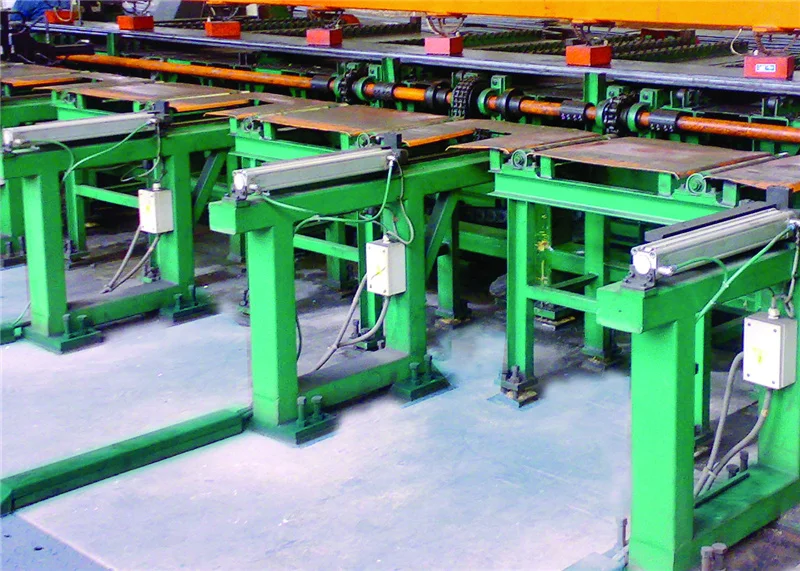

6 | Feeding conveyor | Feeding height | 800mm | |||||||
Into feeding length | ≤13000mm | |||||||||
Out feeding length | ≤13000mm | |||||||||
7 | Pusher unit | Quantity | 6 group | |||||||
Travel | about 450mm | |||||||||
Push | 900N/ group | |||||||||
8 | Chip | Speed | 2m/min | |||||||
conveyor | about0.4kW | |||||||||
Motor power | ||||||||||

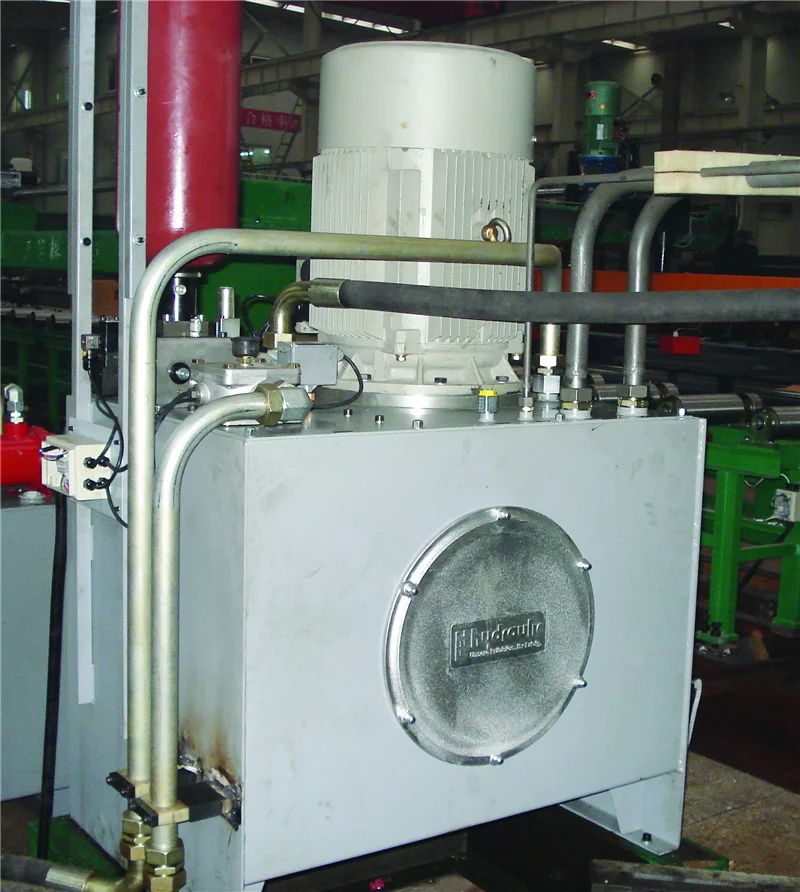

9 | hydraulic system | Main hydraulic station presssure | 24MPa | |||||||
Oil volume | 550L | |||||||||
Motor power | 37kW | |||||||||
Cooling type | Oil cooling (12kW) | |||||||||
Small hydraulic station pressure | 7MPa | |||||||||
Small oil box volume | 160L | |||||||||
Motor power | 4kW | |||||||||
10 | Loading carriage | Speed | 4m/min | |||||||
Motor power | 2×1.5kW | |||||||||
11 | Ditto loading carriage | |||||||||
Unloading carriage | ||||||||||
12 | System pressure | 0.45MPa | ||||||||
Pneumatic system | Max. gas consumption | About 100L/min | ||||||||
13 | electrical system | Three phase | ||||||||
Power supply | ||||||||||
voltage | 380V±10%V | |||||||||
frequency | 50±1Hz | |||||||||
Total power | about 85kW | |||||||||

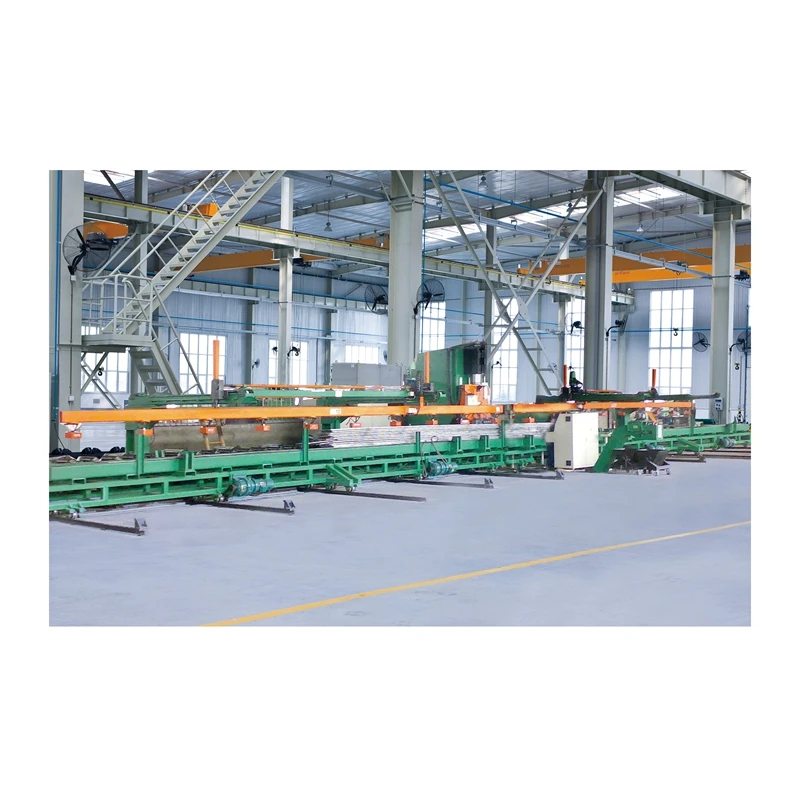

14 | Production line | Length x width x height | about 27000×8500×3400mm | |||||||
Total weight | about 44000kg | |||||||||
Company Profile
Shandong FIN C N C MACHINE CO., LTD is located in Jinan high tech Development Zone, is committed to the development, research, design, manufacture, sales of CNC machine tools, such as processing angle bar, beam channel profiles, steel plates, tubesheet and flanges and other integrated equipment professional company. It is mainly used in iron tower, steel structure, heat exchanger, boiler, bridge, truck and other industries
Strong R & D center with 30 engineers team, 20 years of experience from year 2001, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine.
FIN C N C machines exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: C N C Angle Line, C N C Beam Drilling Sawing Machine, C N C Plate Drilling Machine, C N C Rail Processing Machine, C N C Tubesheet Flange Drilling Machine, Truck beam plate punching machine.
One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines’ perfect quality and reliable performance.
The company drafted many China national standards for C N C angle line machine and C N C beam drilling sawing machine and C N C plate drilling machine.
Strong R & D center with 30 engineers team, 20 years of experience from year 2001, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine.
FIN C N C machines exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: C N C Angle Line, C N C Beam Drilling Sawing Machine, C N C Plate Drilling Machine, C N C Rail Processing Machine, C N C Tubesheet Flange Drilling Machine, Truck beam plate punching machine.
One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines’ perfect quality and reliable performance.
The company drafted many China national standards for C N C angle line machine and C N C beam drilling sawing machine and C N C plate drilling machine.
Production Workshop
1. We have a professional research and development team
2. The machine is widely used in the industry.
3. The performance and quality of the machine are reliable.
4. It has been exported to more than 50 countries in the world.
2. The machine is widely used in the industry.
3. The performance and quality of the machine are reliable.
4. It has been exported to more than 50 countries in the world.
Certifications
Exhibition & Customer
Packaging Logistics
Our Service
FAQ
