Product Overview

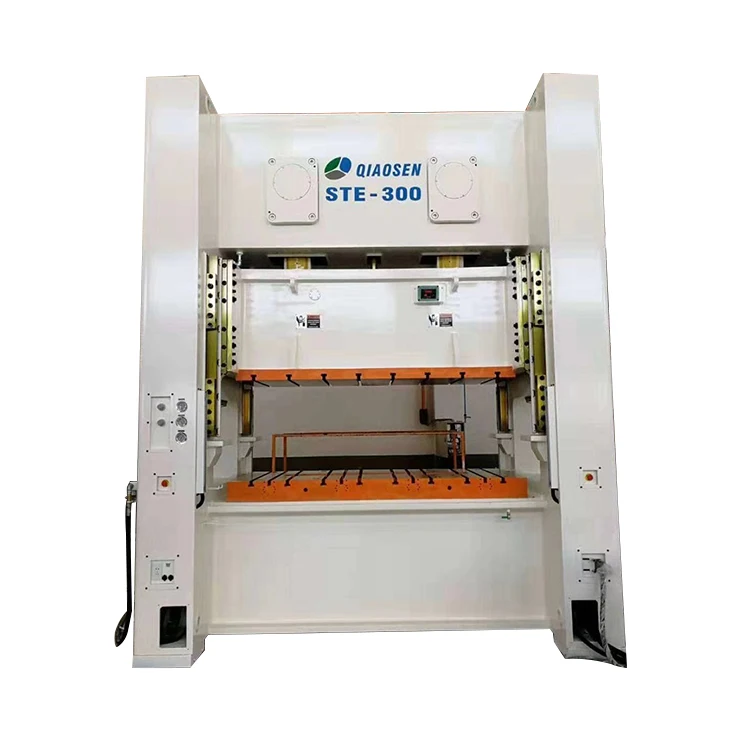

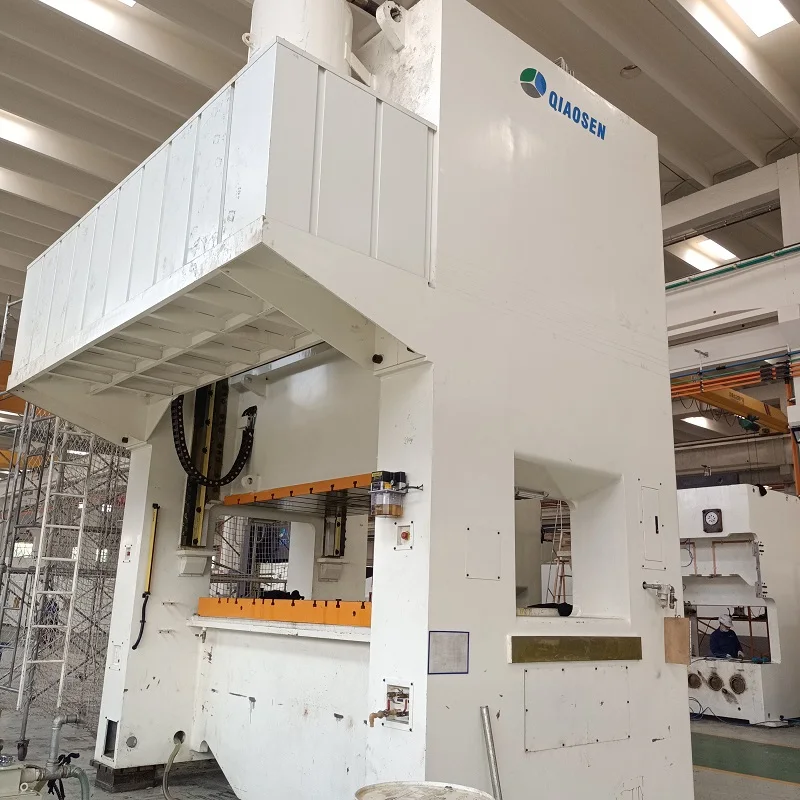

STE-300ton S type punching machine
This is 300ton closed double point crank punching machine, meet Japanese JIS 1 class standard--Safety, Engery saving, Stable, Automation, High precision.
performance features

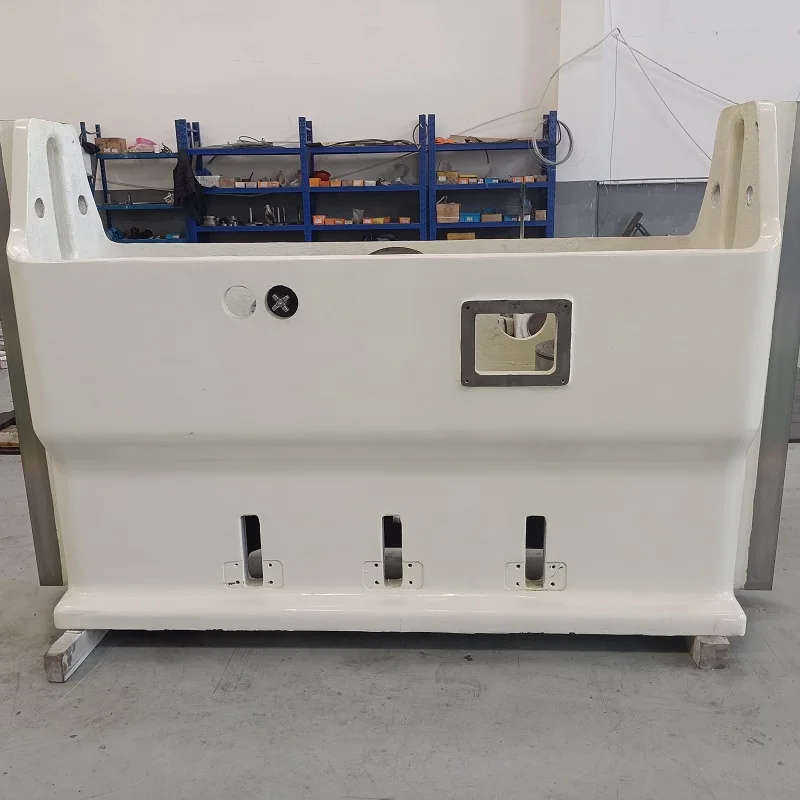

1. The high-strength fuselage structure has small deformation and high precision.
2.Pneumatic wet clutch brake (integrated):environmentally friendly,non-polluting ,low noise and long service life.

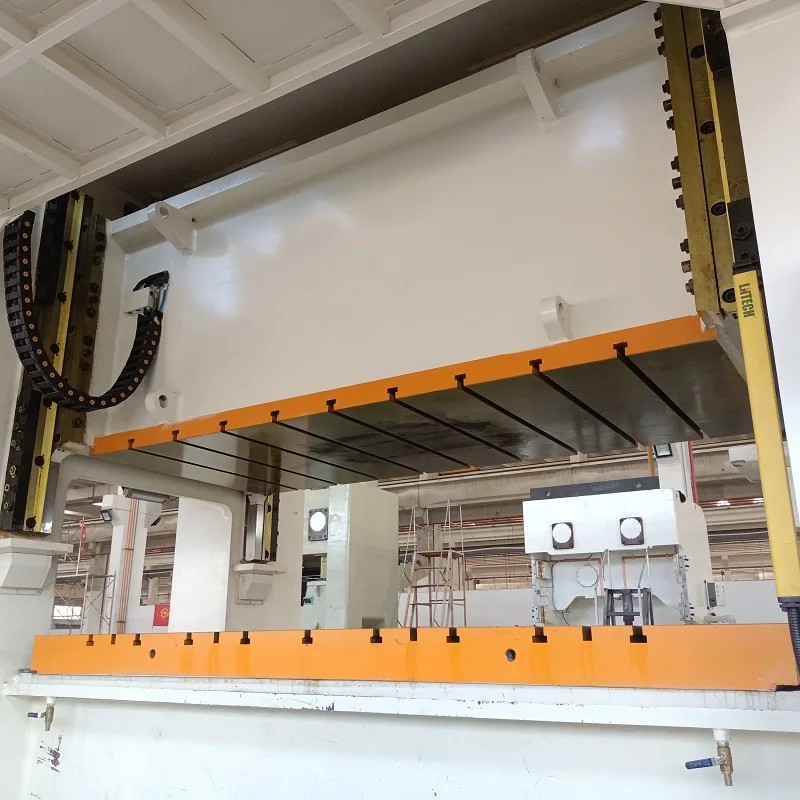

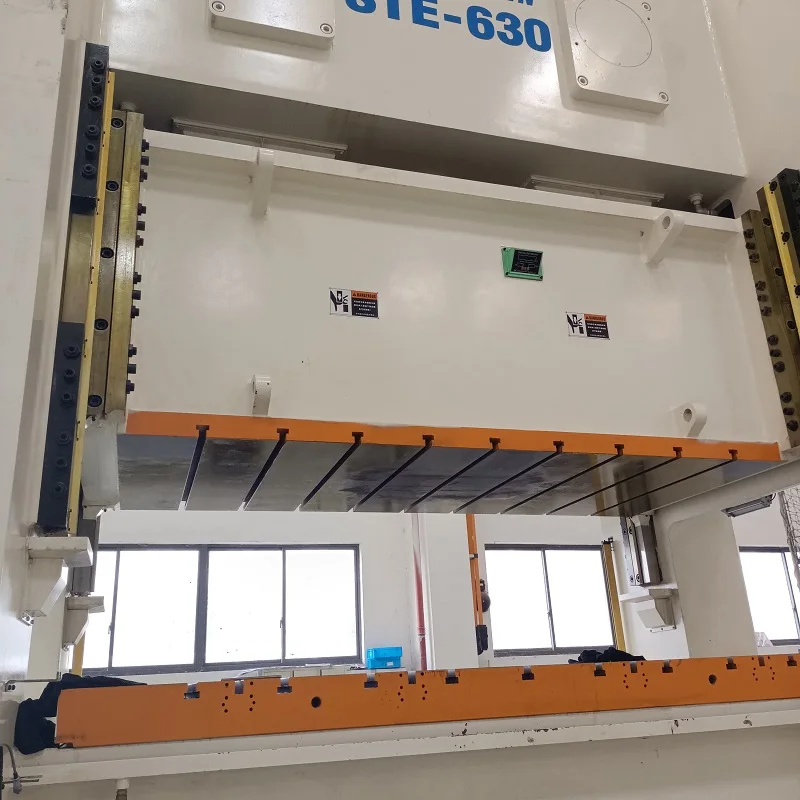

3.The slider adopts four-corner and eight-sided guides to carry large eccentric loads ,ensuring long-term and stable maintenance of stamping accuracy.

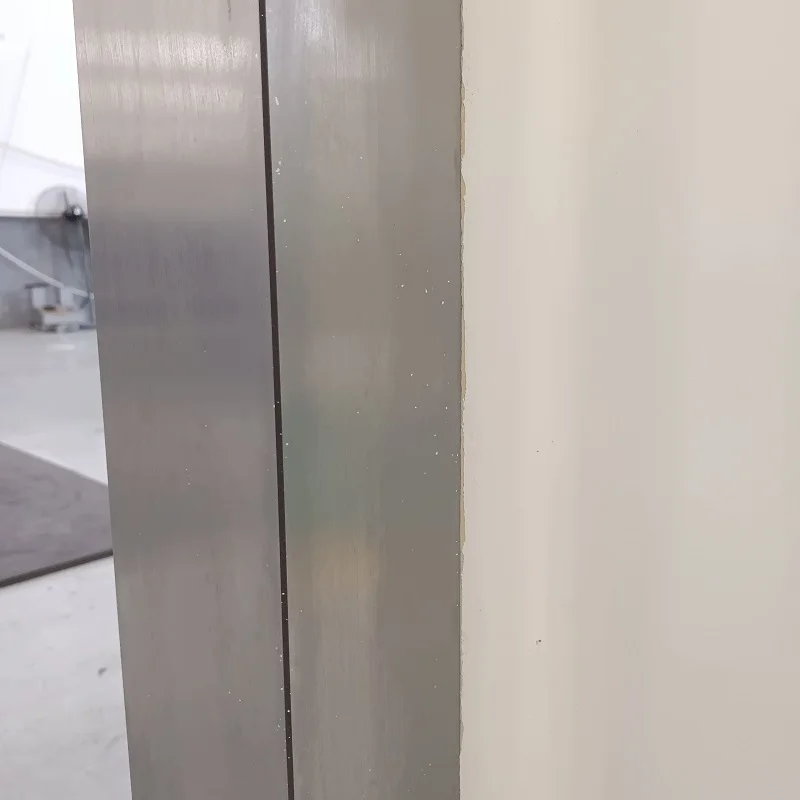

4.The slider guide adopts"high-frequency quenching" and "rail grinding process",which has small wear, high precision,long precision maintenance time and improve die life.
5.The use of forced thin oil circulation lubrication device:energy saving,environmental protection,with automatic alarm function,can increase the number of punching by adjusting the amount of oil.
6. The crankshaft is made of high strength alloy 42CrMo, which is 1.3 times stronger than 45 steel and has a longer service life.

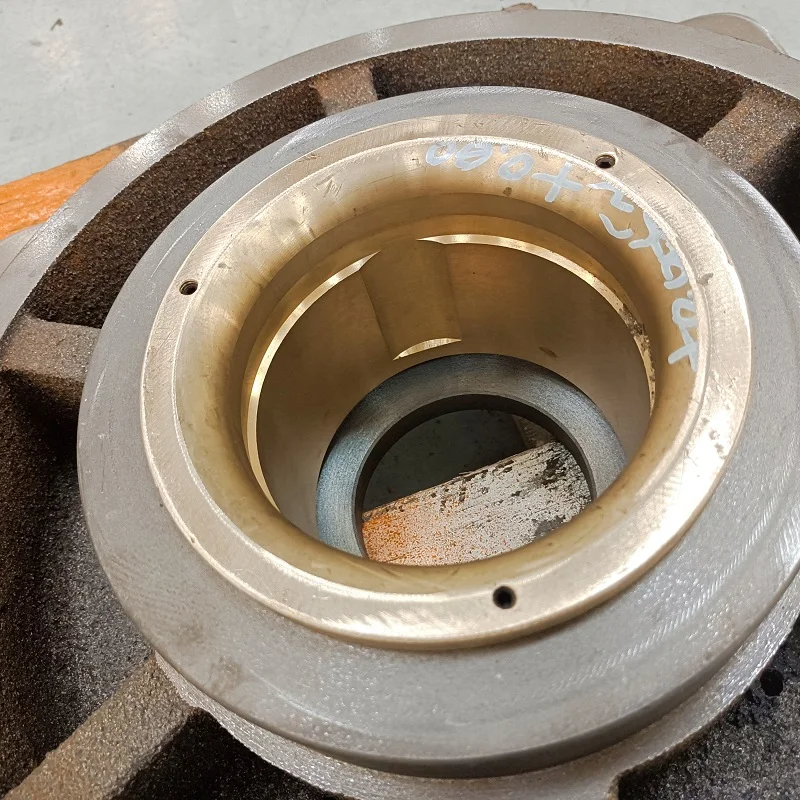

7. The copper sleeve is made of tin phosphor bronze ZQSn10-1,which is 1.5 times stronger than ordinary BC6 brass. It adopts high-sensitivity hydraulic overload protection device,which can effectively protect the service life of punch and die.
8.Standard Japanese SMC pressure regulator,oil mister,air filter.

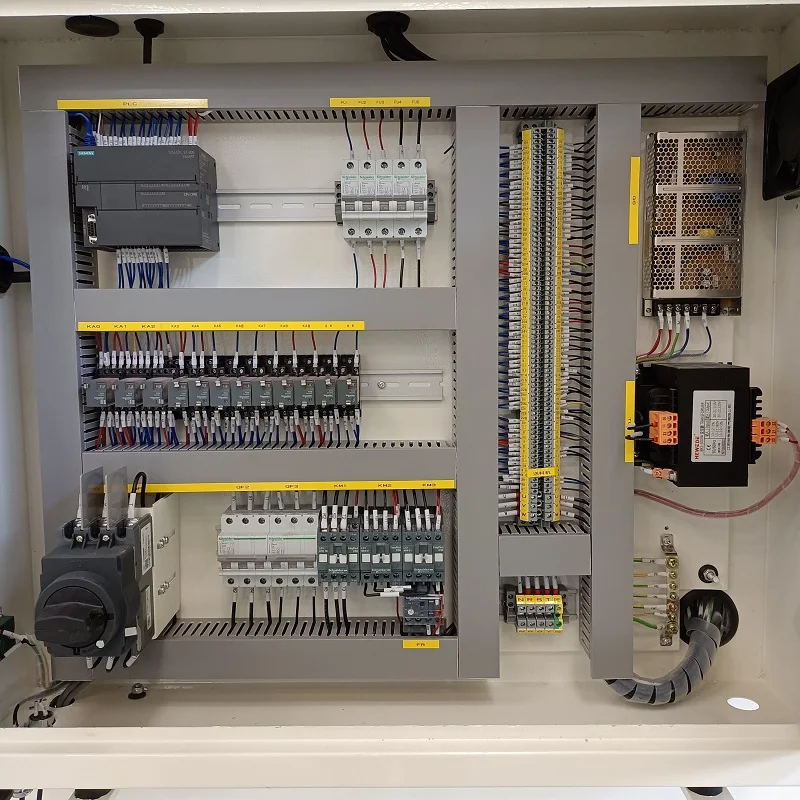

9. Standard touch screen,Siemens motor.
10.Optional mat(air cushion)
2.Pneumatic wet clutch brake (integrated):environmentally friendly,non-polluting ,low noise and long service life.
3.The slider adopts four-corner and eight-sided guides to carry large eccentric loads ,ensuring long-term and stable maintenance of stamping accuracy.
4.The slider guide adopts"high-frequency quenching" and "rail grinding process",which has small wear, high precision,long precision maintenance time and improve die life.
5.The use of forced thin oil circulation lubrication device:energy saving,environmental protection,with automatic alarm function,can increase the number of punching by adjusting the amount of oil.
6. The crankshaft is made of high strength alloy 42CrMo, which is 1.3 times stronger than 45 steel and has a longer service life.
7. The copper sleeve is made of tin phosphor bronze ZQSn10-1,which is 1.5 times stronger than ordinary BC6 brass. It adopts high-sensitivity hydraulic overload protection device,which can effectively protect the service life of punch and die.
8.Standard Japanese SMC pressure regulator,oil mister,air filter.
9. Standard touch screen,Siemens motor.
10.Optional mat(air cushion)
No | Item | Unit | STE-300 | ||
Mode | S type | H type | |||
1 | punching capability | ton | 300 | ||
2 | Impact force location | mm | 7 | 3 | |
3 | Long slider length | mm | 300 | 180 | |
4 | Slider stokes per minute | SPM | 20-40 | 30-60 | |
5 | Maximum mode height | mm | 550 | 450 | |
6 | Slider adjustment amount | mm | 120 | ||
7 | Up platform area | mm | 2100*900 | ||
8 | Down platform area | mm | 2500*1000 | ||
9 | Platform to floor distance | mm | 1350 | ||
10 | Side opening | mm | 900*650 | ||
11 | Main motor power | kw*p | 30*4 | ||
12 | Slider adjustment device | kw*p | 2*4 | ||
13 | Air pressure | kg/cm^2 | 6 | ||
14 | Punch accuracy grade | JIS 1 | |||

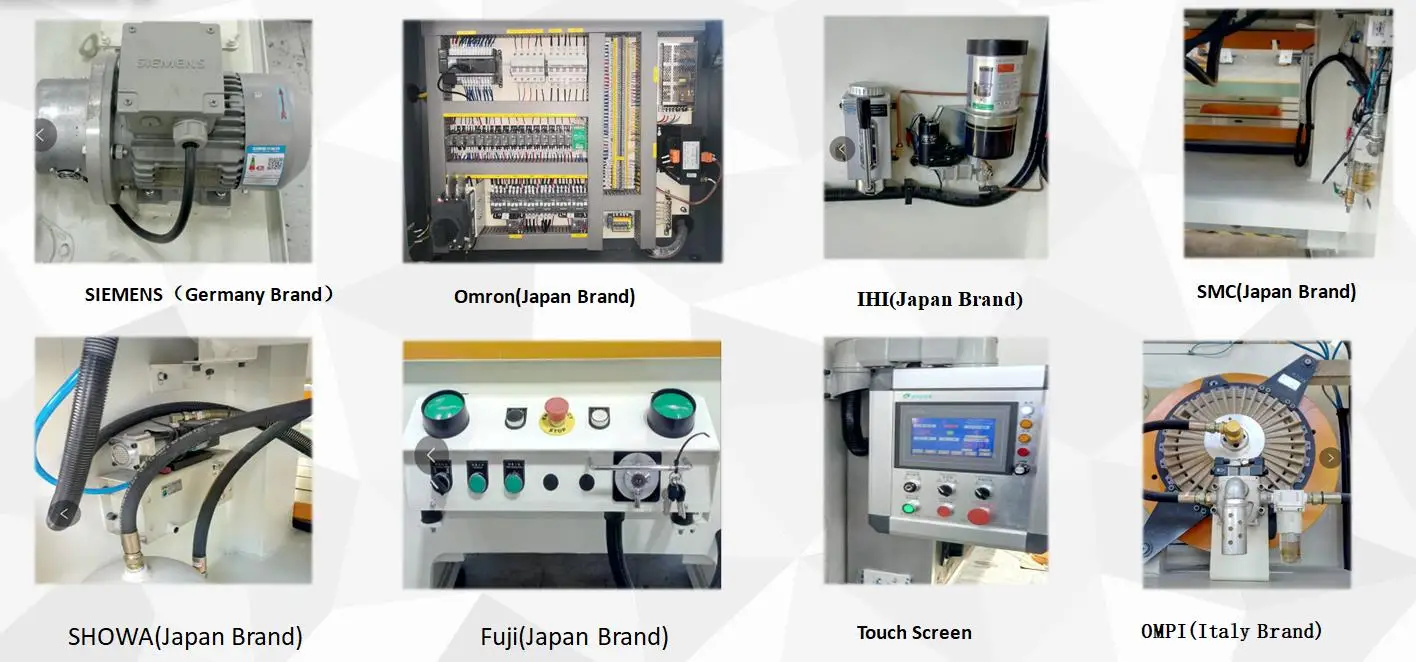

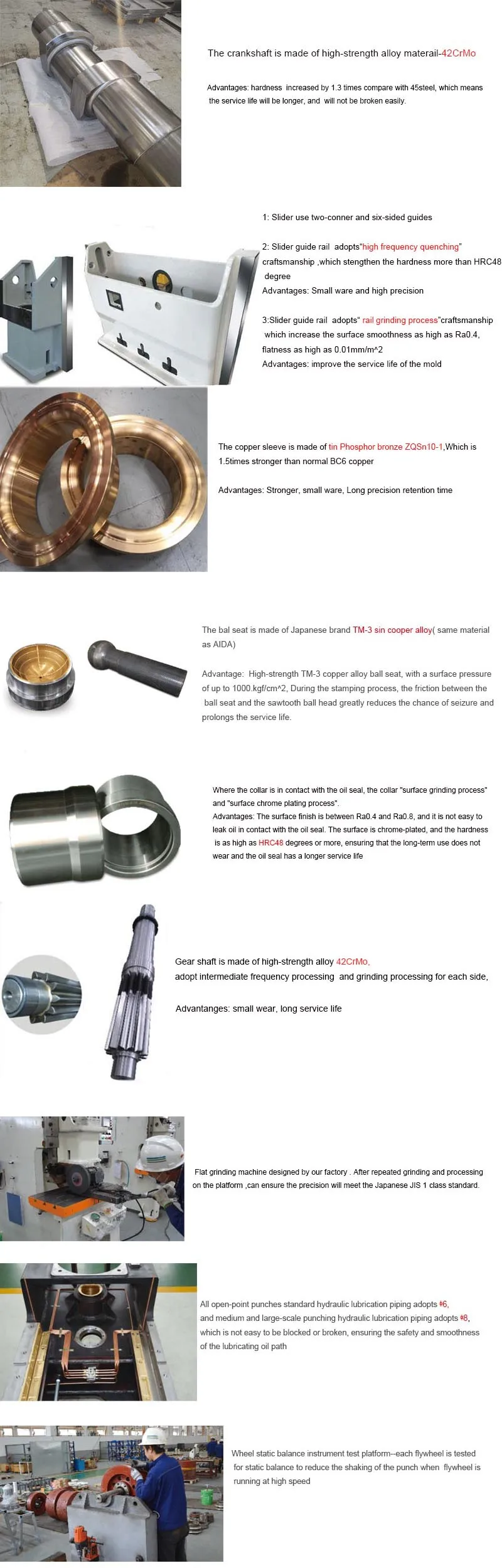

PRODUCT CONFIGURATION
SIMILAR PRODUCTS

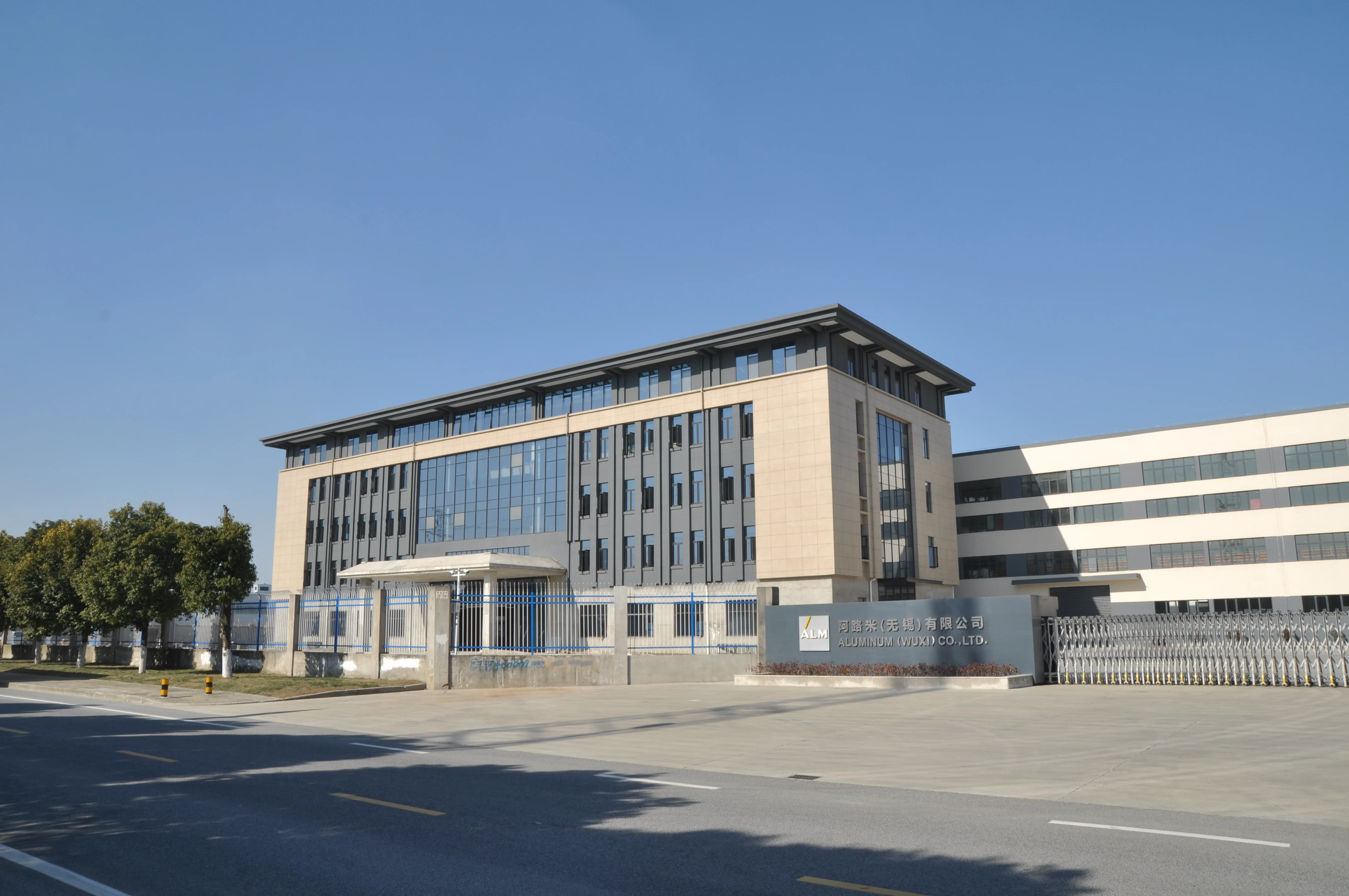

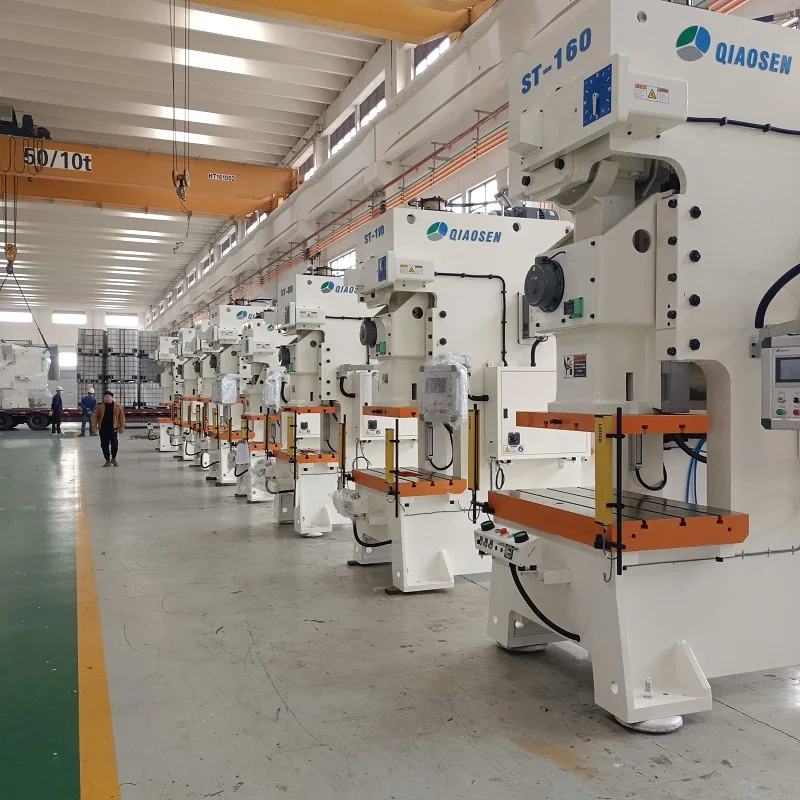

Company Profile
Customer Case
French customer
Malaysia customer case
Warranty And Service
1. One year warranty for whole pressmachine.
2. All spare parts are available as most of the parts produced by our factory.
3. It is easy to get the electric parts as all are international famous brands.
4. We can provide technical training and consulting via email, phone or video.
5. We can send out engineers for service, installation or training with reasonable additional cost.
6. English operation and maintenance manual is provided with the press.
7. Certificate of conformity will be sent with press
2. All spare parts are available as most of the parts produced by our factory.
3. It is easy to get the electric parts as all are international famous brands.
4. We can provide technical training and consulting via email, phone or video.
5. We can send out engineers for service, installation or training with reasonable additional cost.
6. English operation and maintenance manual is provided with the press.
7. Certificate of conformity will be sent with press
FAQ
who are we?
A: Our factory is located in Wuxi, China with a branch company in Dongguan , start from 2016 sell to Southeast Asia(50.00%), Mid East(30.00%), Africa(10.00%),South Asia(5.00%),Northern Europe(4.00%),Eastern Europe(1.00%). There are total about 51-100 people in our office.
why select us?
A: We are high end quality punching machine manufacturer and we promise customers will never regret if they choose our brand.
How about your delivery time?
A: Usually it takes about 25 to 40 working days after receiving your advance payment.
Do you provide after-sale service?
A: Our technical and quality team will support you any time if you need us.
Can i do different color machine?
A: Yes, we can customize your own colors to match your production line
Can the touch screen board language change to others
A: Yes, we can do it according to your requirement like Spanish, French ect...
A: Our factory is located in Wuxi, China with a branch company in Dongguan , start from 2016 sell to Southeast Asia(50.00%), Mid East(30.00%), Africa(10.00%),South Asia(5.00%),Northern Europe(4.00%),Eastern Europe(1.00%). There are total about 51-100 people in our office.
why select us?
A: We are high end quality punching machine manufacturer and we promise customers will never regret if they choose our brand.
How about your delivery time?
A: Usually it takes about 25 to 40 working days after receiving your advance payment.
Do you provide after-sale service?
A: Our technical and quality team will support you any time if you need us.
Can i do different color machine?
A: Yes, we can customize your own colors to match your production line
Can the touch screen board language change to others
A: Yes, we can do it according to your requirement like Spanish, French ect...
