Product Description
High Quality Economical Jewelry Pressurized Vacuum Casting Machine For Precious Metal Jewelry
Jewelry Vacuum Casting Machine is customized made to melt and cast 1-6 kg of jewellery gold, silver and other precious metals. Precious metal is melted and cast in an argon-protected atmosphere under vacuum to protect your precious jewelry from oxidation,It achieves high density, high compactness, almost no air bubbles, and basically achieves non-shrinkage cavity casting. Any precise jewellery and metal artwork can be perfectly done with the CDOCAST Jewelry Casting Machine. We also offer year-round warranty and worldwide on-site training services.

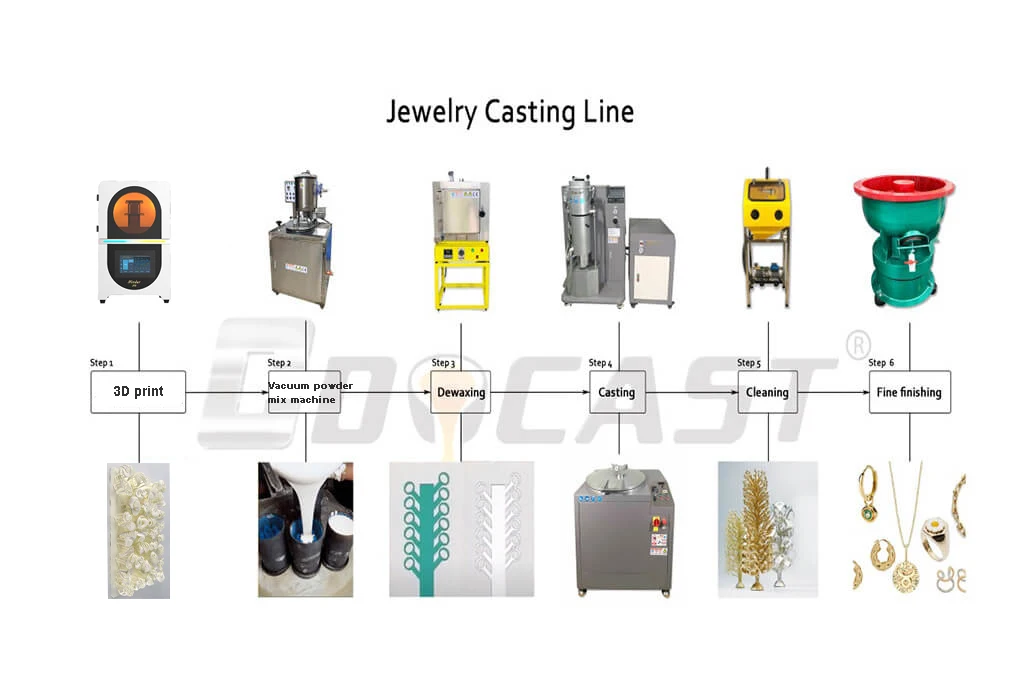

CDOCAST can provide a turn-key set of jewelry casting solutions, including wax injection machine, wax lost heating oven, jewelry vacuum casting machine &washing machine ..etc. If you want to cast your own designed jewelry, please send us an inquiry, our experts will give you Professional design solutions within 24 hrs.

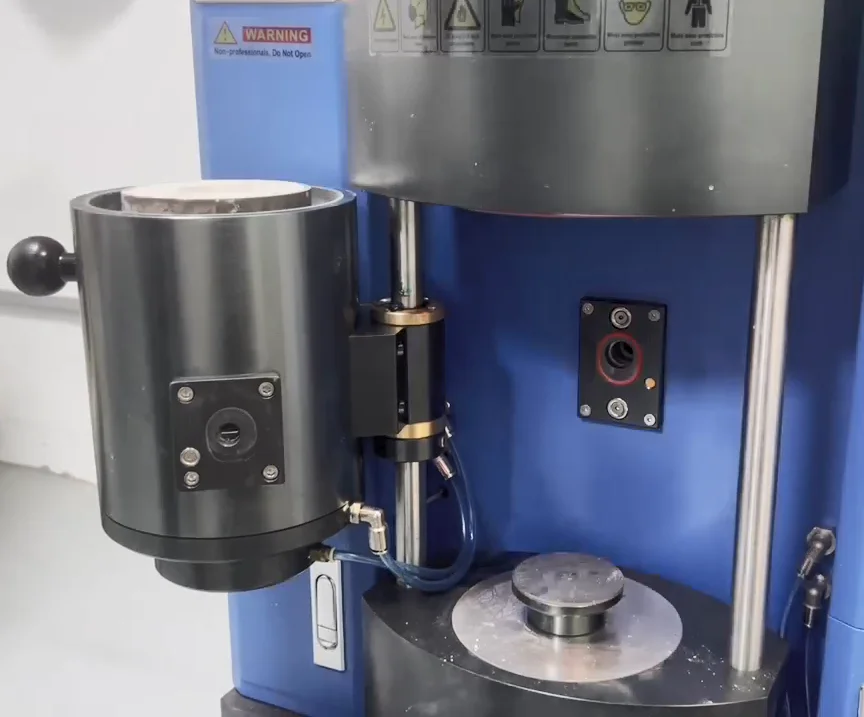

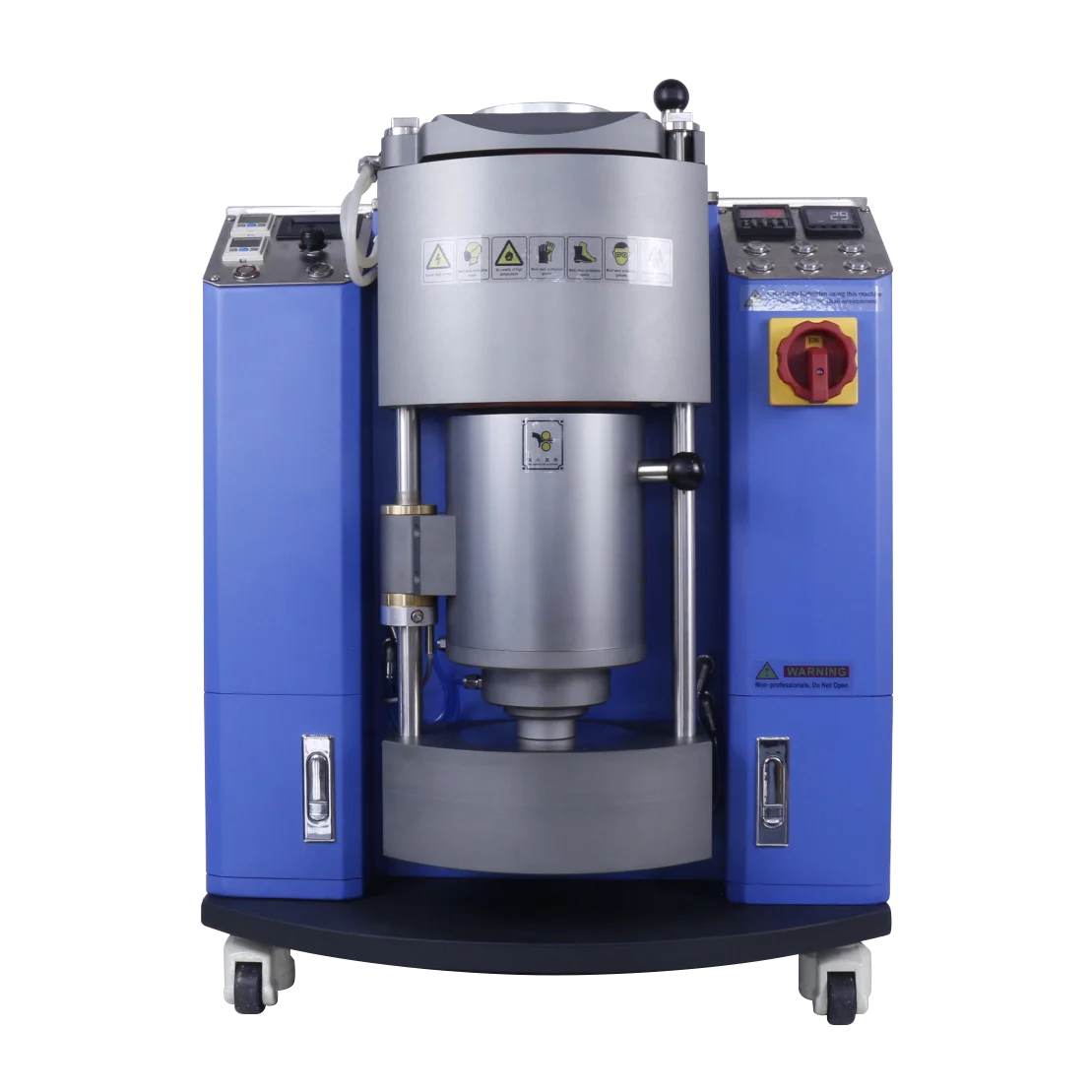

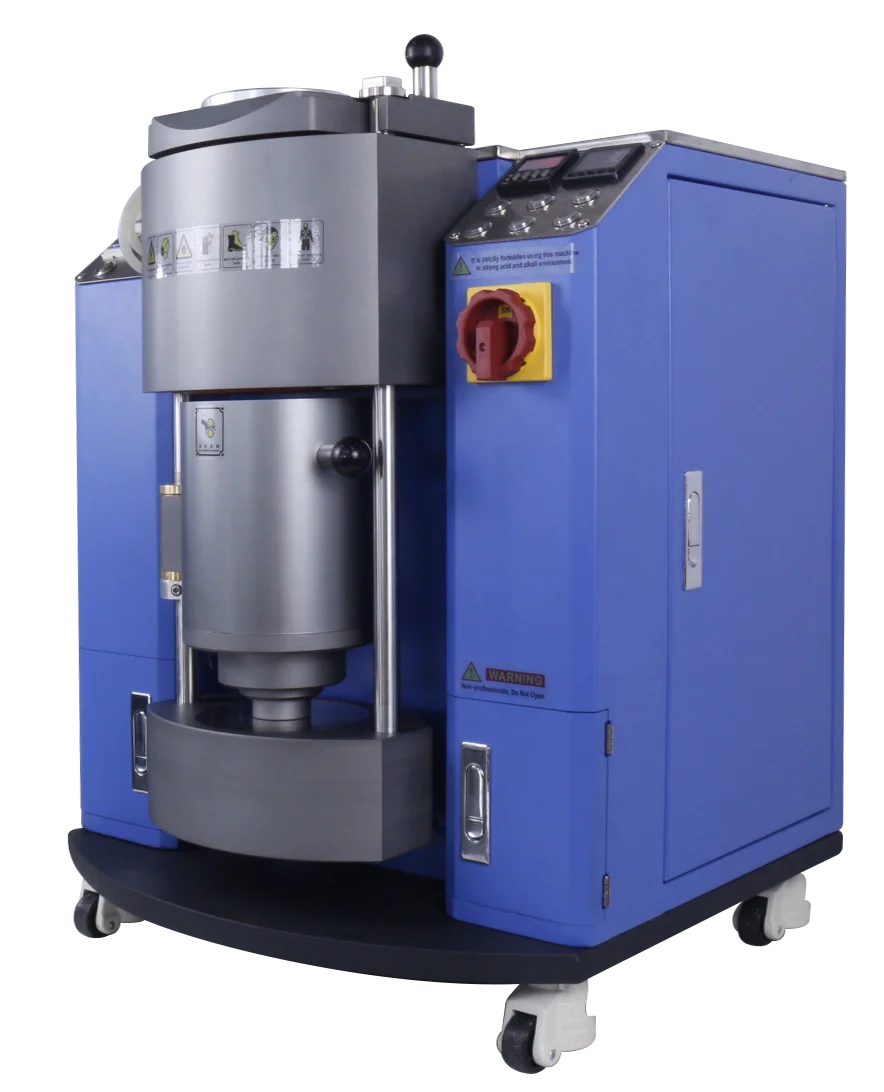

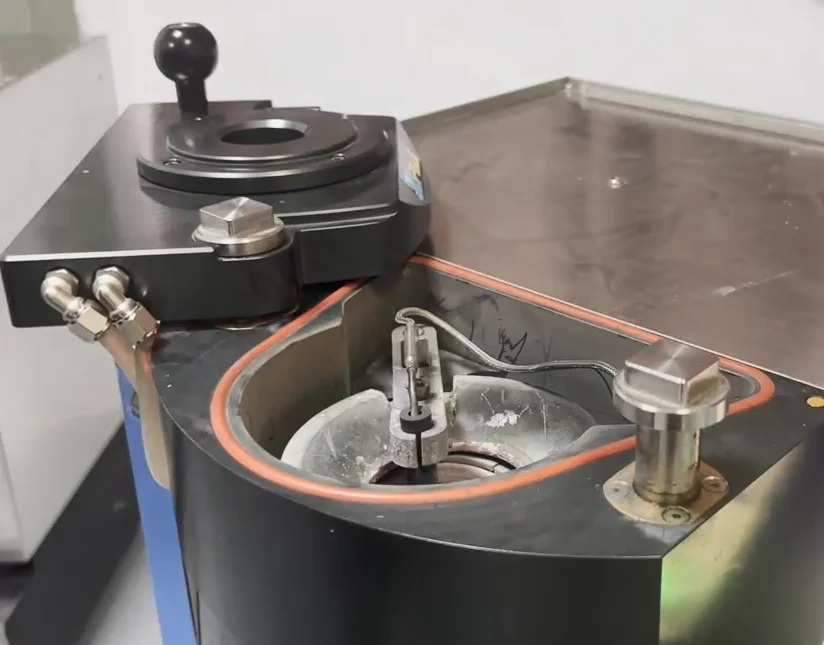

Mini Jewelry Casting Machine

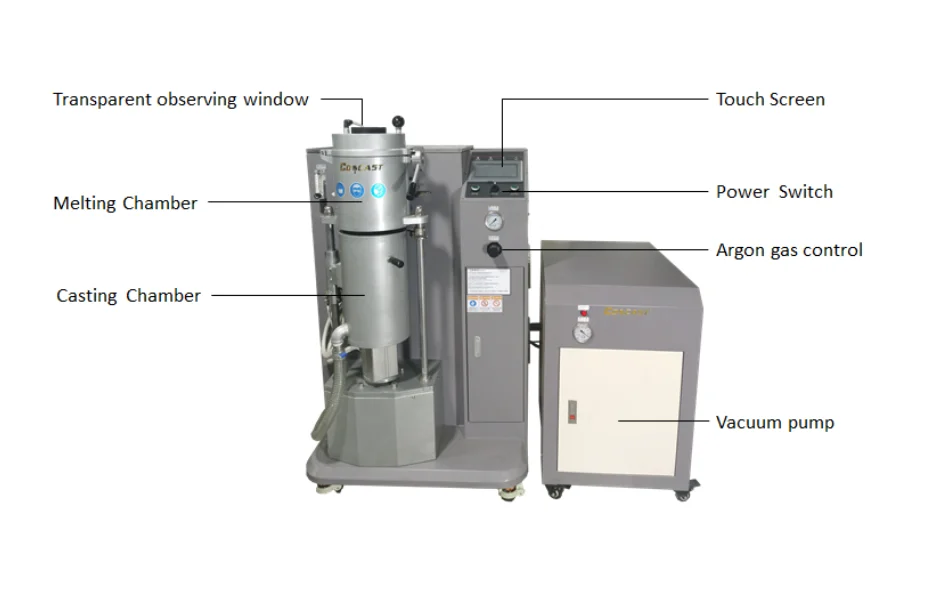

Auto Jewelry Vacuum Casting Machine
Parameter
Model | CDO-SP1 | CDO-JP2 | CDO-JP4 | ||
Power | 6kw | 8.5kw | 15kw | ||
Voltage | 220V single phase | Three phase 380V, 50/60Hz | Three phase 380V, 50/60Hz | ||
Applicable metal | Gold, Silver, Copper and their alloys | Gold, K-Gold, Silver, Copper, Brass, Bronze, and their alloys | |||
Melting Time | 3-5 min | 3-5min | 3-5min | ||
Casting system | Vacuum pressure casting system | Vacuum pressure casting system | |||
Capacity | 24K Gold: 1.0 kg 925 Silver: 0.5 kg | 24K Gold: 2.0 kg 18K Gold: 1.5 kg 925 Silver: 1.0 kg | 24K Gold: 4.0 kg 18K Gold: 3.0 kg 925 Silver: 2.0 kg | ||
Gas | Argon Gas or Nitrogen | Argon Gas or Nitrogen | Argon Gas or Nitrogen | ||
Temperature | 1600℃ | 1600℃ | 1600℃ | ||
Overall Size | 645*625*935mm | 720×700×1150 mm | 720×700×1150 mm | ||
Machine Weight | 120kg | 210 kg | 215 kg | ||
Features
1:CDOCAST Jewelry Vacuum Pressurized Casting Machine is designed with the most advanced PID temperature control, Max Temperature can reach up to 1600 degrees Celsius, with a temperature difference only 2 degrees.2:The strong induction electromagnetic stirring force makes the metal solution more uniform, and the casting quality is higher.
3:The entire melting and casting process is carried out under vacuum, thus minimizing metal oxidation and minimizing metal loss.
4:CDOACAST Jewelry Vacuum Pressurized Casting Machine Equipped with various safety alarms, such as over-current, over-pressure, water shortage and other alarms, when an emergency occurs, the machine can automatically stop
5:Integrated design of the melting and casting chambers for a more compact structure and a smaller footprint for our Jewelry Casting Machine.
6:Jewelry Vacuum Casting Machine’s Pressurized casting design highly improves castings’ density and no porosity compare with the traditional casting.
Application

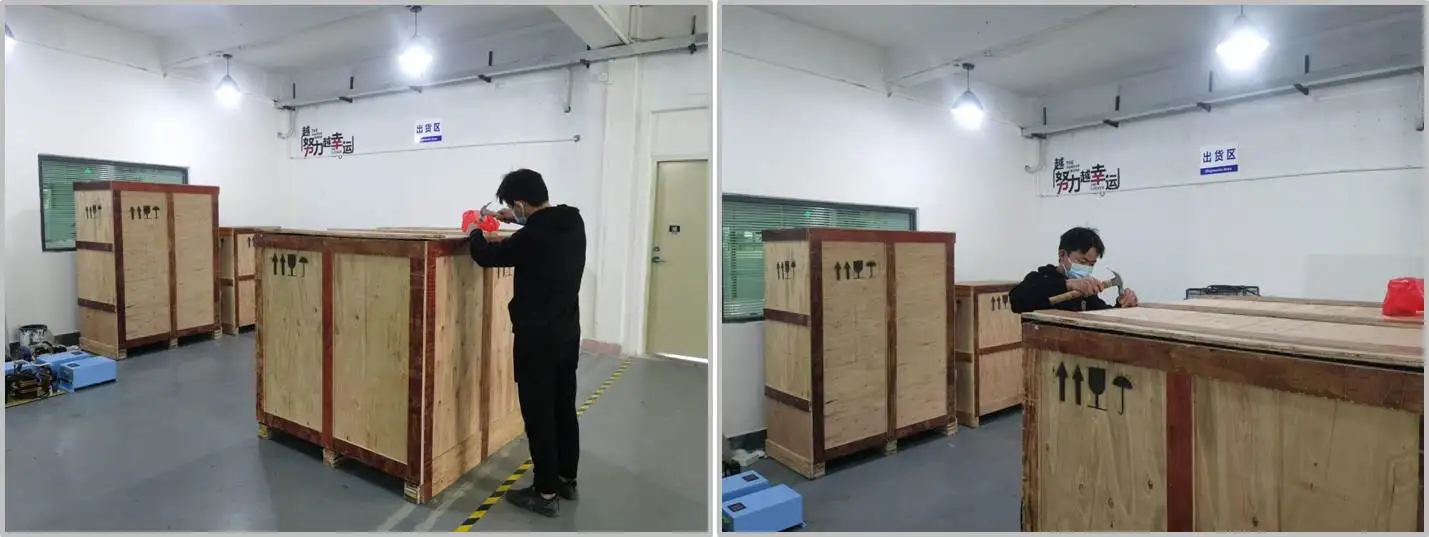

Packing & Delivery
Company Profile
Cooldo is a Top-level professional manufacturer and exporter of precious metal Melting & Casting Equipment in Metallurgy and Foundry Since 2008. Backed by rich experience and resources, we have earned trust from a great many clients both at home and abroad, owning a sound reputation among this field. We not only offer the machine but also the solutions and service.
Our passion lies in helping client Minimal investment, maximum return. Precious metal melting area.
Our passion lies in helping client Minimal investment, maximum return. Precious metal melting area.
If you are looking for a professional manufacturer who makes all types of metal melting furnace & Metal Casting Machine , you are in the right place.

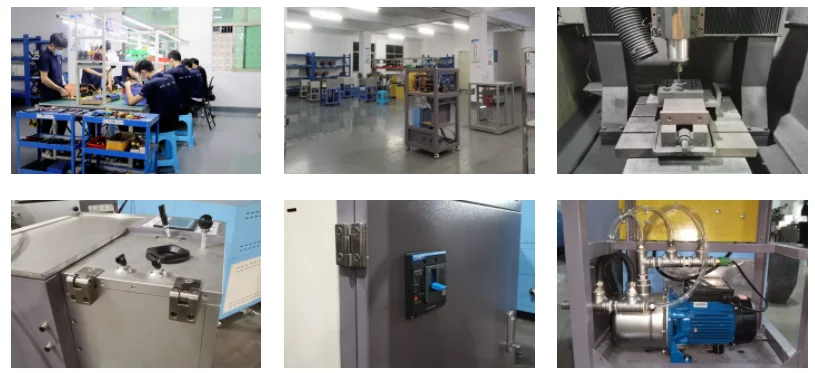

Factory Photo
Customer Photo
FAQ
1. What is your advantage compared to others?
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.
Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength
checking
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. what is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.
Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength
checking
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. what is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
