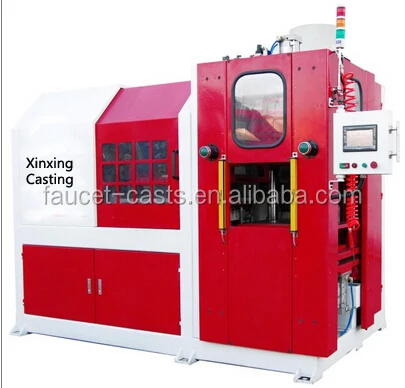

2018 новый дизайн автоматическая формовочная машина для литья под давлением латуни железа
- Категория товара: Metal Casting Machinery >>>
- Поставщик (Оптовый магазин): Xinxing,Casting,Technology,Development,Department
Поделиться:
Описание и отзывы
Характеристики

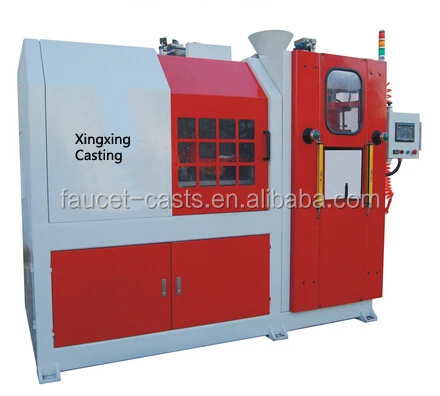

2015 new design high effiency automatic jolt squeeze moulding machine

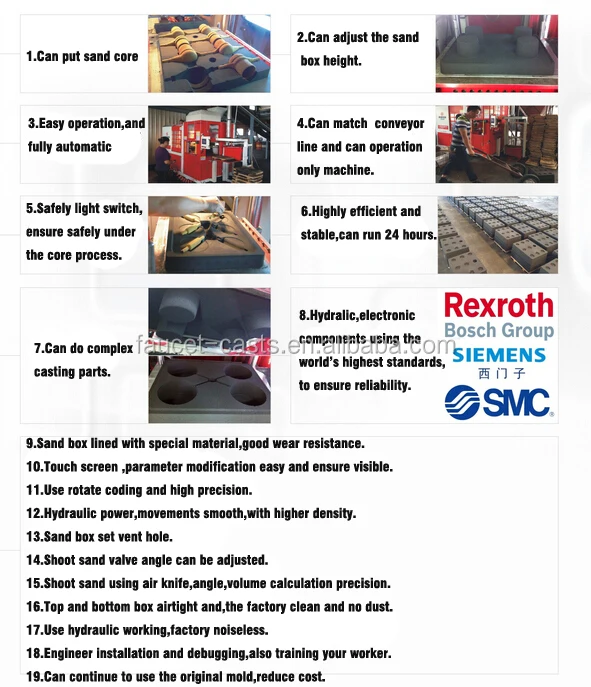

Advantages
Feature:
- 1. Full automatic molding machine can replace the traditional vibration-compression molding machine.

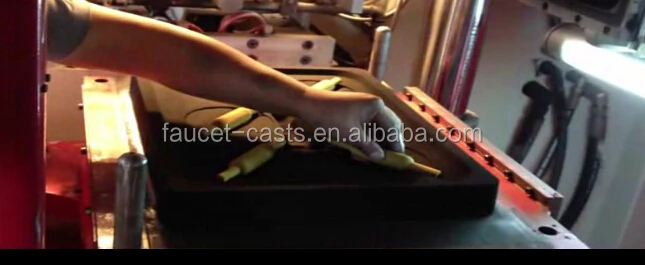

- 2. Can put sand core in it.Use Medium plate mold,aluminum mold,iron mold.
- 3. Can match the conveyor line,high effiency .
- 4. All kind of sand can use,no matter dry sand or wet sand.
- 5. Only can use double open mold.
- 6. Can change another mold,change time is shortly,only 1-2min.
- 7. At least save 10 worker compare with traditionnal vibration-compression molding machine.
Technical Parameters
nical parameter:
Type | Z424 | Z425 | Z426 |
Sand core size(L*W) | 350*450 | 420*520 | 510*610 |
Height(mm) | (up)150*150(down) | (up)150*150(down) | (up)180*180(down) |
Moulding way | Airflow add sand+Extrusion | Airflow add sand+Extrusion | Airflow add sand+Extrusion |
Molding speed(MAX) | 100mold/hour Not contain put sand core | 100mold/hour Not contain put sand core | 100mold/hour Not contain put sand core |
Squeeze the surface pressure(MAX) | -0.6Mpa(2 kind transformation way) | -0.6Mpa(2 kind transformation way) | -0.6Mpa(2 kind transformation way) |
Drive Mode | Pneumatic/Hydraumatic | Pneumatic/Hydraumatic | Pneumatic/Hydraumatic |
Air consumption | 1.0m²(normal/mold) | 1.1m²(normal/mold) | 1.2m²(normal/mold) |
Action of air pressure | 0.56±0.04Mpa | 0.56±0.04Mpa | 0.56±0.04Mpa |
Power Supply | AC220-380V(operation DC24V) | AC220-380V(operation DC24V) | AC220-380V(operation DC24V) |
Sand mould weight(MAX) | 71KG | 75KG | 180KG |
Motor power | 7.5kw | 7.5kw | 7.5kw |
Over size(mm) | 2795(L)*1650(W)*2550(H) | 2795(L)*1650(W)*2550(H) | 2795(L)*1650(W)*2550(H) |
