I. Function:

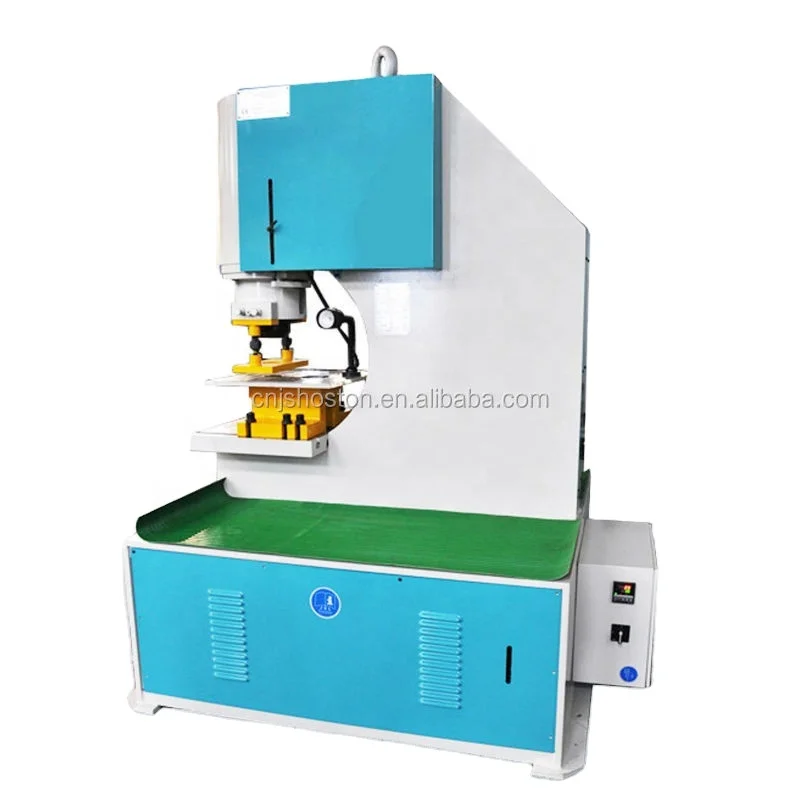

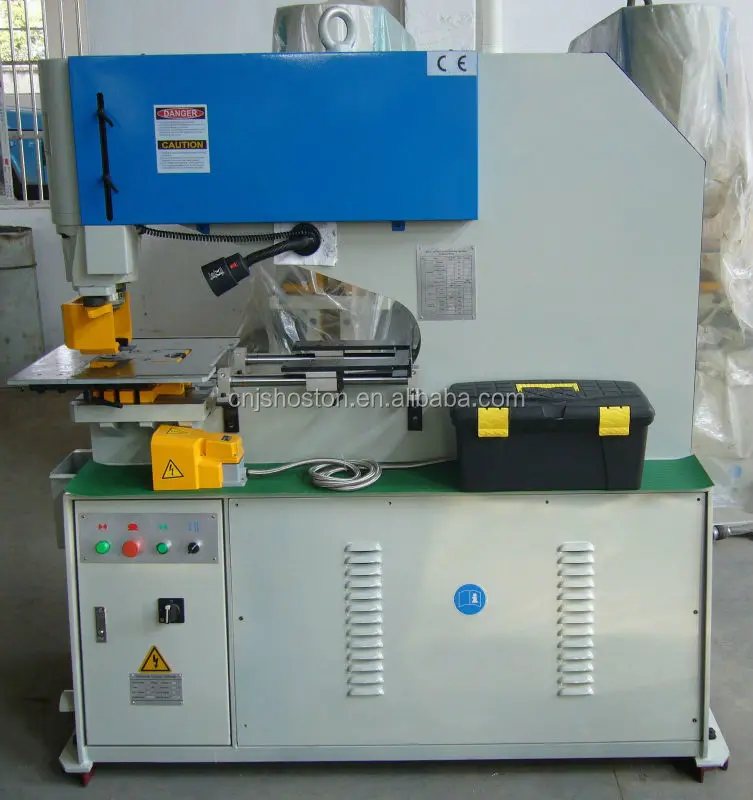

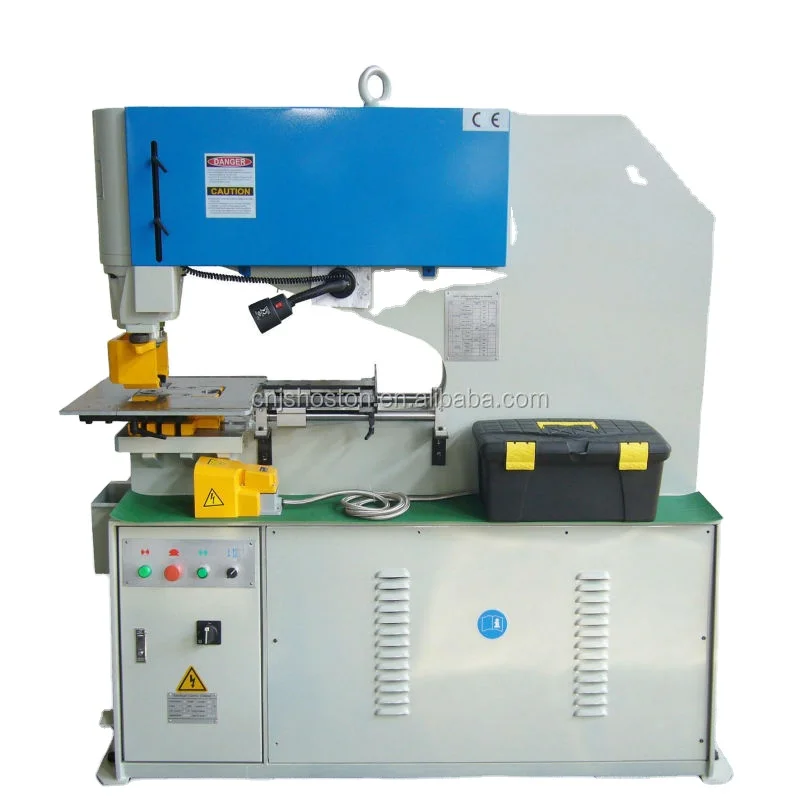

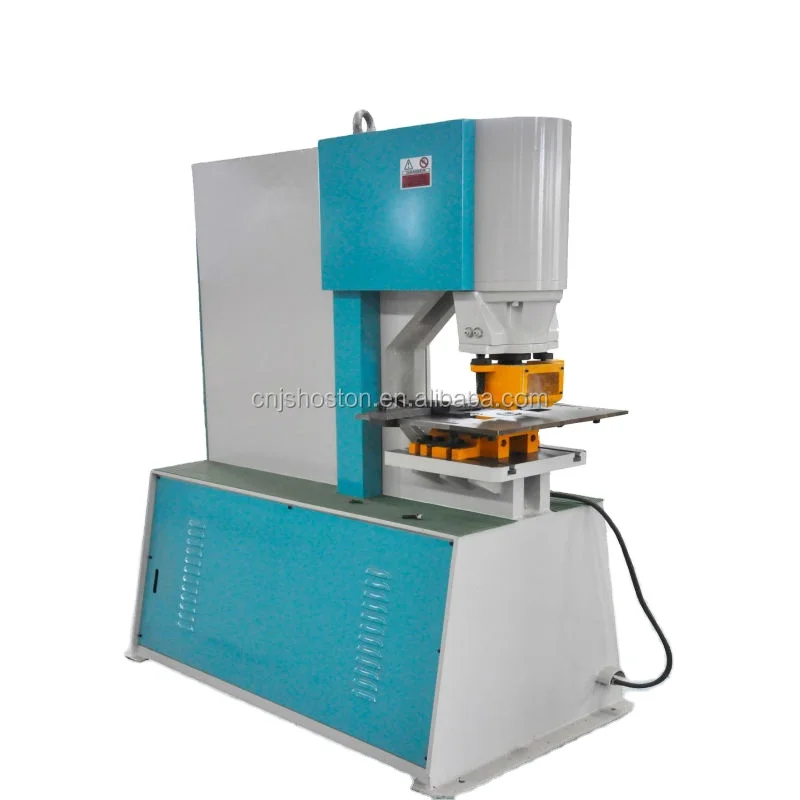

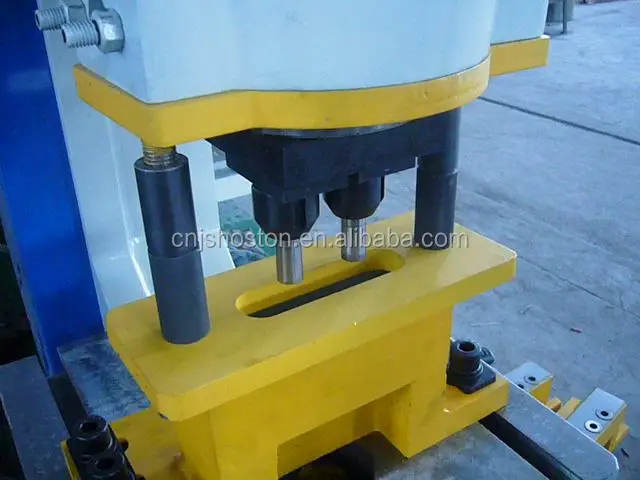

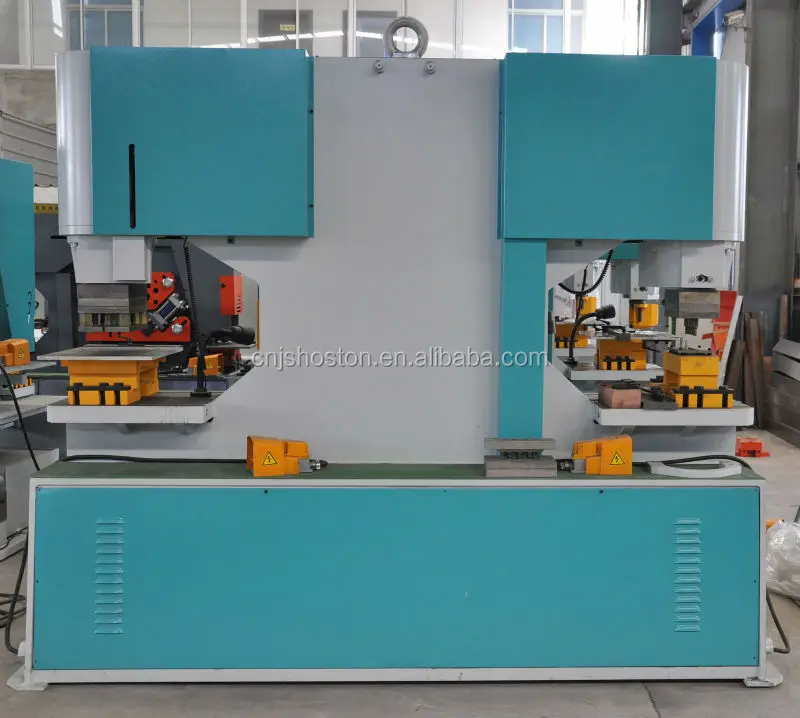

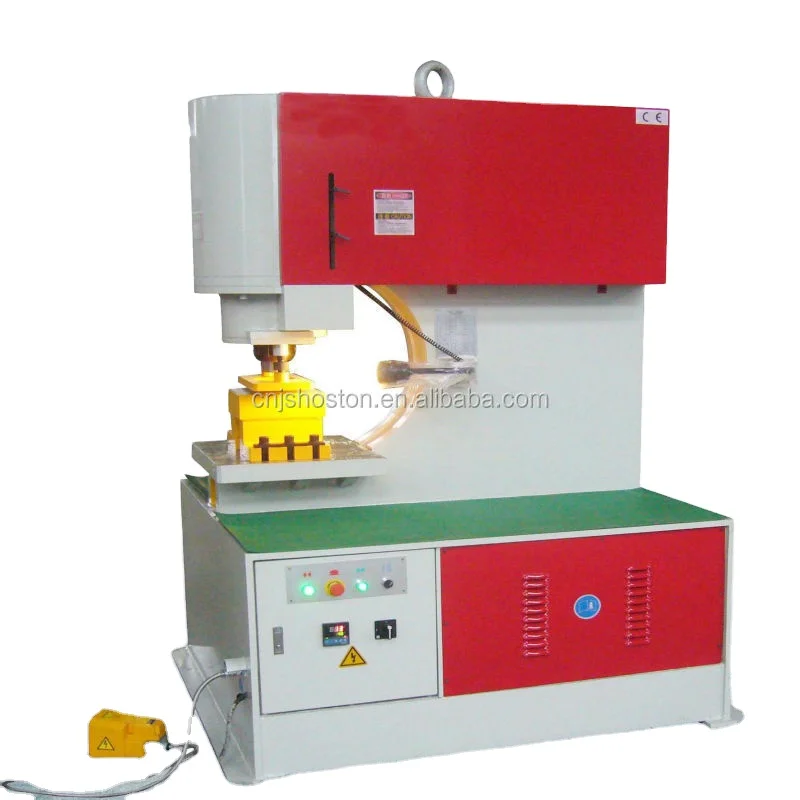

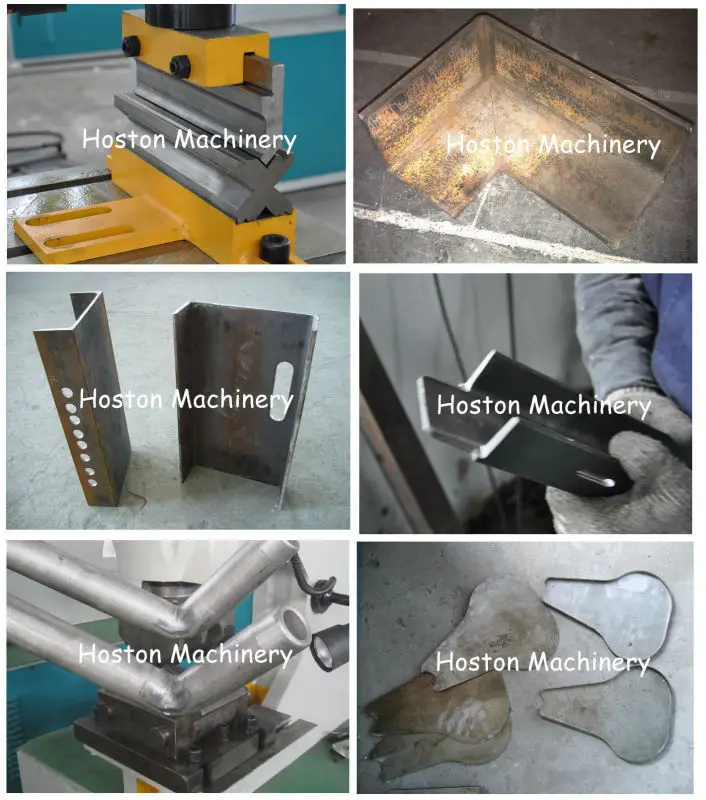

HPM series industrial-grade Hydraulic Punching Machine featuring multiple functions, including: Plate Punching, Angle Steel Punching, C-Channel Punching, I-beam Punching, Press Brake! It can do round hole punching, square hole punching, oblong hole punching, slot hole punching and louver punching. It comes standard with: Quick-change coupling nut & sleeve, squaring arm with scale, punching base table, safety guards and more.
Features
II. Features
*Full stroke adjustment.
*Low power inching and adjustable stroke.
*Large punch table with multi-purpose bolster removable table block for overhang channel/joist flange punching.
*Machines with very low maintenance requirements.
*Punch adaptors
*Swing away punch stripper unit
*Easy change punch holder
*Universal die bolster
III. Accessories
A pair of round hole punching die
For other punches and dies, customers need to order and pay additionally.
HPM series industrial-grade Hydraulic Punching Machine featuring multiple functions, including: Plate Punching, Angle Steel Punching, C-Channel Punching, I-beam Punching, Press Brake! It can do round hole punching, square hole punching, oblong hole punching, slot hole punching and louver punching. It comes standard with: Quick-change coupling nut & sleeve, squaring arm with scale, punching base table, safety guards and more.
Features
II. Features
*Full stroke adjustment.
*Low power inching and adjustable stroke.
*Large punch table with multi-purpose bolster removable table block for overhang channel/joist flange punching.
*Machines with very low maintenance requirements.
*Punch adaptors
*Swing away punch stripper unit
*Easy change punch holder
*Universal die bolster
III. Accessories
A pair of round hole punching die
For other punches and dies, customers need to order and pay additionally.
| Type | HPM-40 | HPM-60 | HPM-90 | HPM-120 | HPM-160 | HPM-200 | HPM-250 | |
| Hole Punching Capacity (diameter* thickness) (mm) | 25×12 | 25×16 | 35×20 | 35×25 | 40×30 | 40×35 | 45×35 | |
| Punch (pressure) (KN) | 400 | 600 | 900 | 1200 | 1600 | 2000 | 2500 | |
| Max stroke(mm) | 80 | 80 | 80 | 80 | 80 | 100 | 100 | |
| Stroke times (times/min) | 8 | 8 | 8 | 7 | 6 | 8 | 8 | |
| 20 mm stroke times(times/min) | 22 | 22 | 22 | 22 | 25 | 25 | 25 | |
| Motor power(KW) | 4 | 4 | 5.5 | 7.5 | 11 | 15 | 22 | |
| Depth of throat(mm) | 300 | 300 | 350 | 400 | 500 | 500 | 600 | |
| Dimension(mm) | Length | 1100 | 1500 | 1550 | 1660 | 1700 | 1800 | 1900 |
| Width | 800 | 800 | 900 | 1000 | 1100 | 1200 | 1400 | |
| Height | 1780 | 1780 | 1930 | 2100 | 2200 | 2300 | 2400 | |
| Weight(Kg) | 700 | 1600 | 2000 | 3200 | 4200 | 5000 | 6200 | |
Hoston Brand HPM Series Special Design Hydraulic Punching Machine
