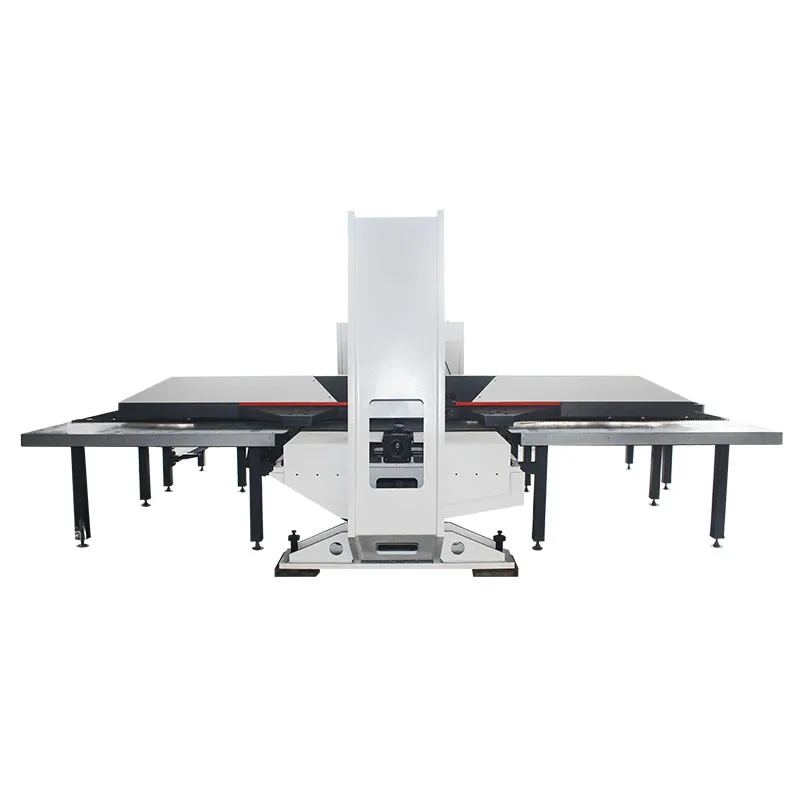

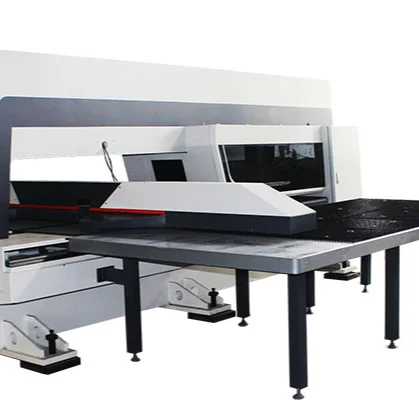

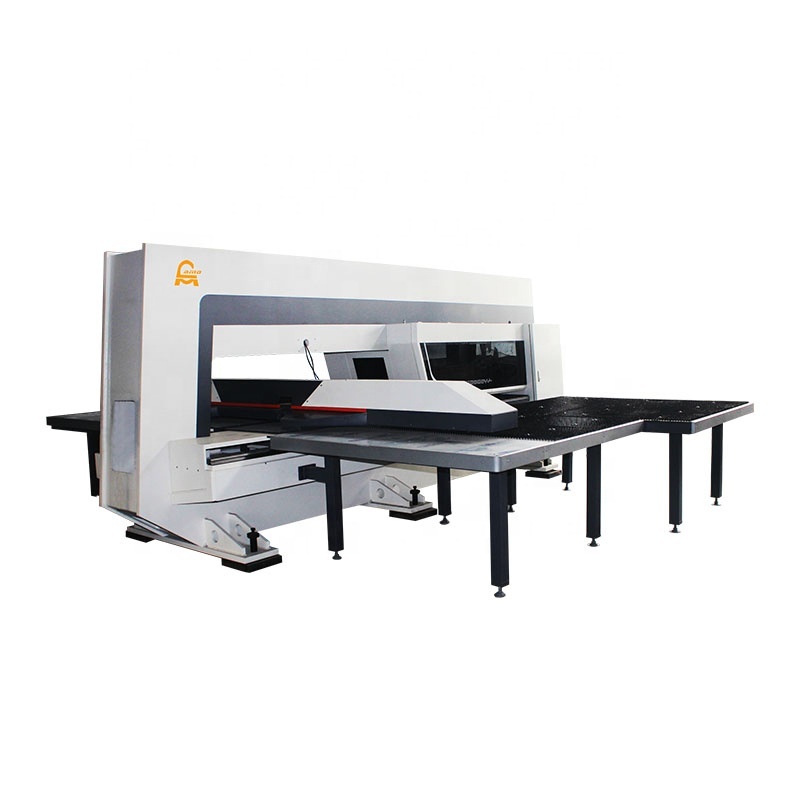

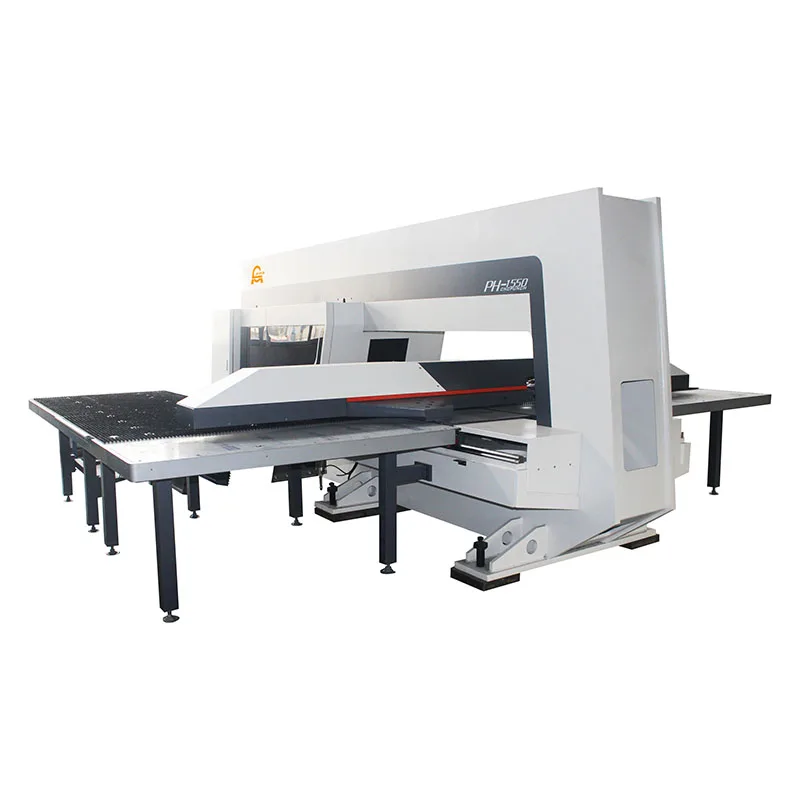

AMD-357 гидравлический пресс-Станок токарно-револьверный пробивые машины
- Категория товара: Punching Machines >>>
- Поставщик (Оптовый магазин): Qingdao,Puhua,Heavy,Industrial,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Steel CNC Hole Tube Machining Parts Turret Punching Machine Price Punch Press
AMD-357 CNC turret punching machine is mechatronics automation equipment, it's widely used in the instruments and meters, chassis cabinets processing, electric control cabinet panels, battery plate, building decorative materials, auto parts, silencing plate, lamps, kitchen equipment, air conditioners and other sheet metal processing industries.
Technical Parameter
Model | AMD-357 |
Capacity | 300/500 KN |
Driving Type | Mechanical driving |
CNC System | Siemens/Fanuc |
Max. Processing sheet (Reposition) | 1000/1250/1500/1750 mm 1500/2500/4000/6000 mm |

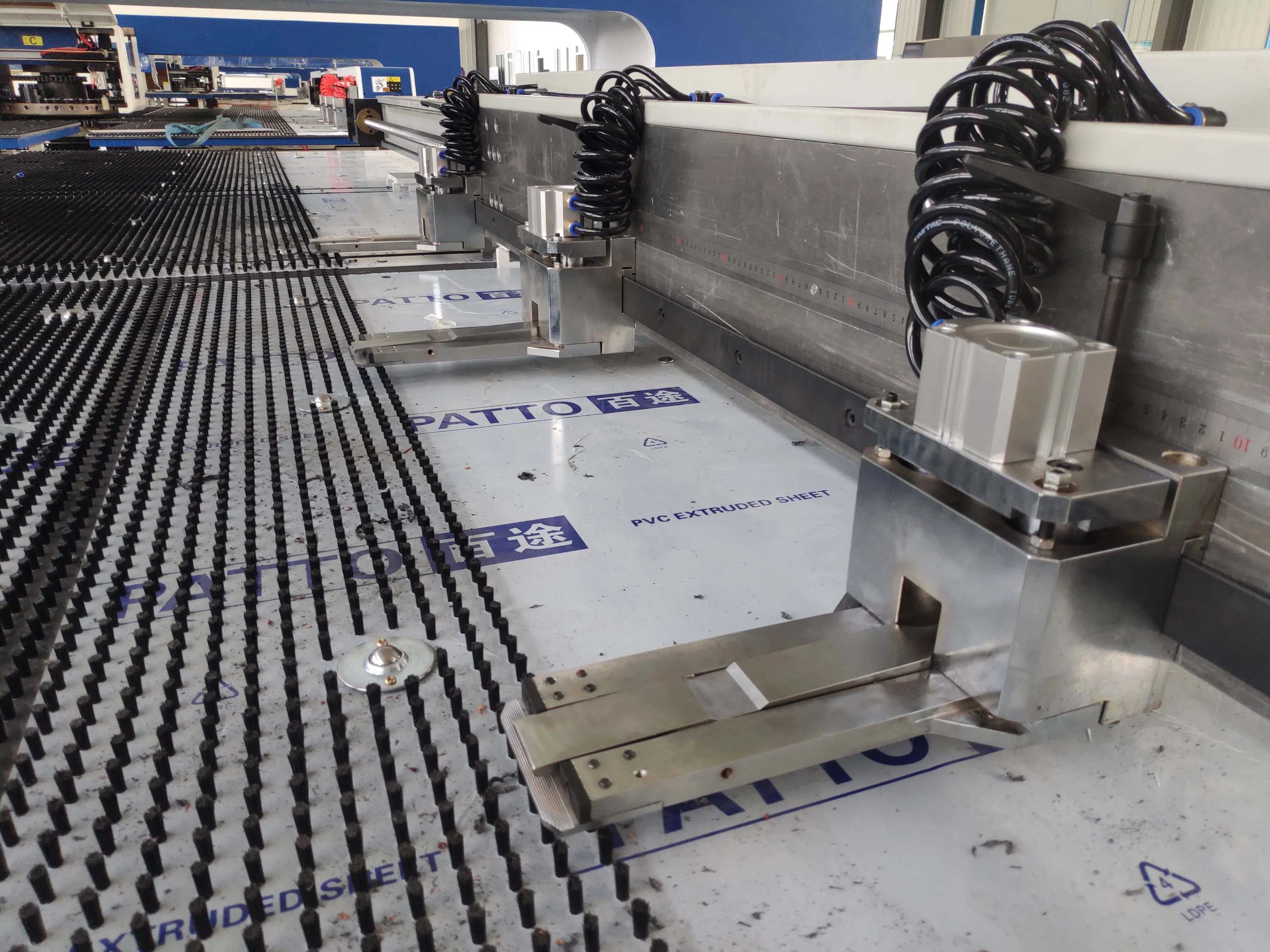

QTY of Clamp | No.3 |
Max. Processing Sheet Thickness | 6 mm |
Max. Punch Diameter | Φ88.9 mm |
Max. Punch Hit at 1mm Pace | 400 hpm |
Max. Punch Hot at 25mm Pace | 220 hpm |
QTY of Station | No.24/32 |
Controlling Axis | No.4 |
Machine Frame | O type |
Max. Feeding Speed | 60 m/min |
Tooling Rotation Speed | 30 rpm |
Accuracy | ±0.1 mm |
Rated Power | 20 KW |
Air Pressure | 0.6-0.8 MPa |
Outline Dimension | 4490*5300*2110 mm |
Product Features
With servo motor, faster speed and higher stability
Equipped with secondary positioning system to realize processing without dead angle
With the features of automatic lubrication and minimal wear
Use casting integrated type thick turret mold disc
We adopt brush and universal ball mixer work table,can not only facilitate processing,but also can protect the plate very well.
The transmission system, electrical components, and hydraulic components all adopt internationally renowned brands

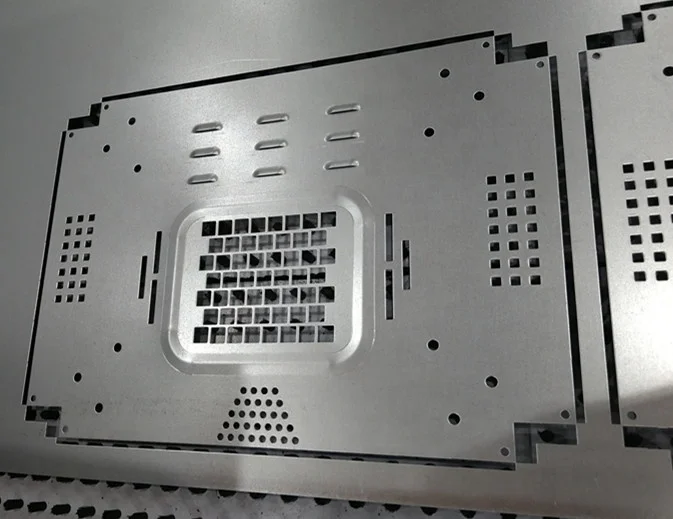

Product Application
Workshop
Certifications
Product Packaging
