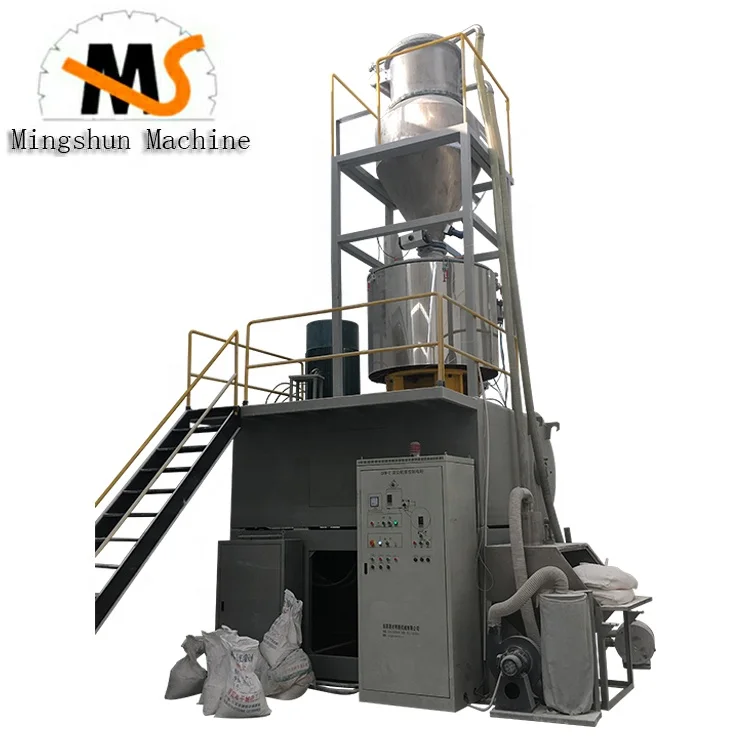

High quality SRL1000/3000L plastic resin mixer/mixing machine
1. Adopt double seal for the hot mixer machine.
2. It can be with the heating ways of self-friction, electrical heating, oil heating method.
3. With discharging ways of temperature automatic control and manual control.
4. Paddles are entirely made of stainless steel and through dynamic and static balance test.
5. About the electric control system, the mixer machine adopts the components of famous brand.
6. It is with inverter.
item | name | Specification | |
thermal mixer | cold mixer | ||
1 | The total volume | 1000L | 3000L |
2 | Effective volume | 700L | 2000L |
3 | Impeller number | 3 | 4 |
4 | Heating methods | Since the friction |
|
5 | Cooling methods |
| Cooling water |
6 | Power | 132KW | 30KW |
7 | Barrel body, bottom of the pot material | stainless steel, thickness 8mm | |
8 | Pot cover, three links | Aluminum | |
9 | Blades | stainless steel precision casting, and by the static and dynamic balance test | |
Some main parameter of plastic resin mixer:
Model | Total capacity | Effective capacity | Stirring speed(r/min) | Motor&Heating power(kw) | Gass consumption m3(min) | Dimension(mm) | Weight(T) |
SRL-Z50/100 | 50/100 | 32/75 | 750/1500/180 | 7/11/5.5 | 3t/h | 2300/1800/1900 | 2.8 |
SRL-Z100/200 | 100/200 | 75/160 | 650/1300/180 | 14/22/7.5 | 3.5t/h | 2500/2000/2200 | 3 |
SRL-Z200/500 | 200/500 | 150/320 | 475/950/130 | 30/42/11 | 5t/h | 4580/2240/2470 | 3.5 |
SRL-Z300/600 | 300/600 | 200/360 | 475/950/130 | 40/55/11 | 3.8t/h | 4580/2240/2500 | 3.8 |
SRL-Z300/1000B | 300/1000 | 200/640 | 475/950/50 | 40/55/11 | 5.8t/h | 4600/3000/4050 | 4.2 |
SRL-Z500/1000A | 500/1000 | 375/650 | 430/860/60 | 47/67/18.5 | 5.8t/h | 4600/3000/4050 | 5.8 |
SRL-Z500/1000B | 500/1000 | 375/640 | 430/860/50 | 55/75/15 | 6.8t/h | 4600/3000/4050 | 7.8 |
SRL-Z500/1600B | 500/1600 | 375/1200 | 430/860/60 | 55/75/18.5 | 10t/h | 4600/3000/4050 | 7.3 |
SRL-Z800/1600A | 800/1600 | 600/1024 | 500/50 | 75/30 | 10t/h | 6230/4230/4480 | 8 |
SRL-Z800/2000B | 800/2000 | 600/1500 | 370/740 | 83/110/30 | 12t/h | 4850/3860/6550 | 8.2 |
High quality SRL1000 3000L Plastic PVC power mixer machine
Our factory is near Shanghai city. We are a gold supplier of Alibaba more than 11 years. We have ISO9001:2008 and SGS.
We manufacture various plastic pipe machine, pipe belling machine, plastic profile/panel/ceiling machine, plastic pelletizing machine, shredder, mixer, crusher, pulverizer and so on.
Our boss is an expert in the area. We always pay more attention on design, technology and quality. Now we are expanding market abroad. So our prices are competitive on the basis of good quality.
In last few years we have exported machines to Russia, Ukraine, Belarus, South Africa, Nigeria, Kenya, Zambia, Morocco, Algeria, Saudi Arabia, Egypt, Jordan, Lebanon, Pakistan, Bangladesh, Uzbekistan, India, Thailand, Burma, Argentina, Mexico, Brazil, Uruguay, etc.
For some main electrical components, we usually use Siemens/ABB/Omron/ Schneider brands in order to ensure good quality.
1) We recommend of machine and auxiliary equipments and relevant budgeting, human resources allocation and budgeting.
2) We would like to answer any inquiry within 48 hours and it will be solved as soon as possible.
3) The buyer can send workers to our company for training.
4) The seller supplies the complete technical documents and drawings in Chinese and English.
5) Our engineer would like to the buyer’s company for installation and training.
