Products Description

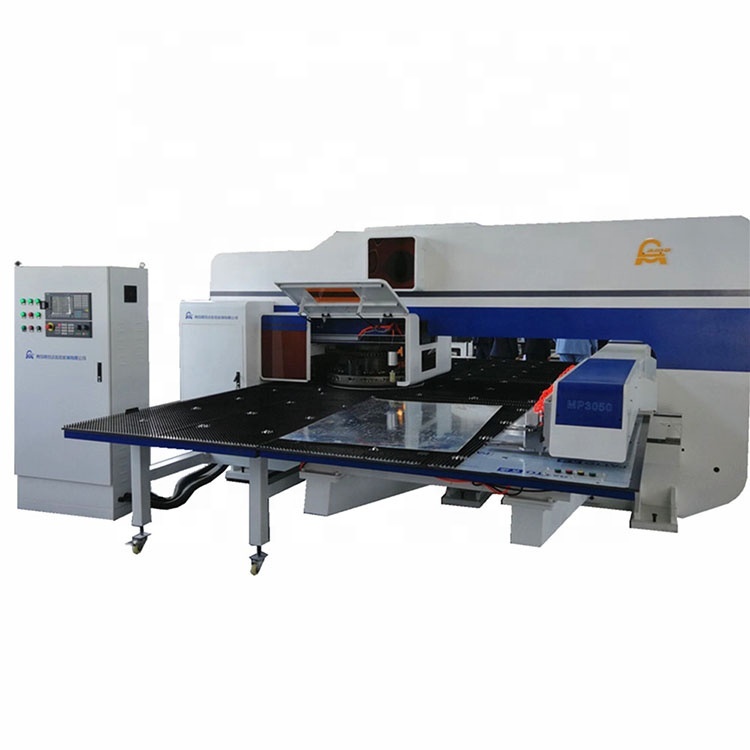

New design aluminum punching machine hydraulic punching press machine price
AMD-357 CNC turret punching machine is mechatronics automation equipment, it's widely used in the instruments and meters, chassis cabinets processing, electric control cabinet panels, battery plate, building decorative materials, auto parts, silencing plate, lamps, kitchen equipment, air conditioners and other sheet metal processing industries.
Technical Parameter
Model | AMD-357 |
Capacity | 300/500 KN |
Driving Type | Hydraulic driving |
CNC System | Siemens/Fanuc |
Max. Processing sheet (Reposition) | 1000/1250/1500/1750 mm 1500/2500/4000/6000 mm |
QTY of Clamp | No.3 |
Max. Processing Sheet Thickness | 6 mm |
Max. Punch Diameter | Φ88.9 mm |
Max. Punch Hit at 1mm Pace | 400 hpm |
Max. Punch Hot at 25mm Pace | 220 hpm |
QTY of Station | No.24/32 |
Controlling Axis | No.4 |
Machine Frame | O type |
Max. Feeding Speed | 60 m/min |
Tooling Rotation Speed | 30 rpm |
Accuracy | ±0.1 mm |
Rated Power | 20 KW |
Air Pressure | 0.6-0.8 MPa |
Outline Dimension | 4490*5300*2110 mm |
Product Features
With servo motor, faster speed and higher stability
Equipped with secondary positioning system to realize processing without dead angle
With the features of automatic lubrication and minimal wear

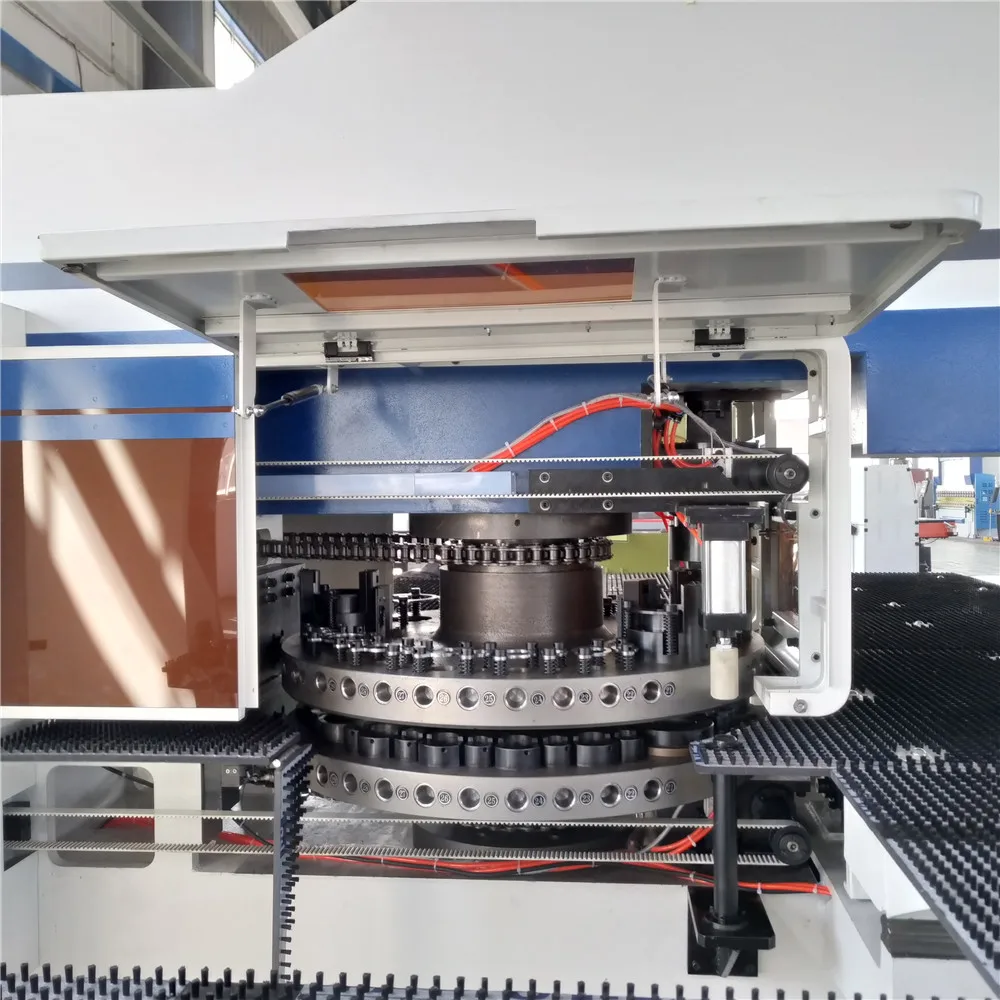

Use casting integrated type thick turret mold disc
We adopt brush and universal ball mixer work table,can not only facilitate processing,but also can protect the plate very well.
The transmission system, electrical components, and hydraulic components all adopt internationally renowned brands
Product Application

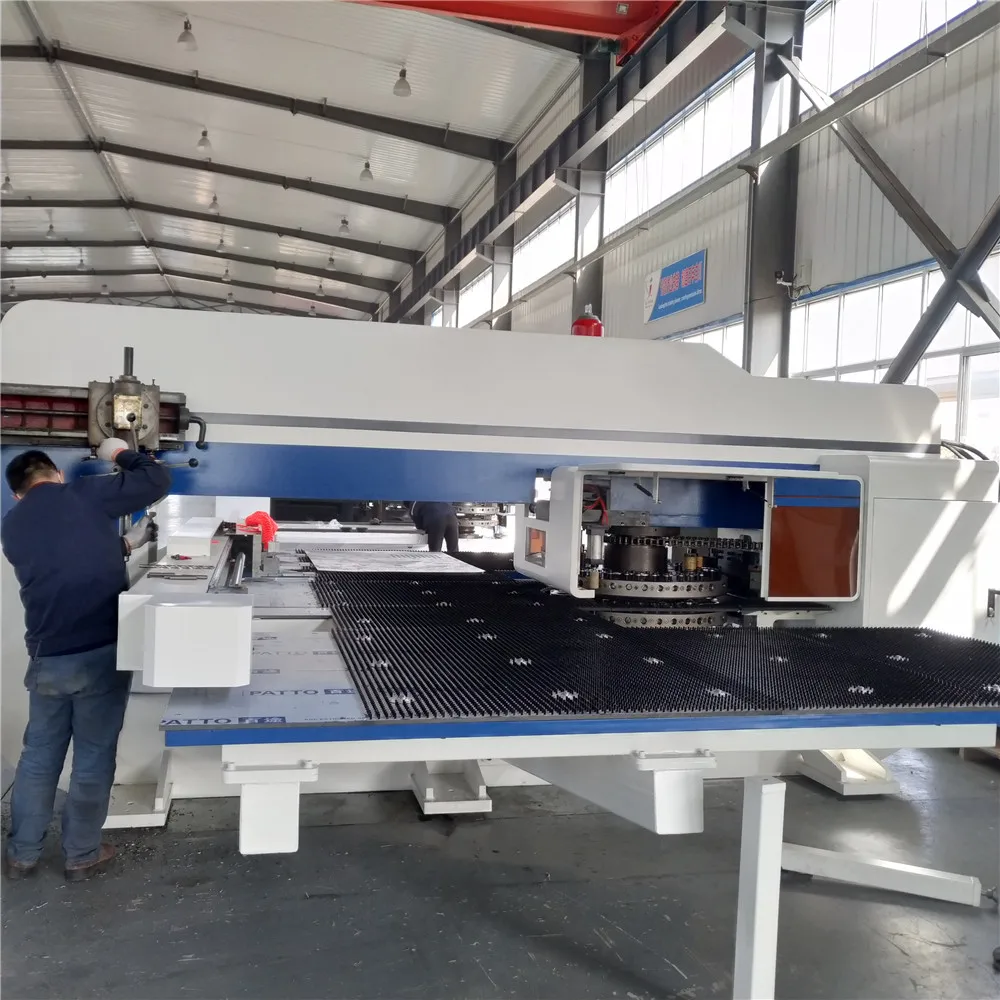

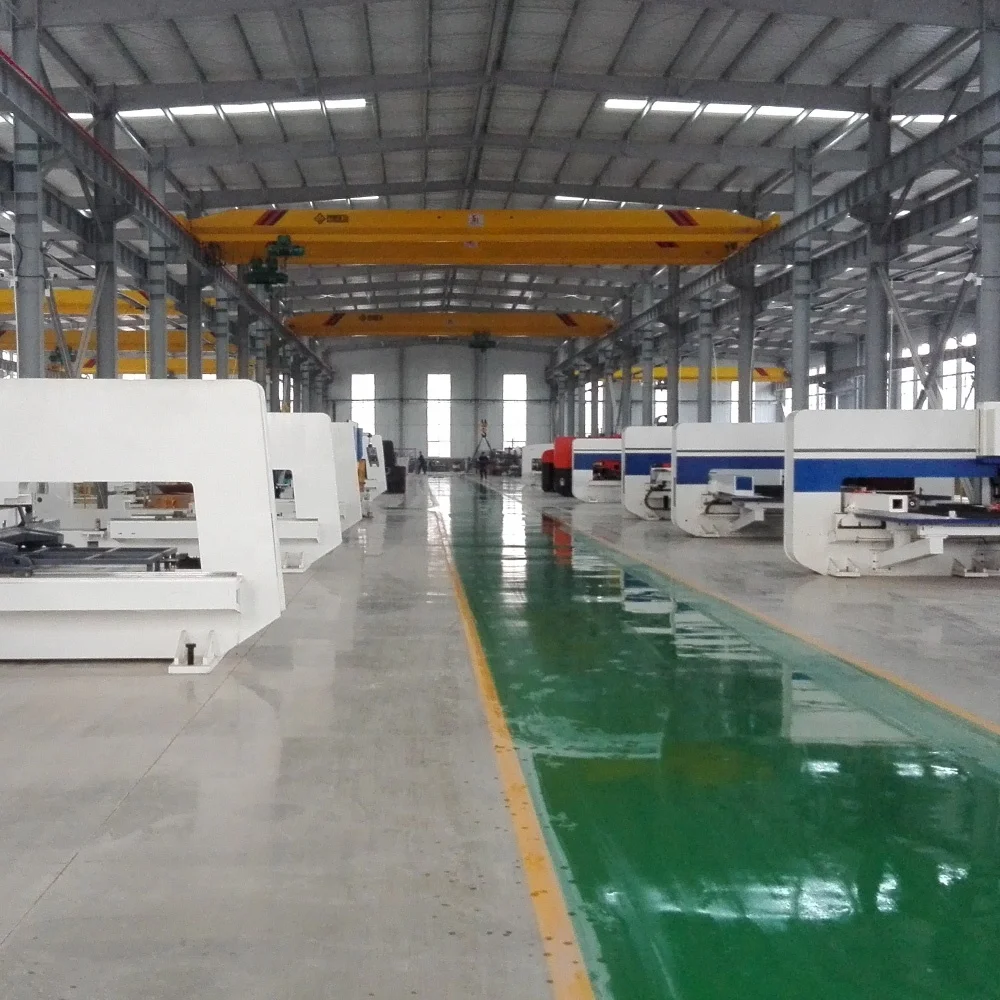

Workshop
Certifications
Product Packaging
Recommend Products
Company Profile
Qingdao Puhua Heavy Industrial Group was established in 2006. It focus on design, research, development, manufacturing and export of CNC punching machine, sand blasting booths, sand processing equipment, environmental protection equipment, a variety of shot blasting machine, including roller conveyor type, overhead chain type, hook type, tumble belt type, wire mesh type, road surface type etc. All products are professionally designed by our highly-experienced engineers with Auto CAD.
FAQ
1. Production time:
20-40 days according to different type.
2. Installation and commissioning time:
10-15 days.
3. Installation and commissioning issue:
We will send 1-2 technicians to help with machine installation and commissioning, customer pays for their tickets, hotel and diet.
4. Warranty time:
12 months from date of commissioning completion, but no more than 18 months from date of delivery.
5. Payment term:
30% as prepayment, balance 70% before delivery or L/C at sight.
6. We supply full english documents:
including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.
20-40 days according to different type.
2. Installation and commissioning time:
10-15 days.
3. Installation and commissioning issue:
We will send 1-2 technicians to help with machine installation and commissioning, customer pays for their tickets, hotel and diet.
4. Warranty time:
12 months from date of commissioning completion, but no more than 18 months from date of delivery.
5. Payment term:
30% as prepayment, balance 70% before delivery or L/C at sight.
6. We supply full english documents:
including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.
