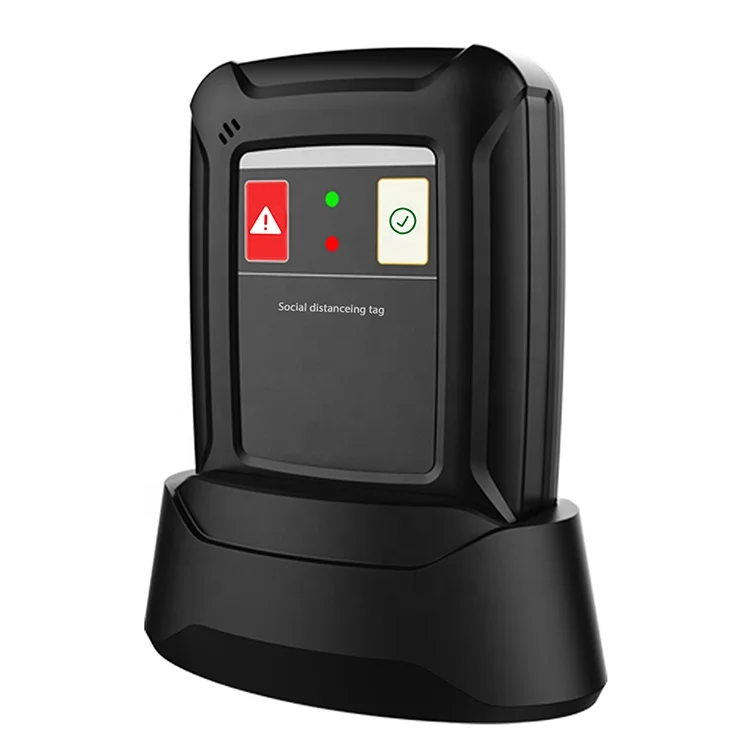

High-precision Enhanced Contact Tracing Three-proof Positioning Label Rtls Uwb For Security Devices
- Category: Smart Tracker & Locator >>>
- Seller: ForThink,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Details Images

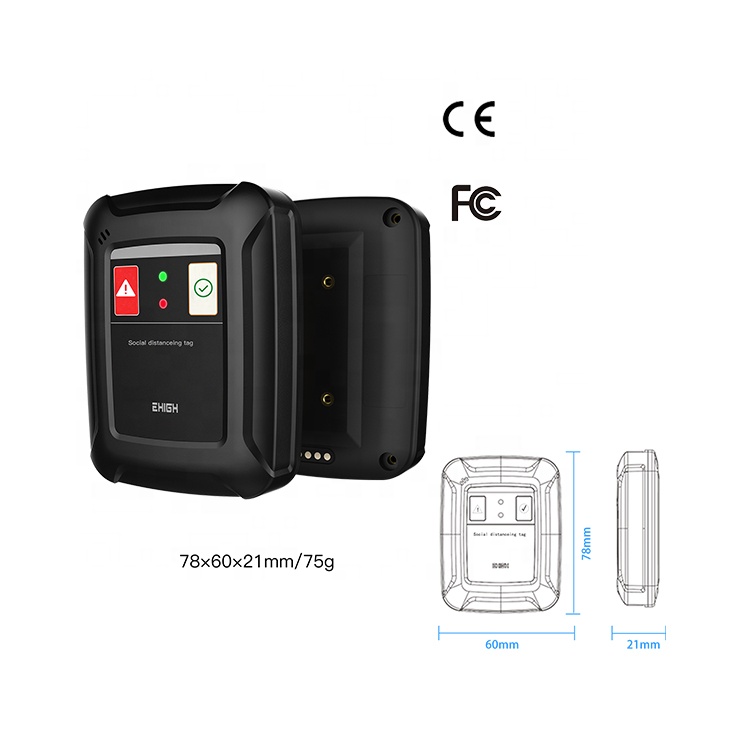

Product name | social distance tag |
Model number | EH100606A05-P |
Size | 78×60×21 mm |
Weight | ≤75g |
Working temperature | -20℃~60℃ |
Protection level | IP65 |
Material | ABS |
Battery | lithium battery |
Battery power | 1000mAh |
Ranging method | TOF |
LED | Yes |
Certification | CE/FCC |
Voice alert | Yes |
Vibration reminder | Yes |
LED alert | Yes |
BUILT-IN RFID | ISO14443A 13.56M IC card |

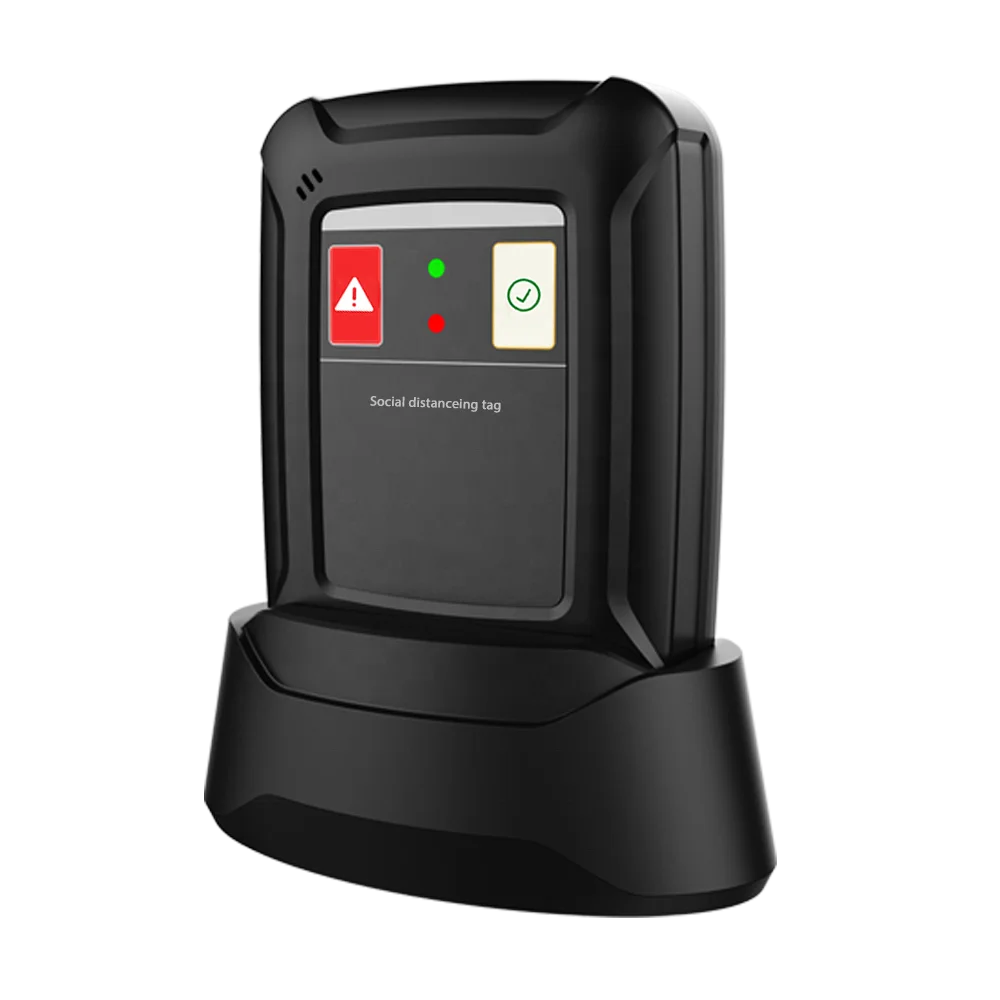

Social Distancing Tag
The most recent period, almost all of essential businesses are being under significant challenges in maintaining social distancing guidelines because they lack real-time insight into whether these guidelines are being observed in their facilities. EHIGH have dedicated to develop the proximity warning alarm system and perfectly help you to reopen your business.
EHIGH’s proximity warning alarm system is based on Ultra-Wideband indoor ranging technology and many improvements have been made by EHIGH, through which the social distance can be set in advance and the error can be within only 10 centimeters.

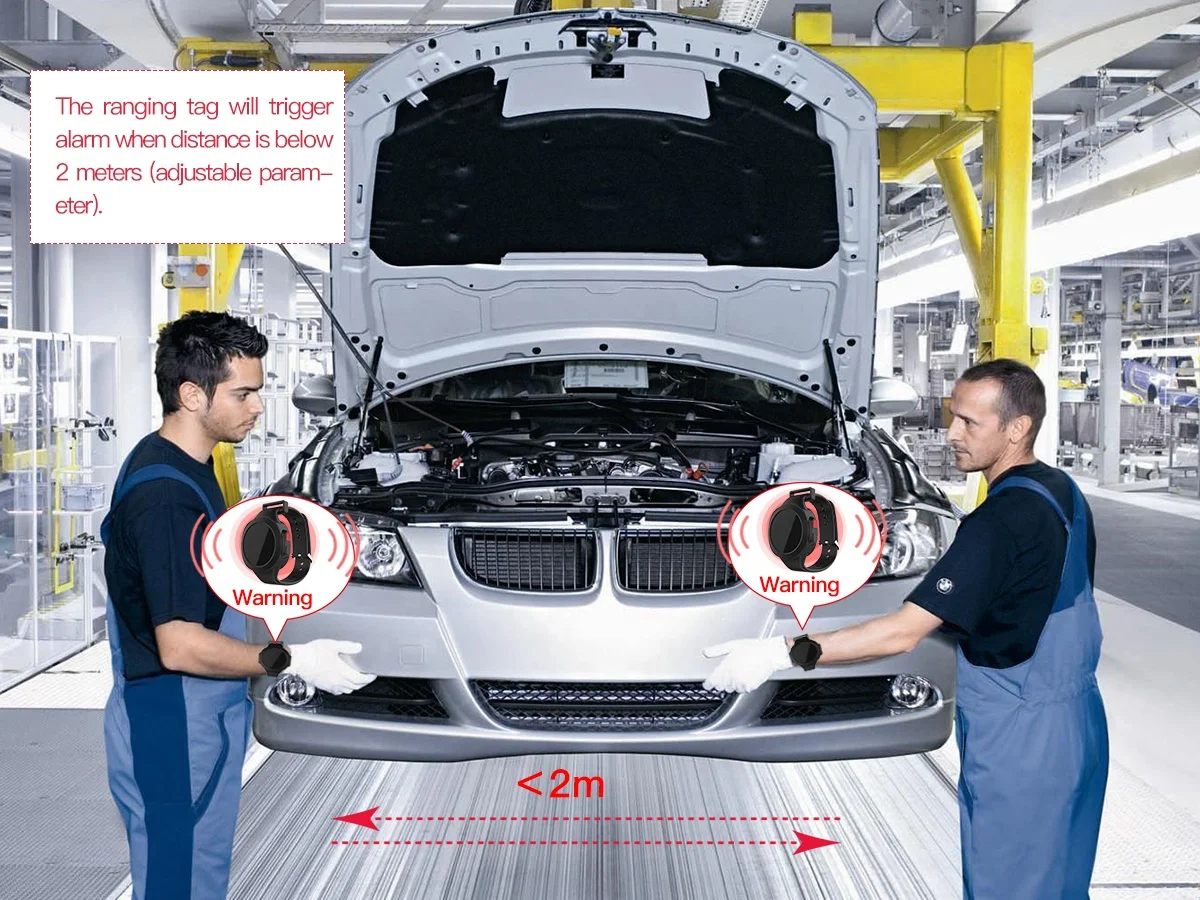

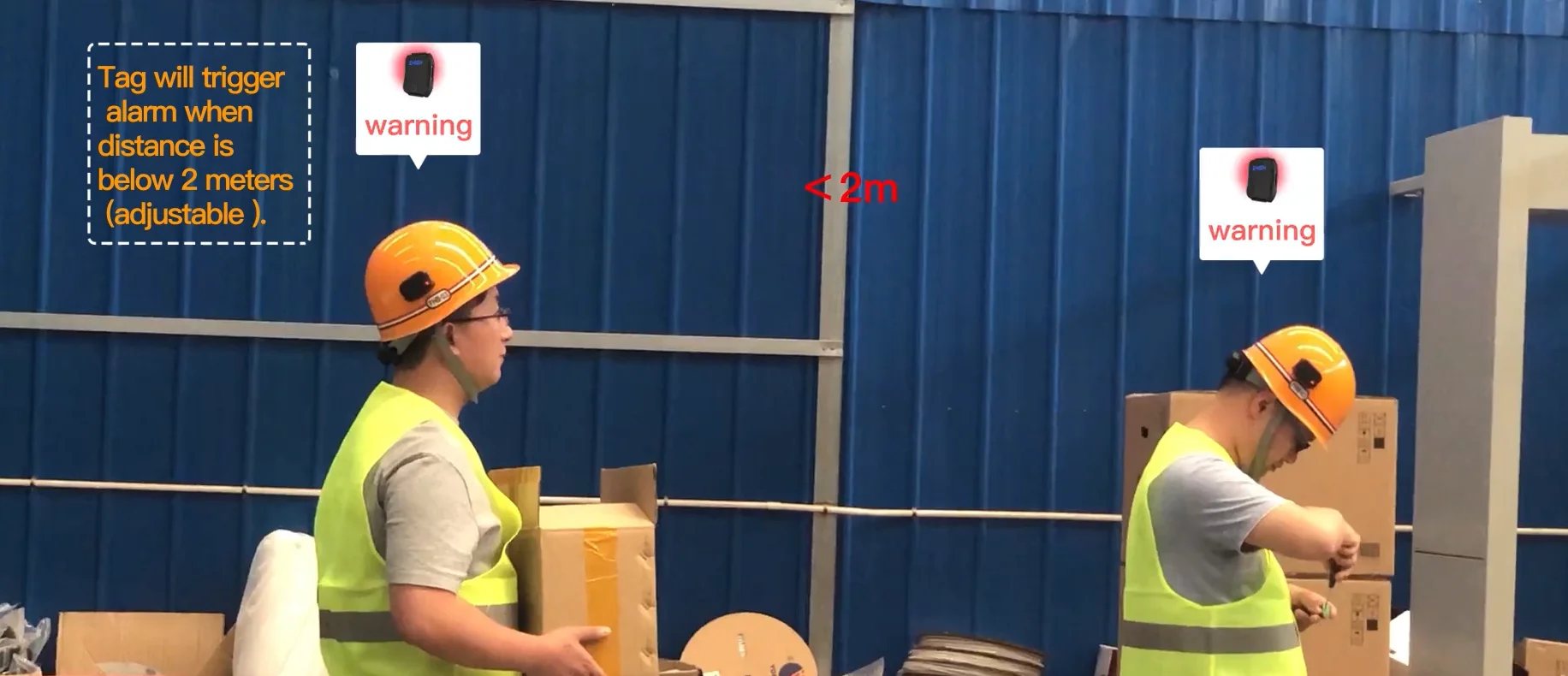

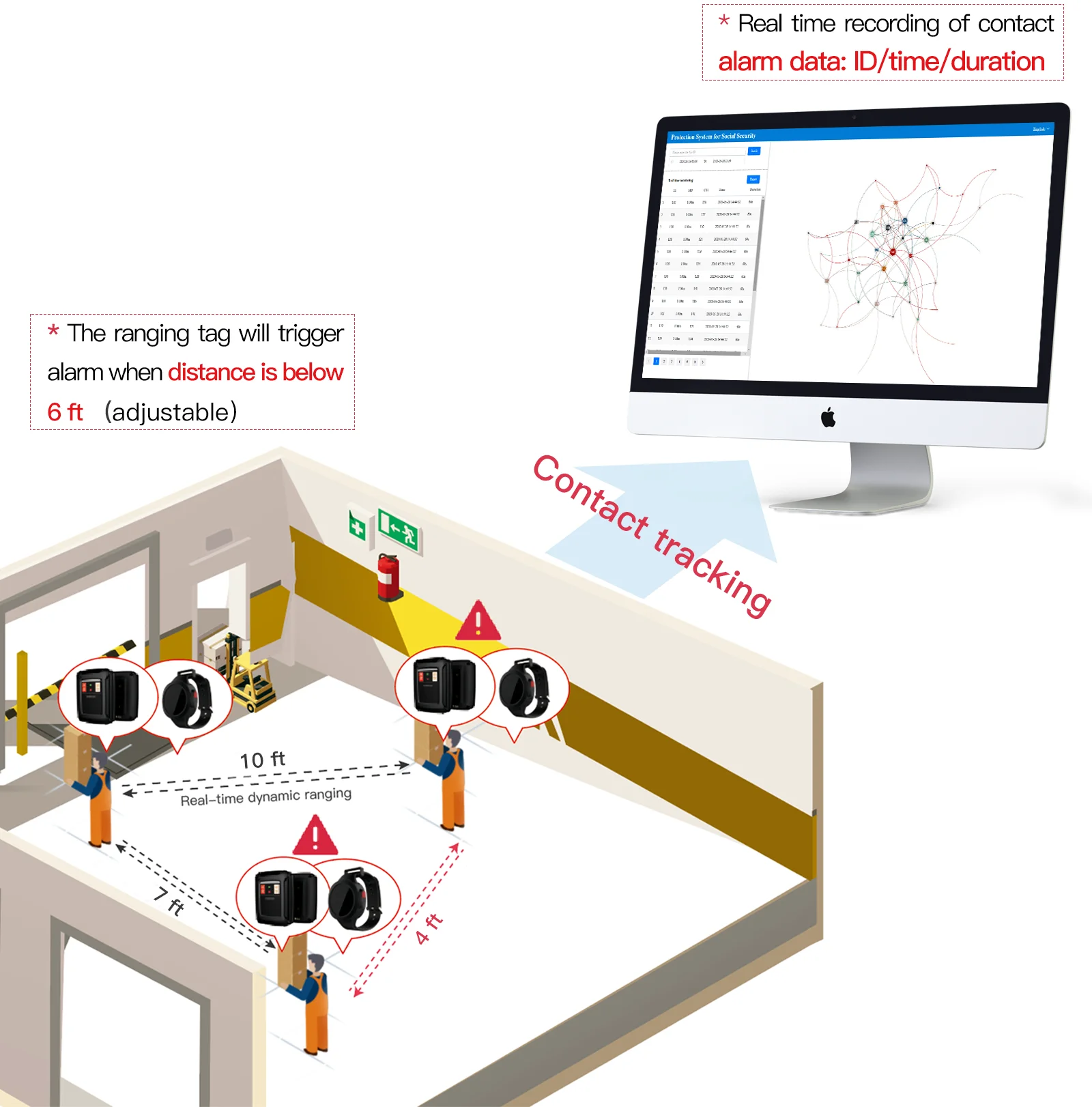

In the facility, every one should carry a ranging tag which can be a sticker tag or a wristband. Our alarm system continuously monitors the actual distance between two tags. Once the distance between two people is less than the approved parameter set in advance(e.g, 6 feet), the system will send alarm signals to them: both sound and vibration. So individuals know when to adjust their current distance to a proper social distance.
More importantly, each alarm event will be recorded in the tag and upload to the server through the wireless gateway or by the wired connection that the tag is connected to computer and then gets to the server via network, through which a contact tracing solution is achieved.
In the facility, every one should carry a ranging tag which can be a sticker tag or a wristband. Our alarm system continuously monitors the actual distance between two tags. Once the distance between two people is less than the approved parameter set in advance(e.g, 6 feet), the system will send alarm signals to them: both sound and vibration. So individuals know when to adjust their current distance to a proper social distance.
More importantly, each alarm event will be recorded in the tag and upload to the server through the wireless gateway or by the wired connection that the tag is connected to computer and then gets to the server via network, through which a contact tracing solution is achieved.

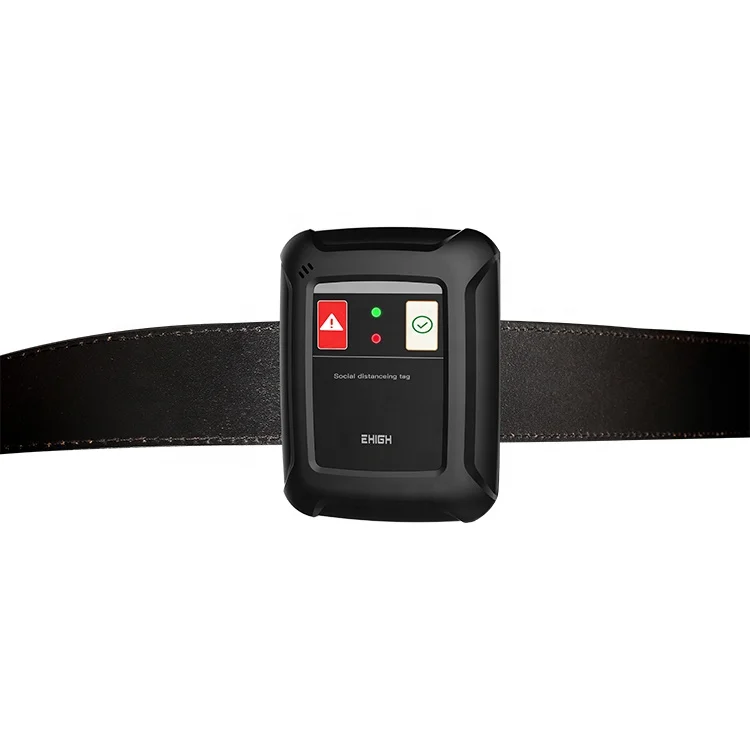

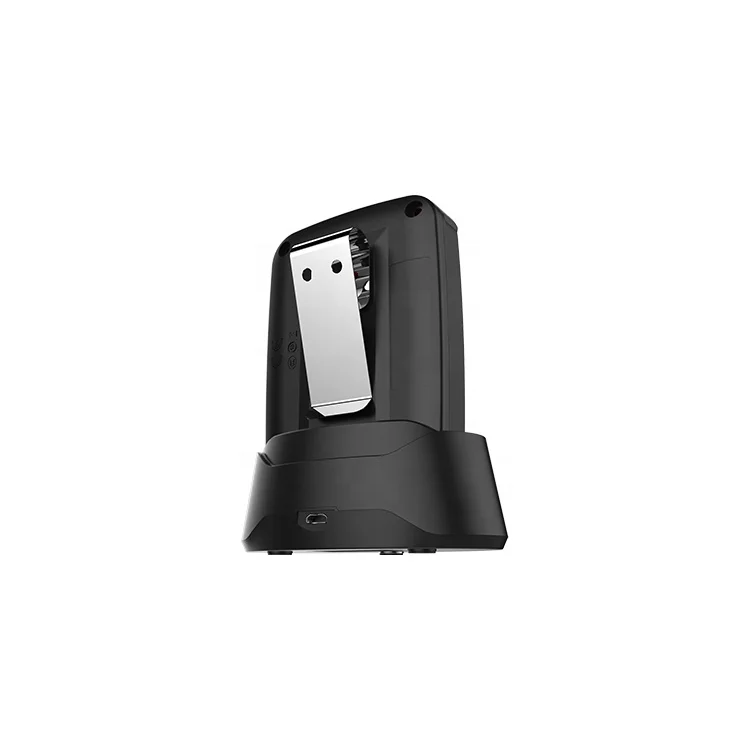

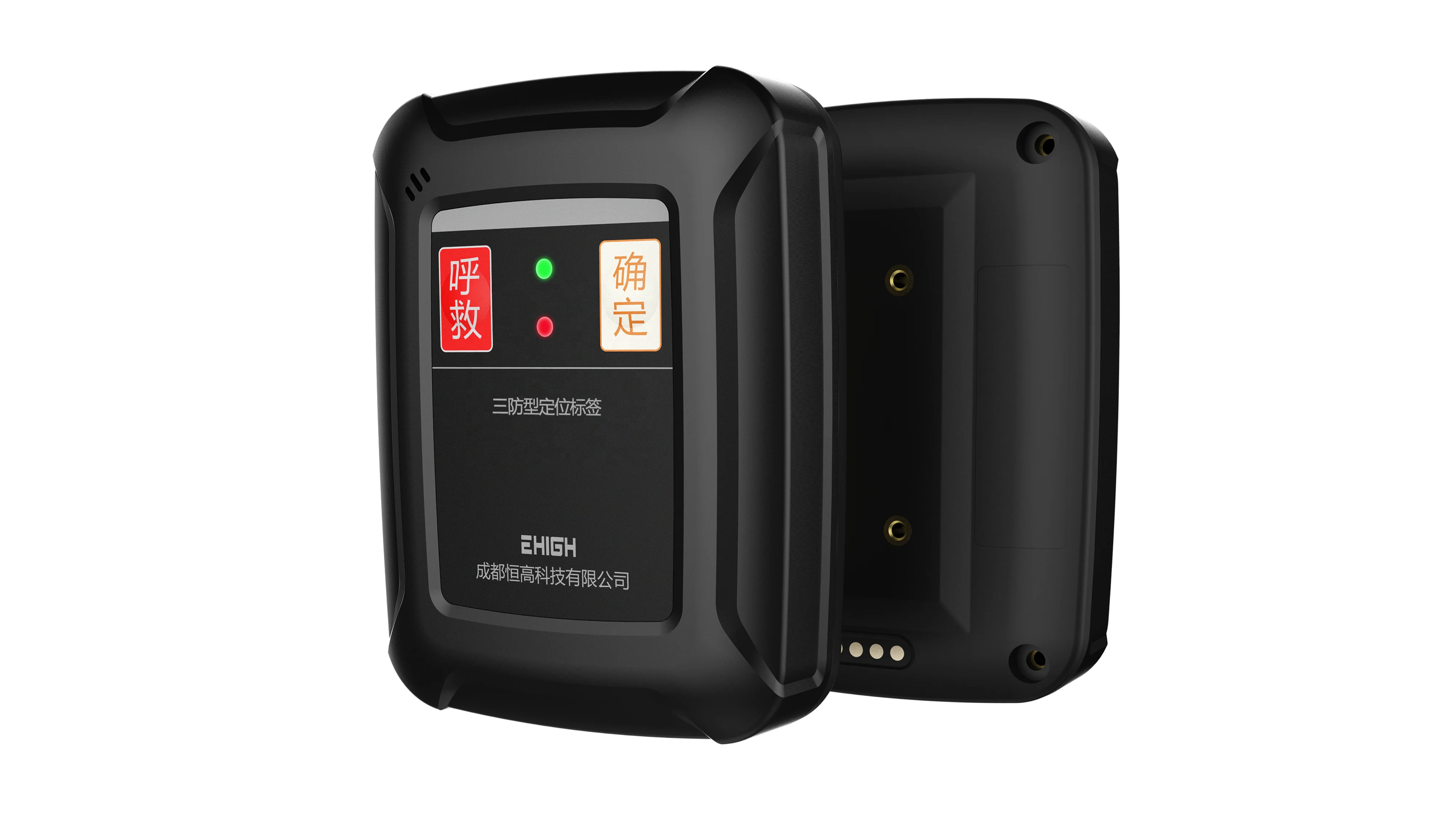

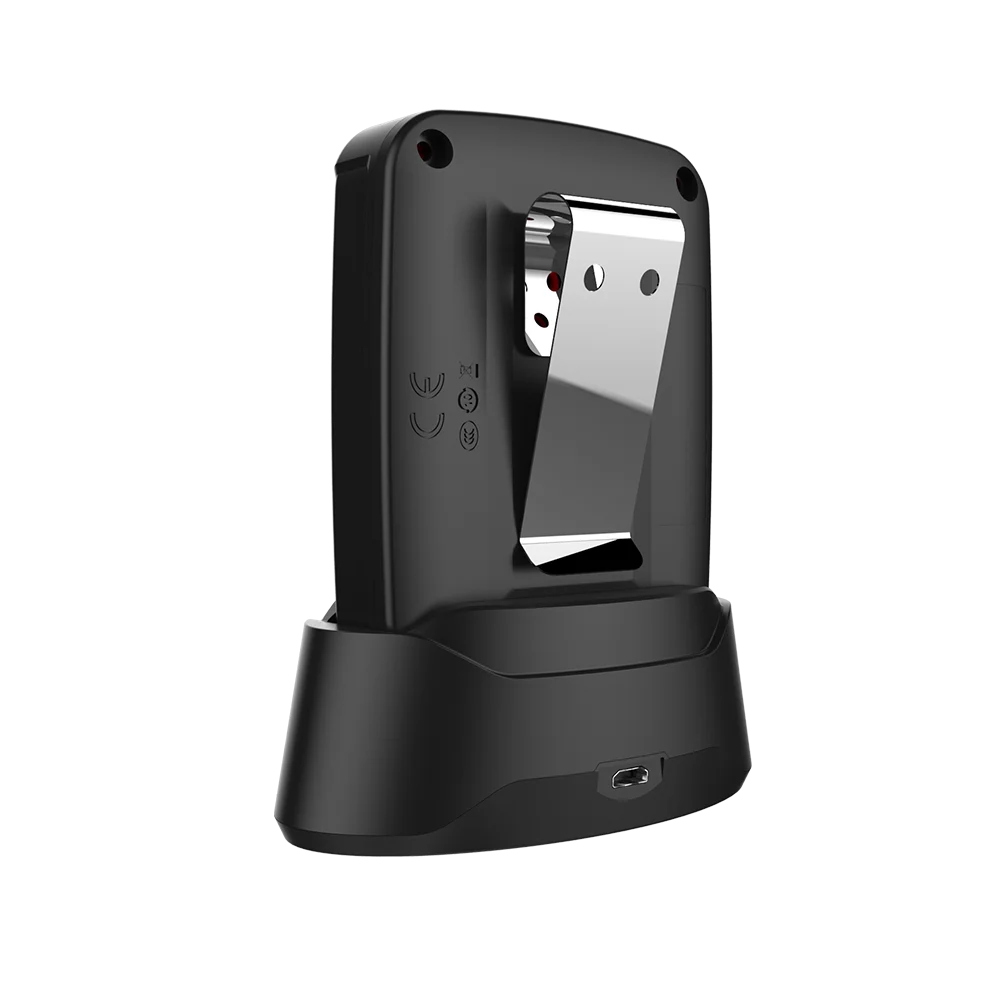

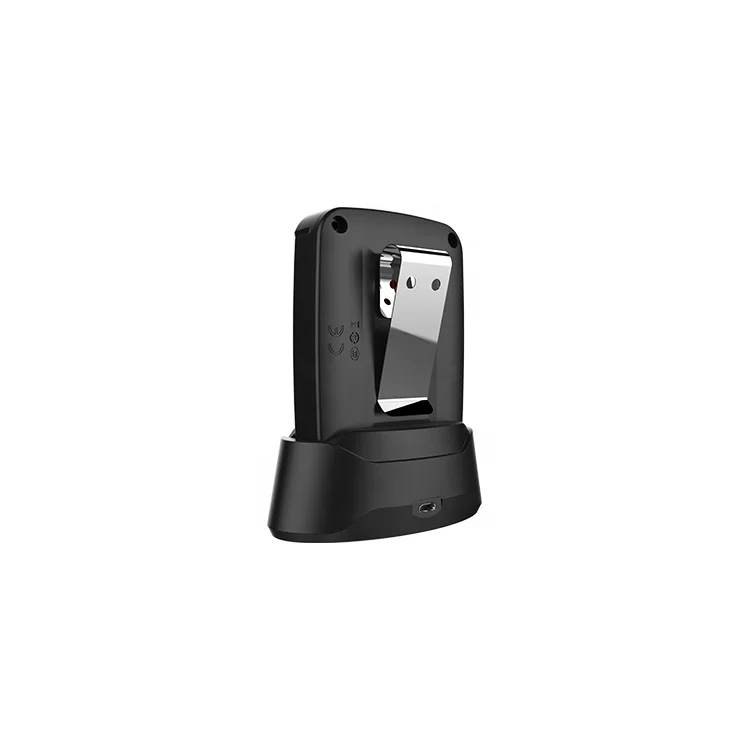

Social distancing tag (Easy to place on helmet or belt) | ||
EH100606A05-P | ||
Primary | Enhanced | |
1. Ranging Error: 10cm | 1. Ranging Error: 10cm | |
2. Operating temperature: -20~60℃ | 2. Operating temperature: -20~60℃ | |
3. IP67 | 3. IP67 | |
4. Working Hours 12h（chargeable） | 4. Working Hours 30h（chargeable） | |
Product Features
1.Precise distance measurement（the error within 10 centimeters）
2.Stable real-time monitoring
3.Proximity alert with both sound and vibration
4.Contact tracing
5.Adjustable alarm distance

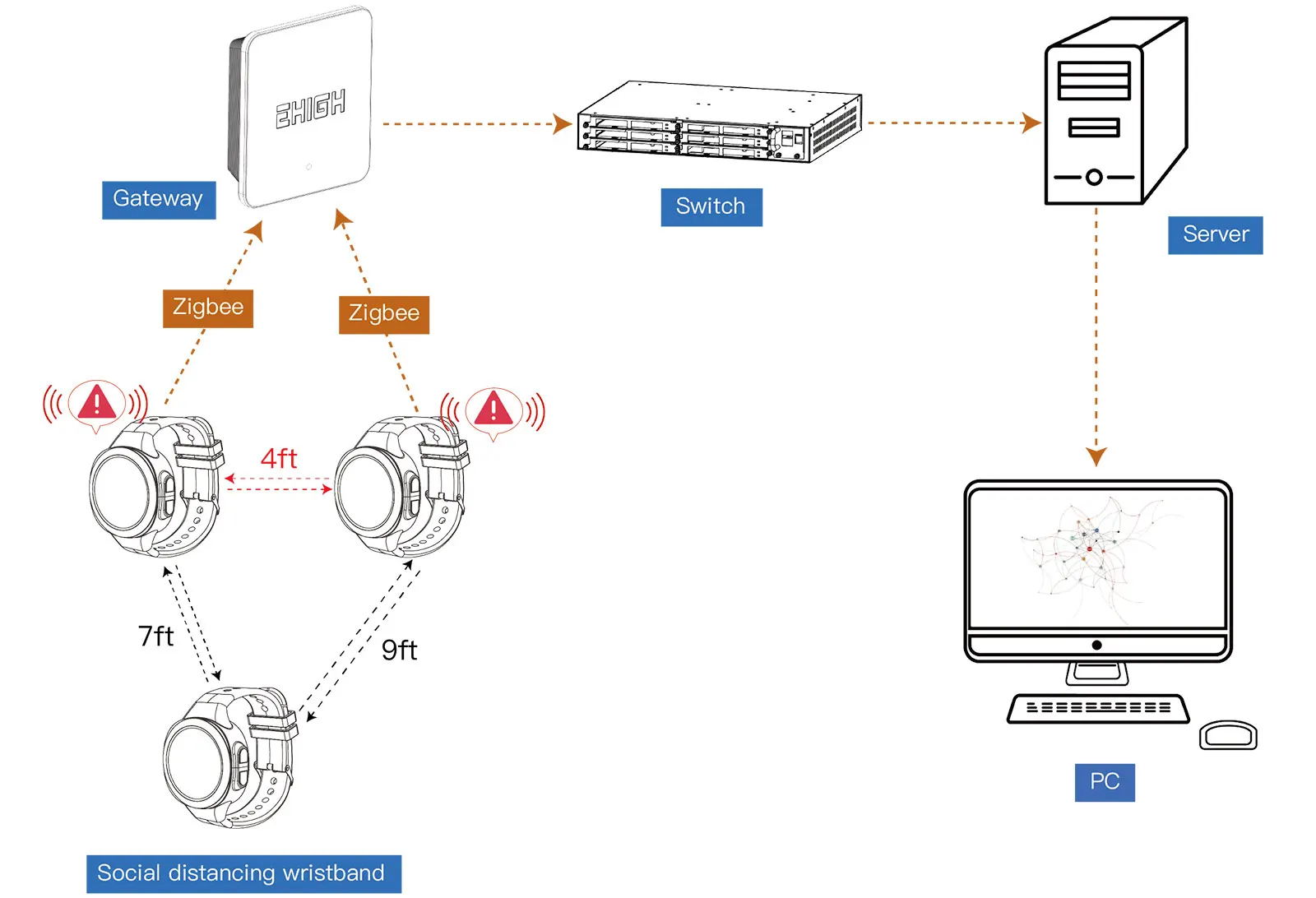

First solution
* With gateway, real-time upload of contact data, wide coverage

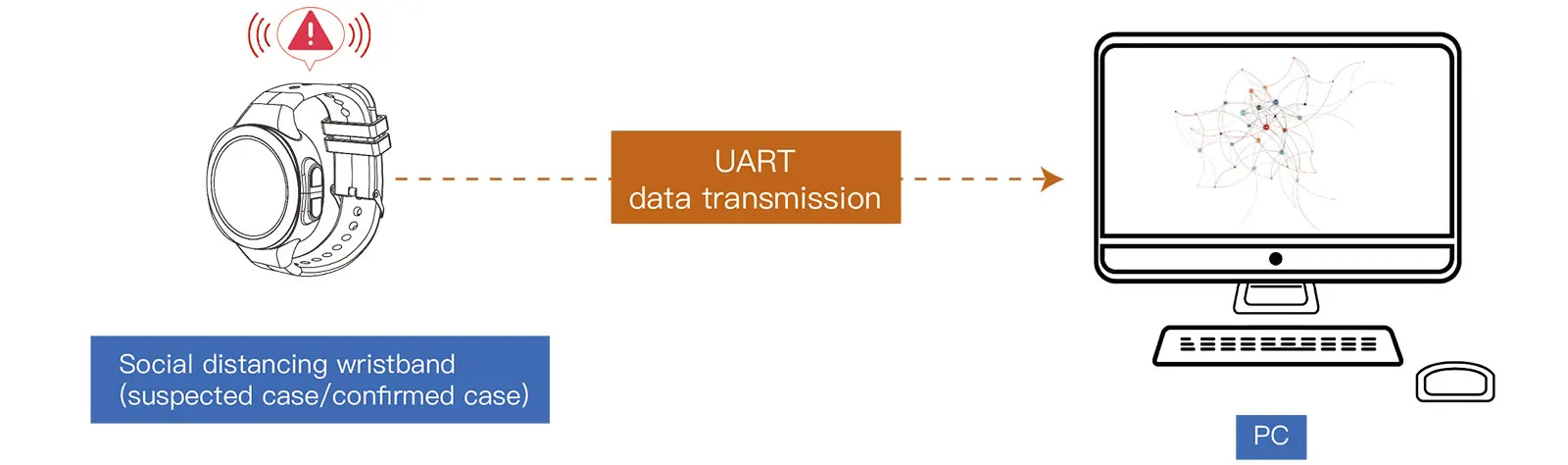

Second solution
* Wired connection, low investment cost, 30000 contact data storage
Application
Application industries
Building & Construction, Logistics & Warehousing, Manufacturing, Healthcare and Education:
Other application scenarios
The system can also ensure people’s safety if we put location tag on the forklifts, moving vehicles or other dangerous objects.
Certifications

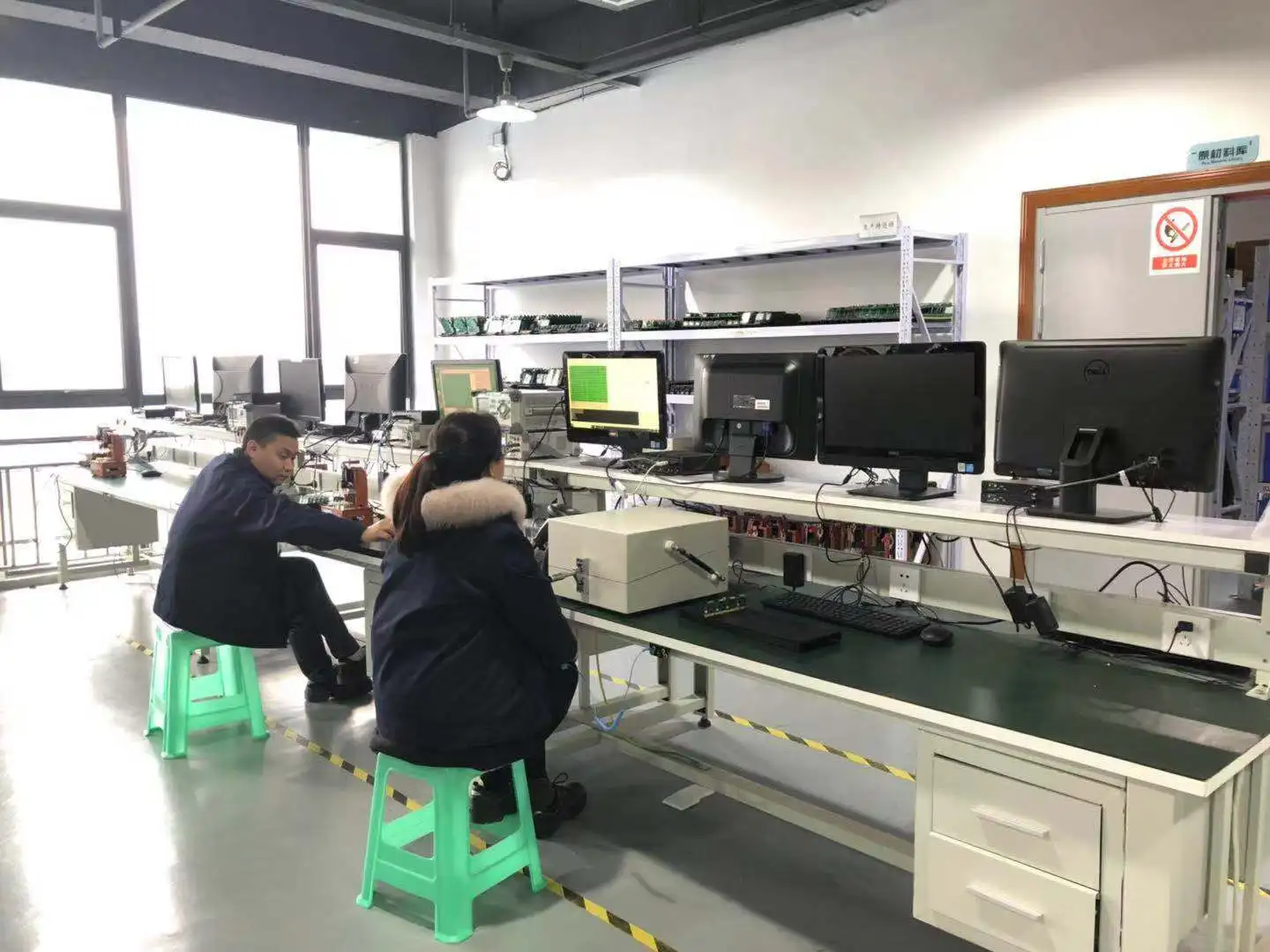

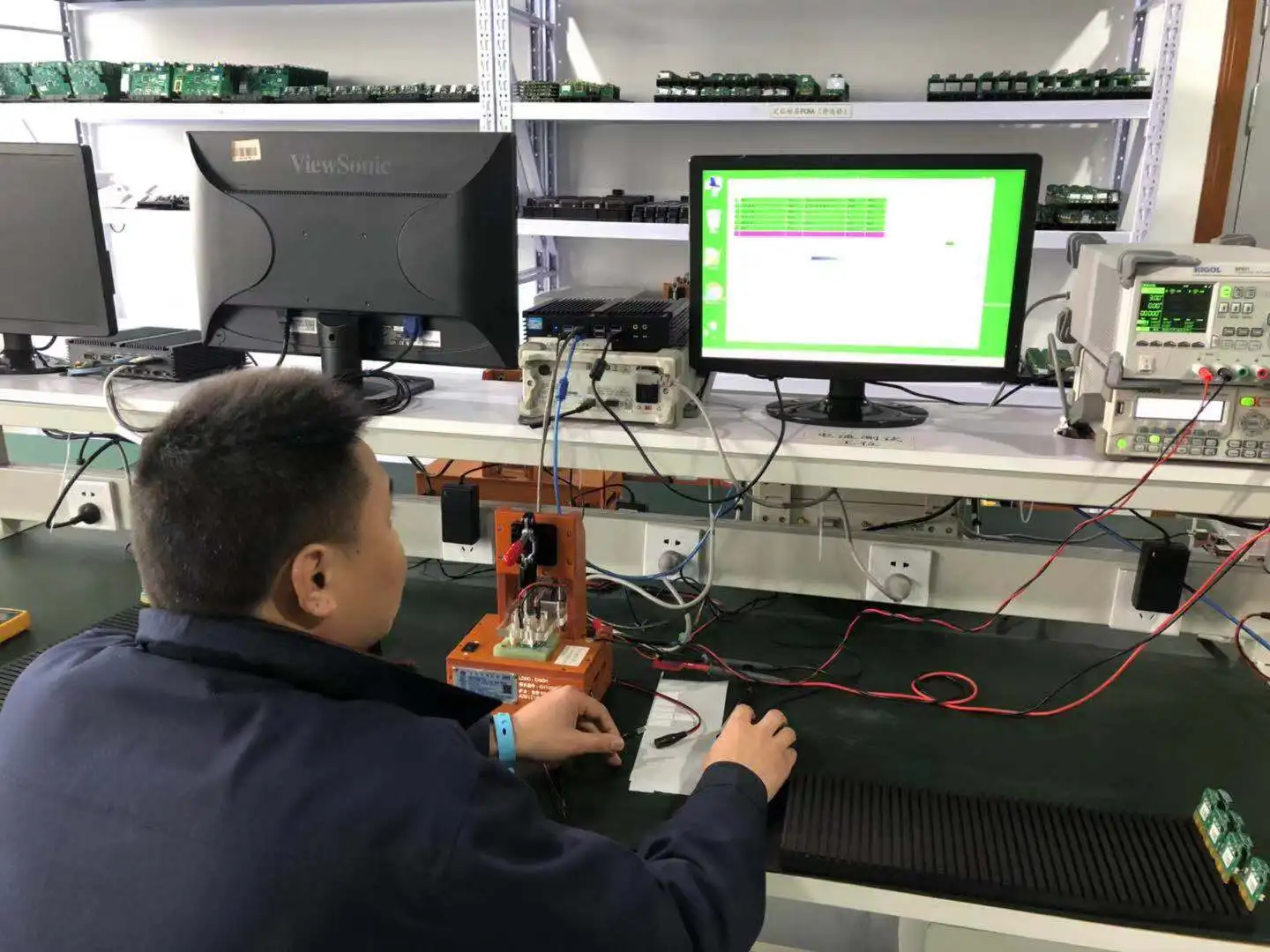

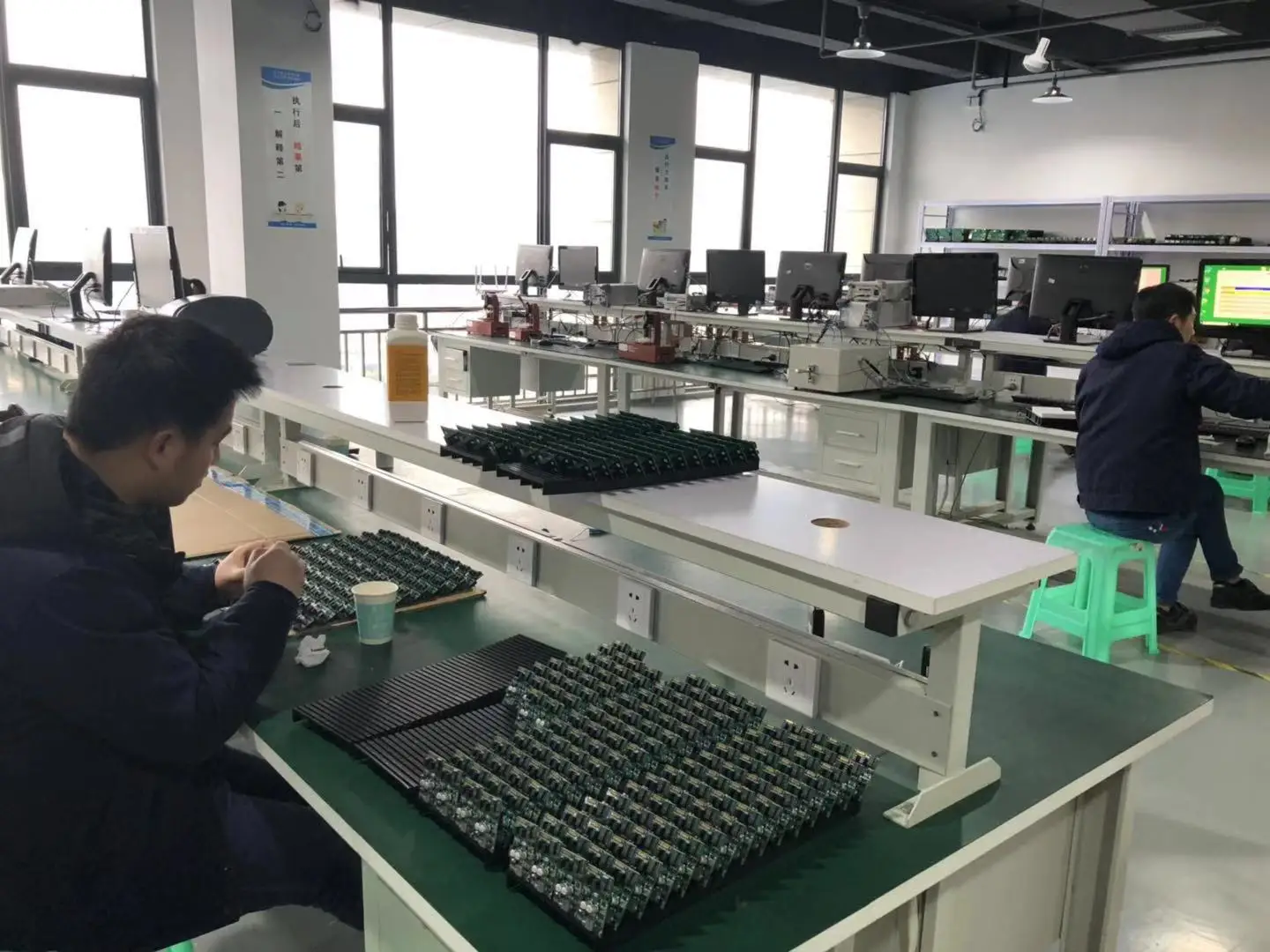

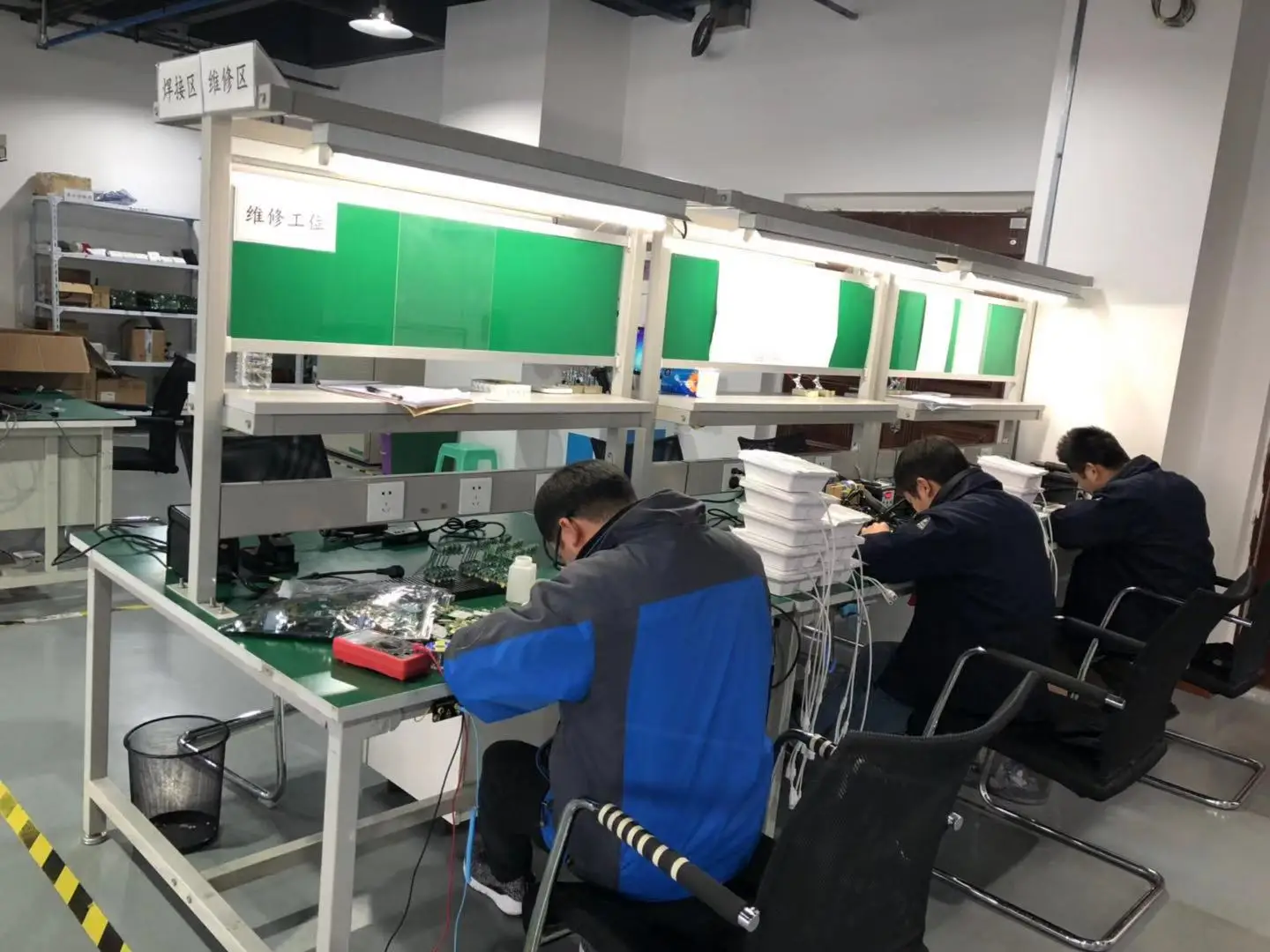

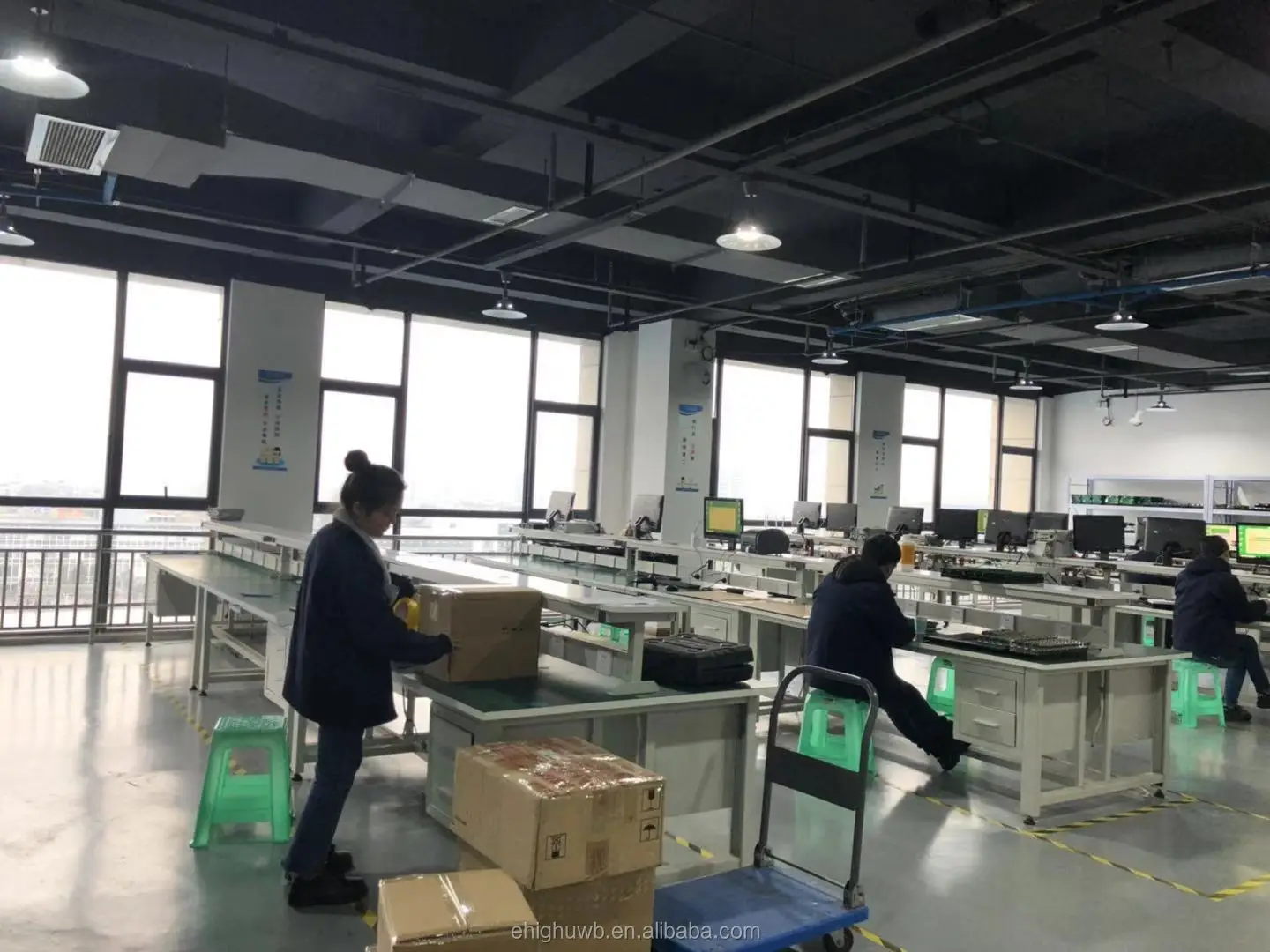

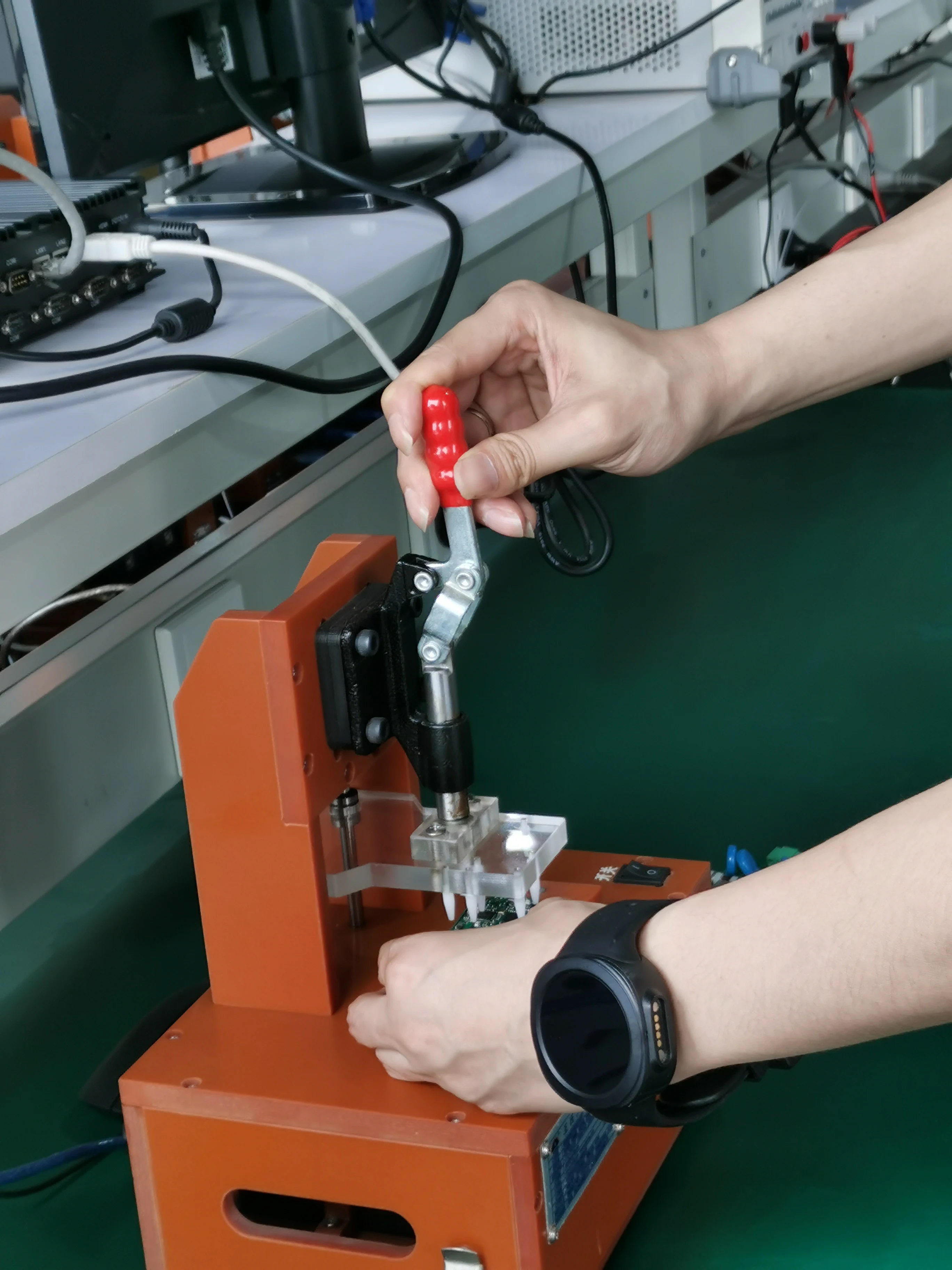

Production Process
Customer Photos
Exhibition

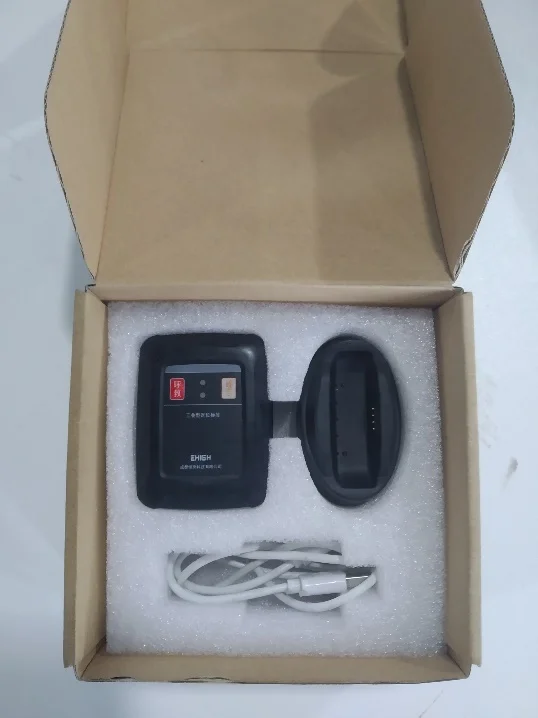

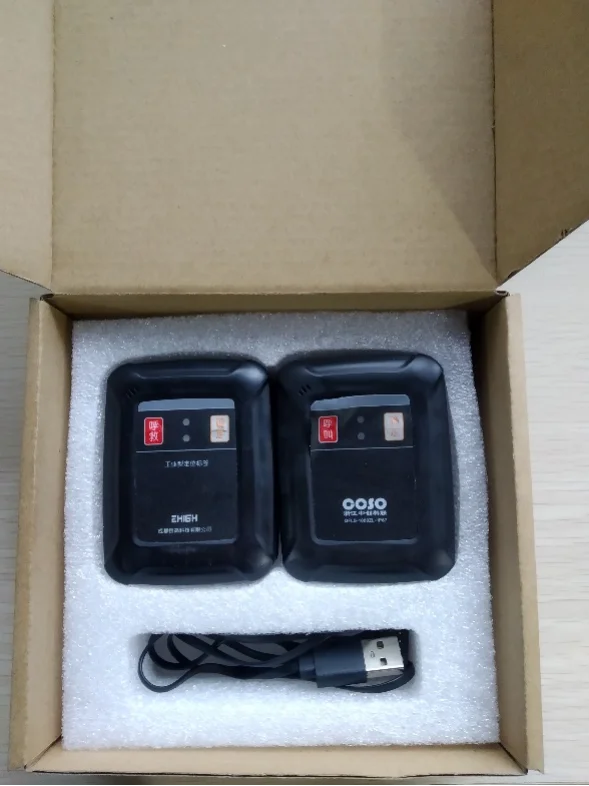

Packing&Shipping

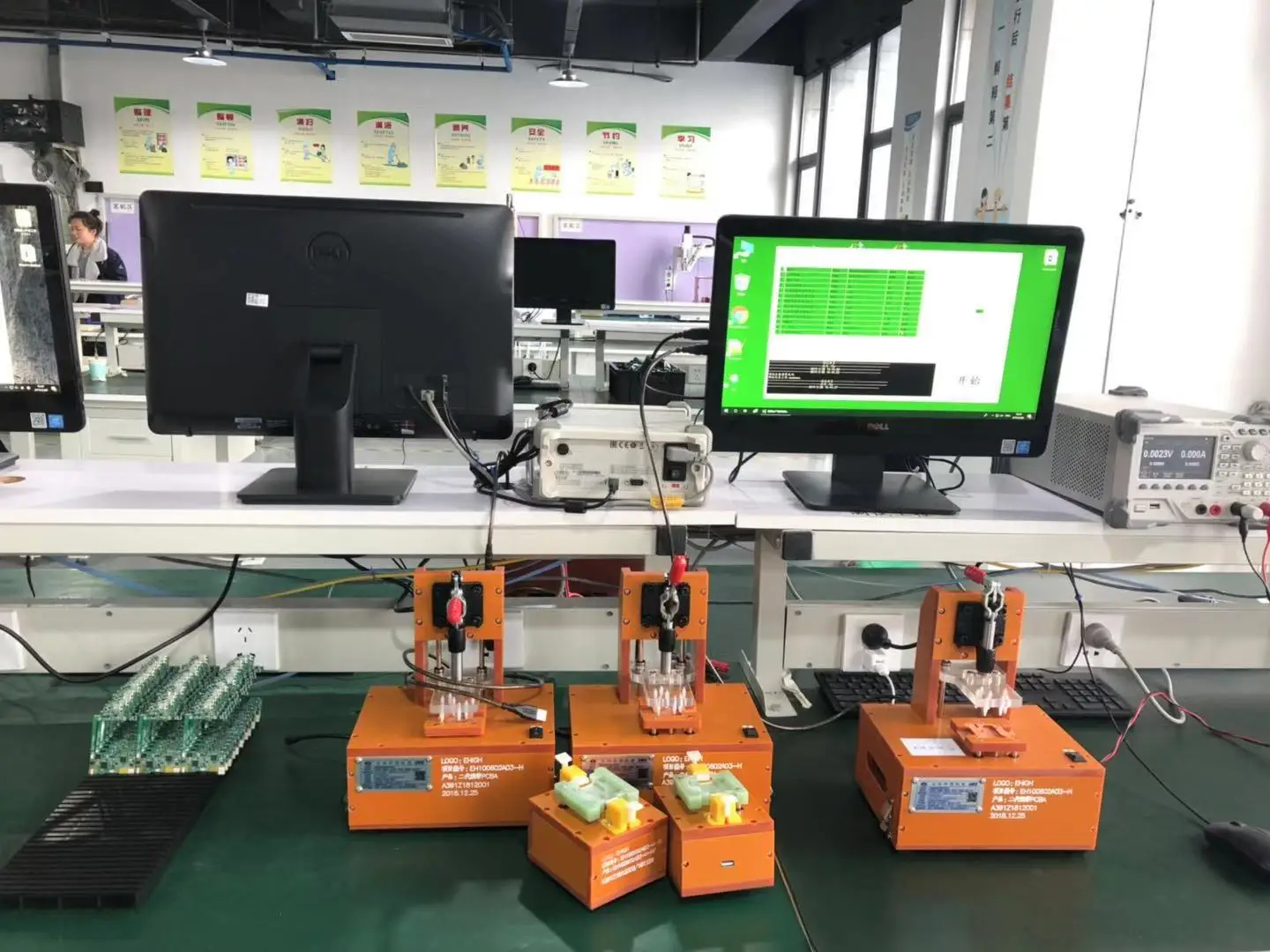

Highly standardized production process,which doesn't rely on Professional people,can be replicated quickly;dust-free plant with ESD protection;
PMS can track the real time production data which will be store permanently;
emphasizing quality,there are more than 50 ex-factory test indexes.
