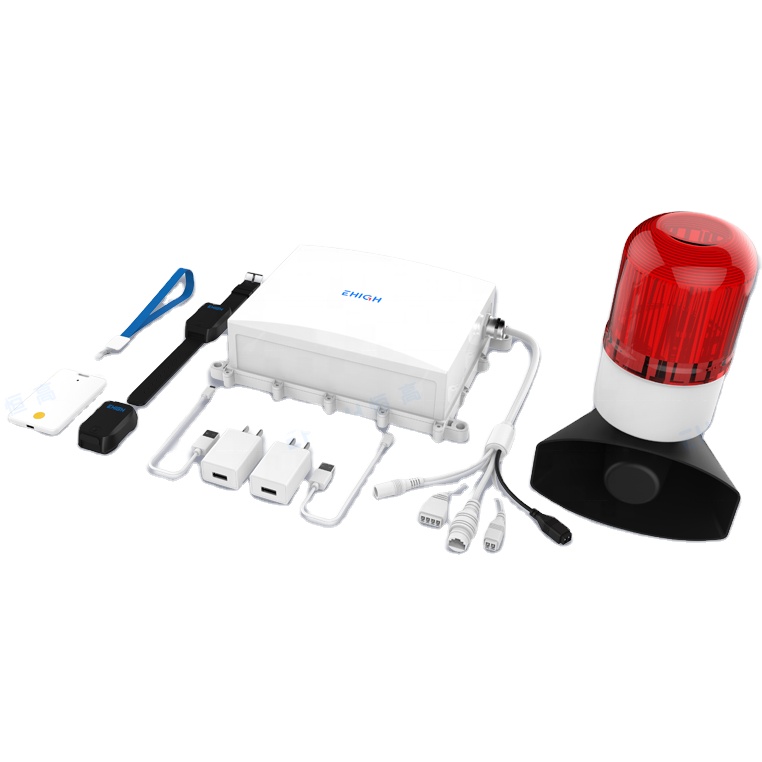

High-precision Forklift Anti-collision Warning System Outdoor Positioning System
- Category: Smart Tracker & Locator >>>
- Seller: ForThink,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Colission warning intelligent alarm system anti-collision system of forklift
Products Description
EHIGH forklift anti-collision system is a set of safety ranging systems developed independently based on UWBtechnology, with an accuracy of 10cm. Through accurate ranging and early warning,forklift accidents can be effectively prevented and the accurate position of personal and vehicles can be figured out in real time.The system is also featured by largecapacity,strong anti-multipath ability,low power consumption and so on.
There are mainly two kinds of equipment in the system: the ranging base station, and the ranging tag. In specific applications, the distance between the base stations, and between the base station and the tag represents the distance between vehicles and between vehicles and personnel respectively. When the distance is less than the set minimum value, the alarm and tag connected to the base station will issue a real-time alarm to prevent forklift collisions.
Place of Origin | China |
Sichuan | |
Brand Name | ehigh |
Certification | FCC |
Special Features | REMOTE CONTROL, Waterproof / Weatherproof |
Function | Alarm Warning |
Keyword | Anti-collision |
Application | Factory,personal,forklift anti-cillision |
Alarm range | 1-50m |
MOQ | 1 set |
Ranging accuracy | 10cm |
EHIGH Solution for the Anti-Collision and Ranging of Forklifts
Forklifts are widely used in transportation hubs, factory workshops, warehouses, circulation centers and distribution centers and so on, almost indispensable for workshops as a major means of transport. The operation is simple and convenient, but accidents also occur frequently. In recent years, the frequency of accidents related to forklifts has skyrocketed, therefore, it is the priority of all manufacturers to ensure the proper operation of forklifts.
Application scenario：

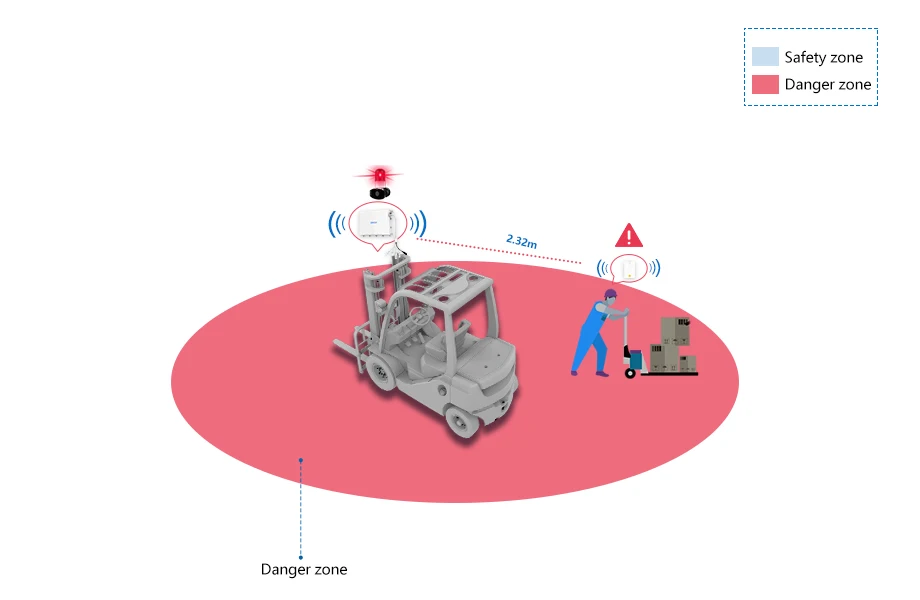

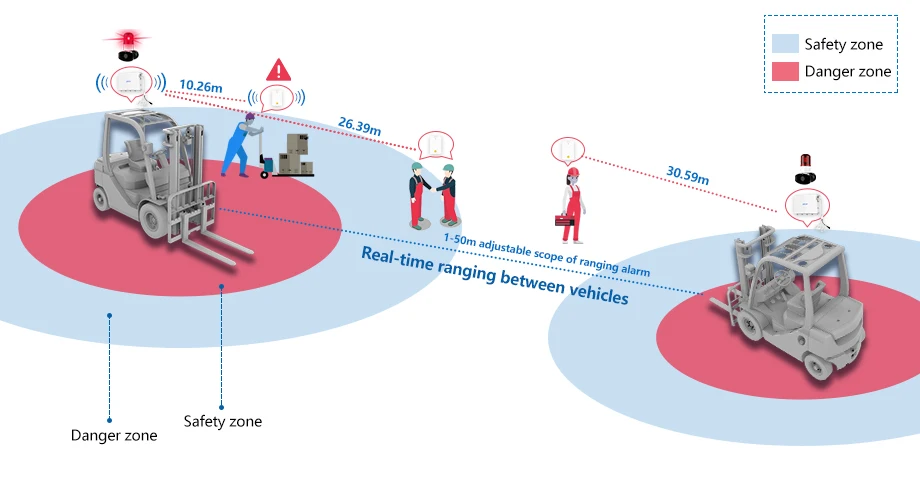

1.Anti-collision between personnel and vehicles
The forklift is equipped with a ranging base station and an acousto-optic alarm. Each personnel wears a ranging tag. When the distance between the personnel and the forklift is less than the alarm distance, the announciator and the tag will give out an alarm at the same time.

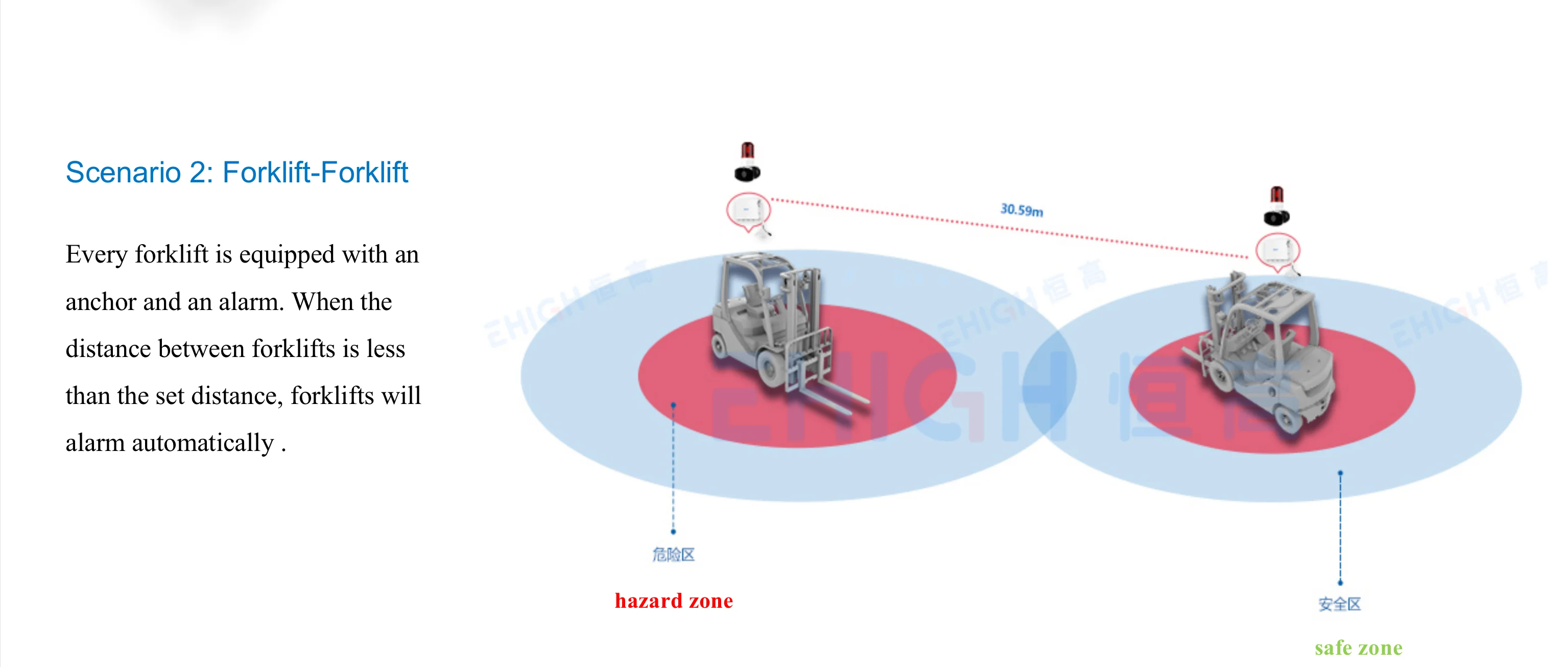

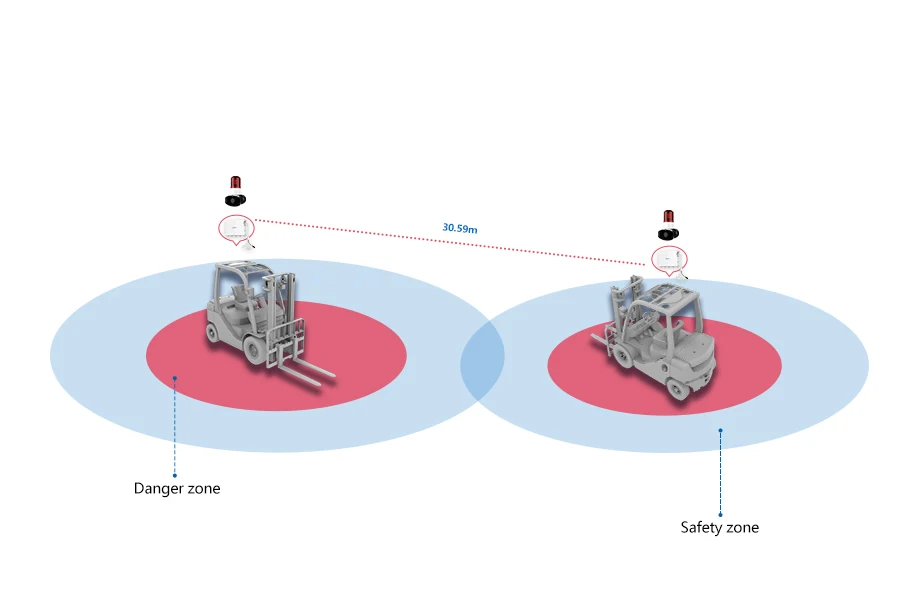

2.Anti-collision between vehicles
All forklifts are equipped with ranging base stations and acousto-optic alarms. When the distance between vehicles is less than the alarm distance, the vehicle will give an alarm automatically.

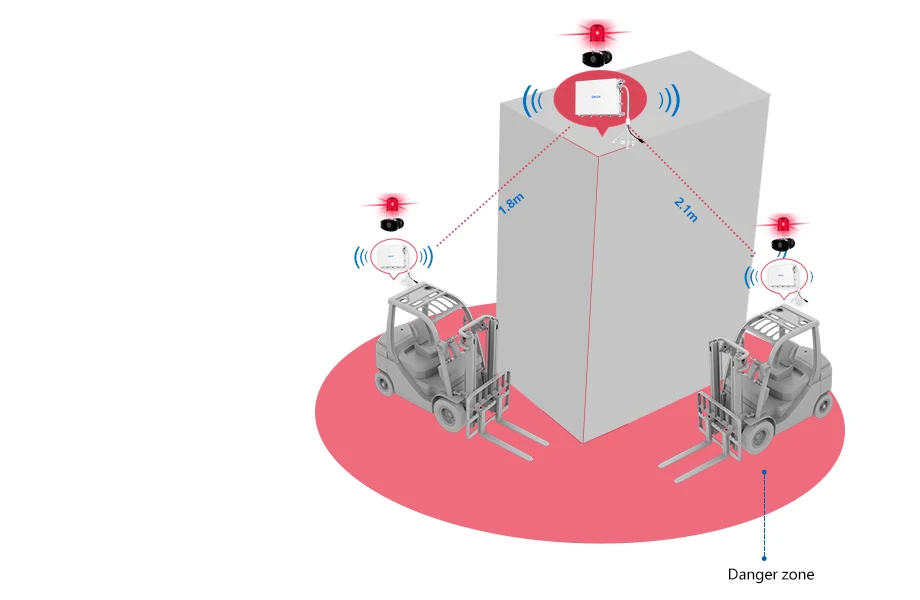

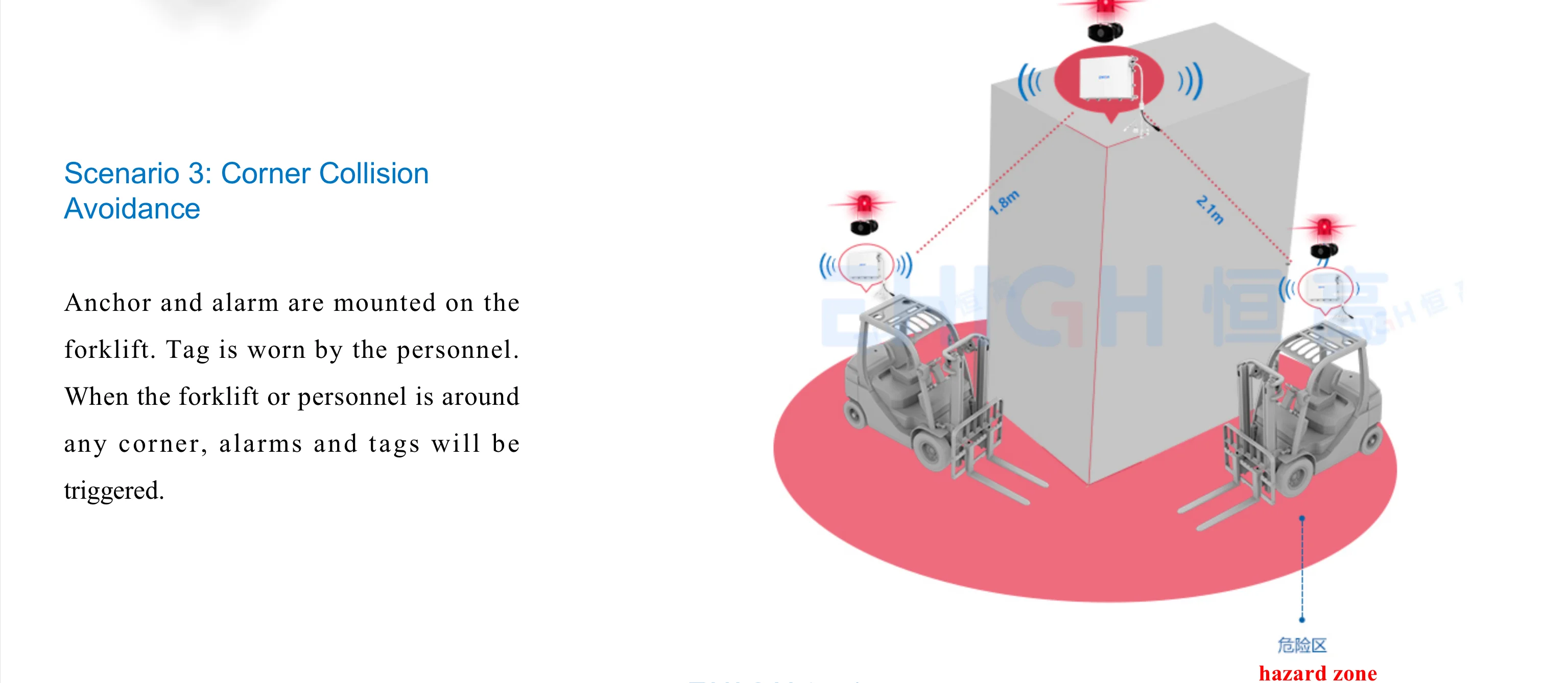

3: Corner anti-collision
Ranging base stations and acousto-optic alarms are installed at the corner of the workshop and on the forklifts. Personnel wear ranging tags, which will automatically give an alarm when the forklift or personnel approaches the corner.

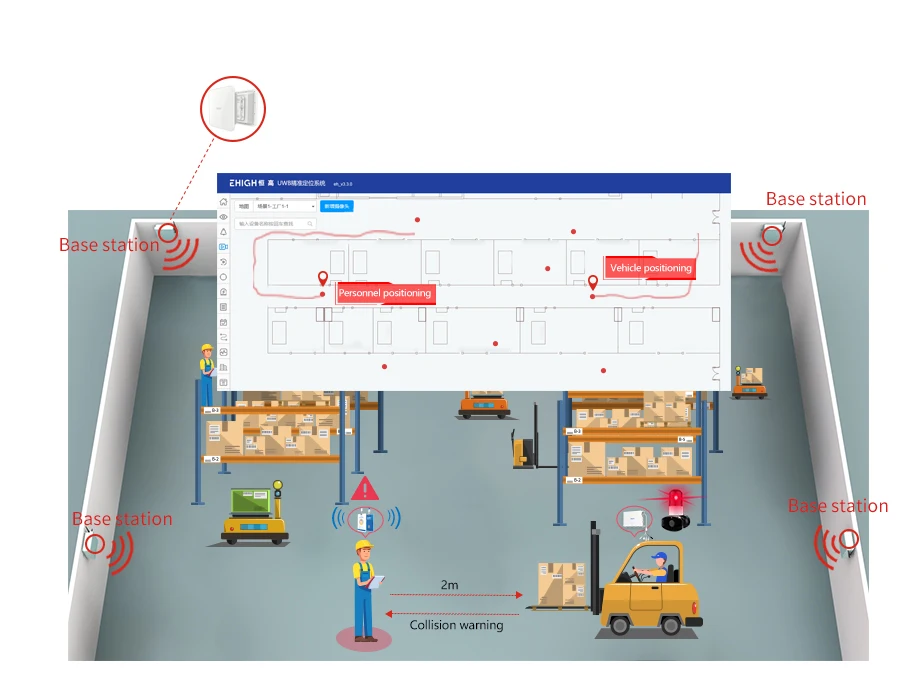

4: Fusion position application
The system has the function of positioning expansion and is applicable to EHIGH UWB positioning system.
The system enables the ranging between ranging base stations, and between ranging base stations and ranging tags. It also has high-precision positioning schemes. The system can realize the real-time position positioning of forklifts and personnel and has other functions based on the position information (track playback, electronic fence, video linkage, etc.)

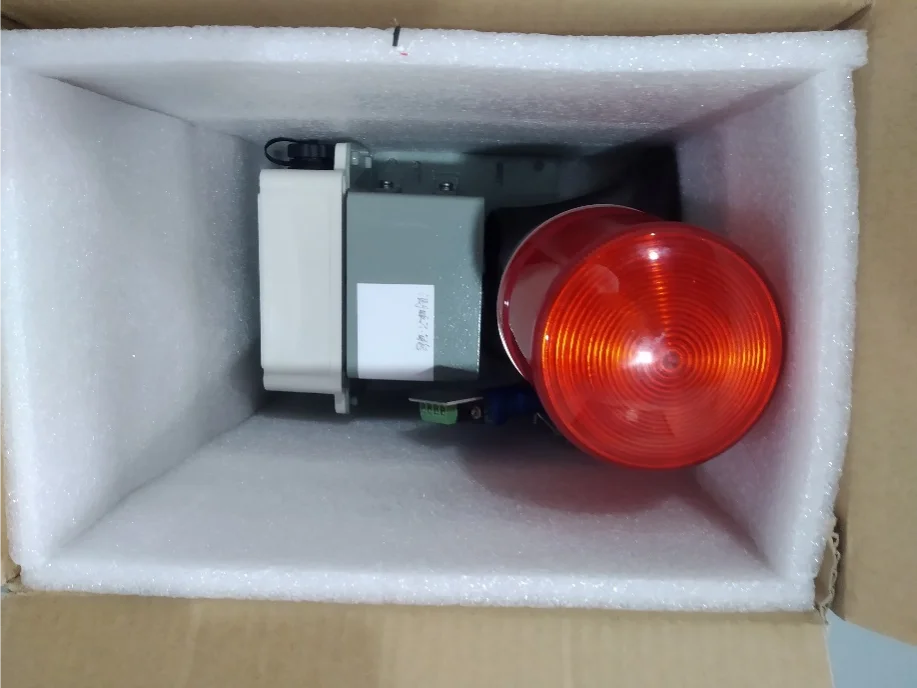

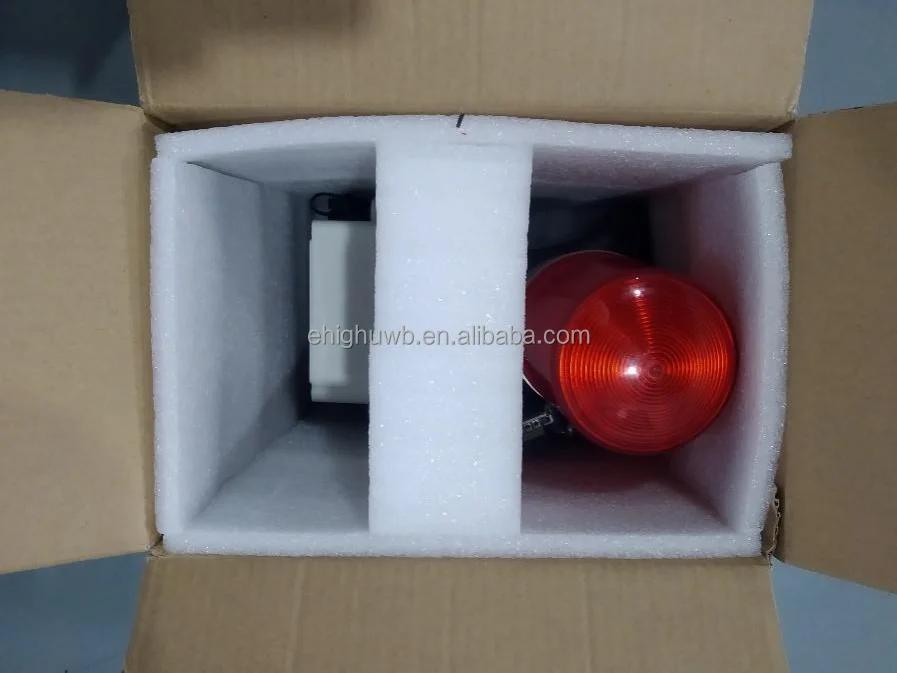

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

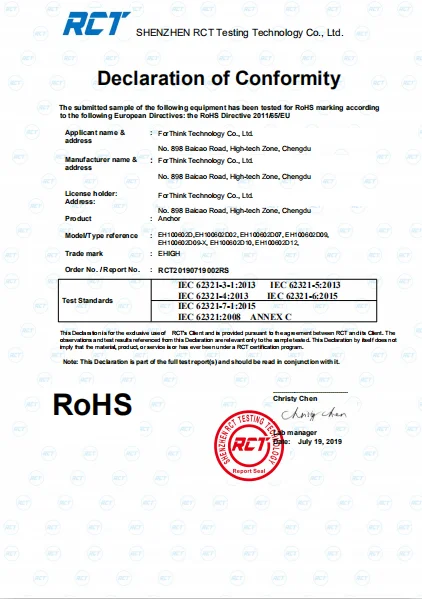

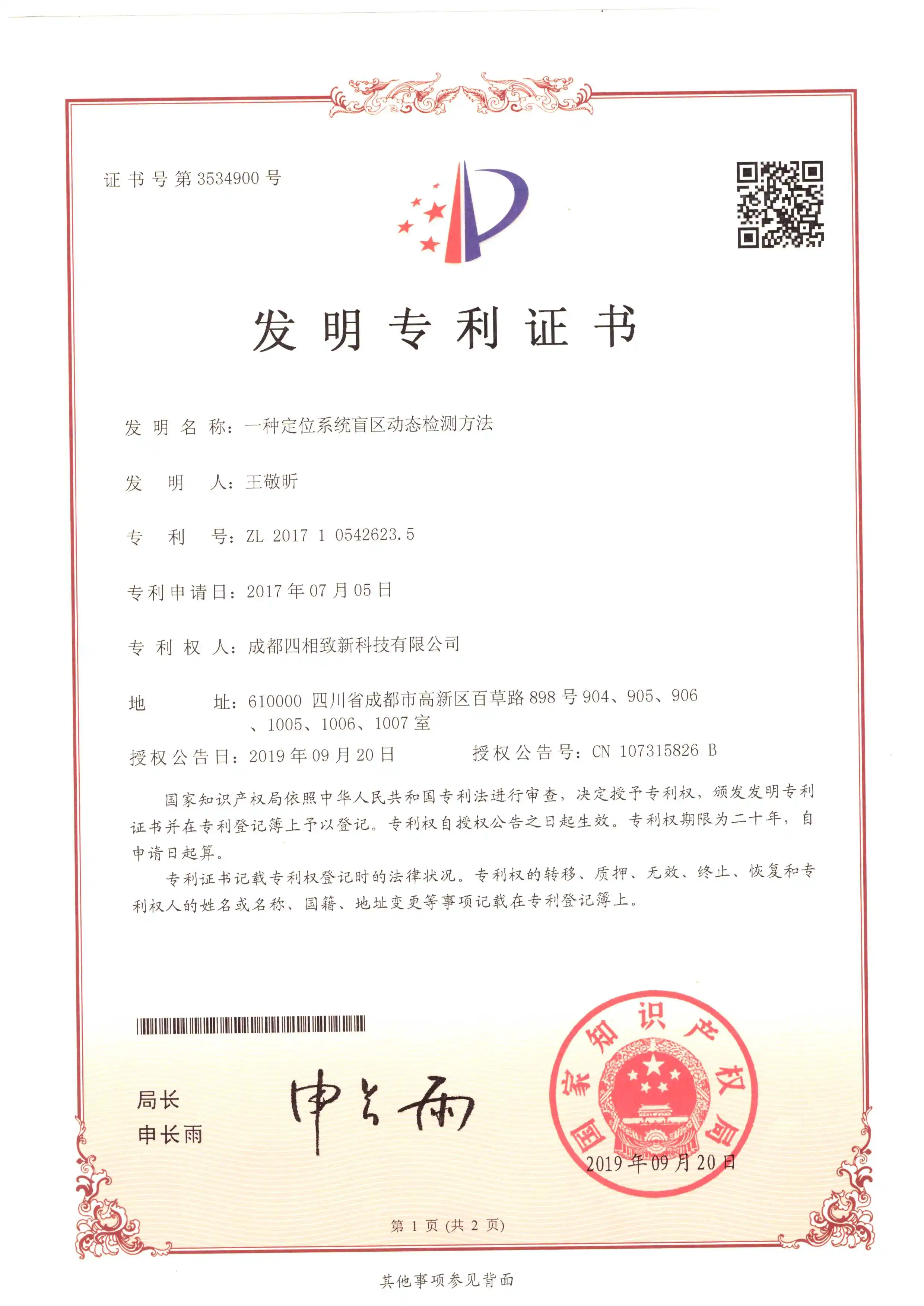

Certifications

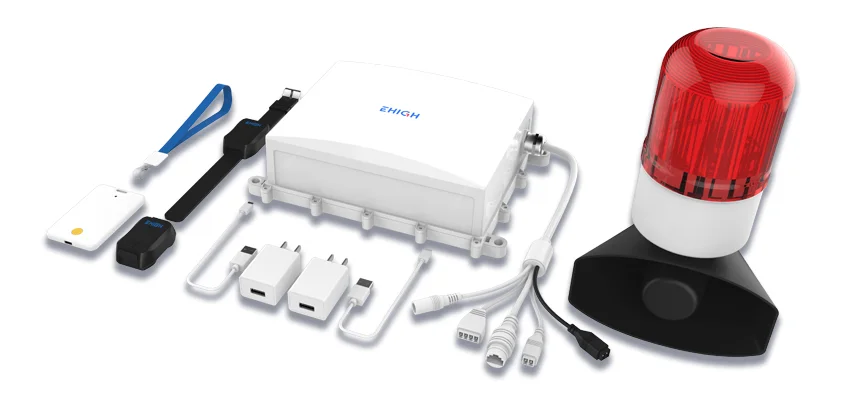

System Composition
First Part：

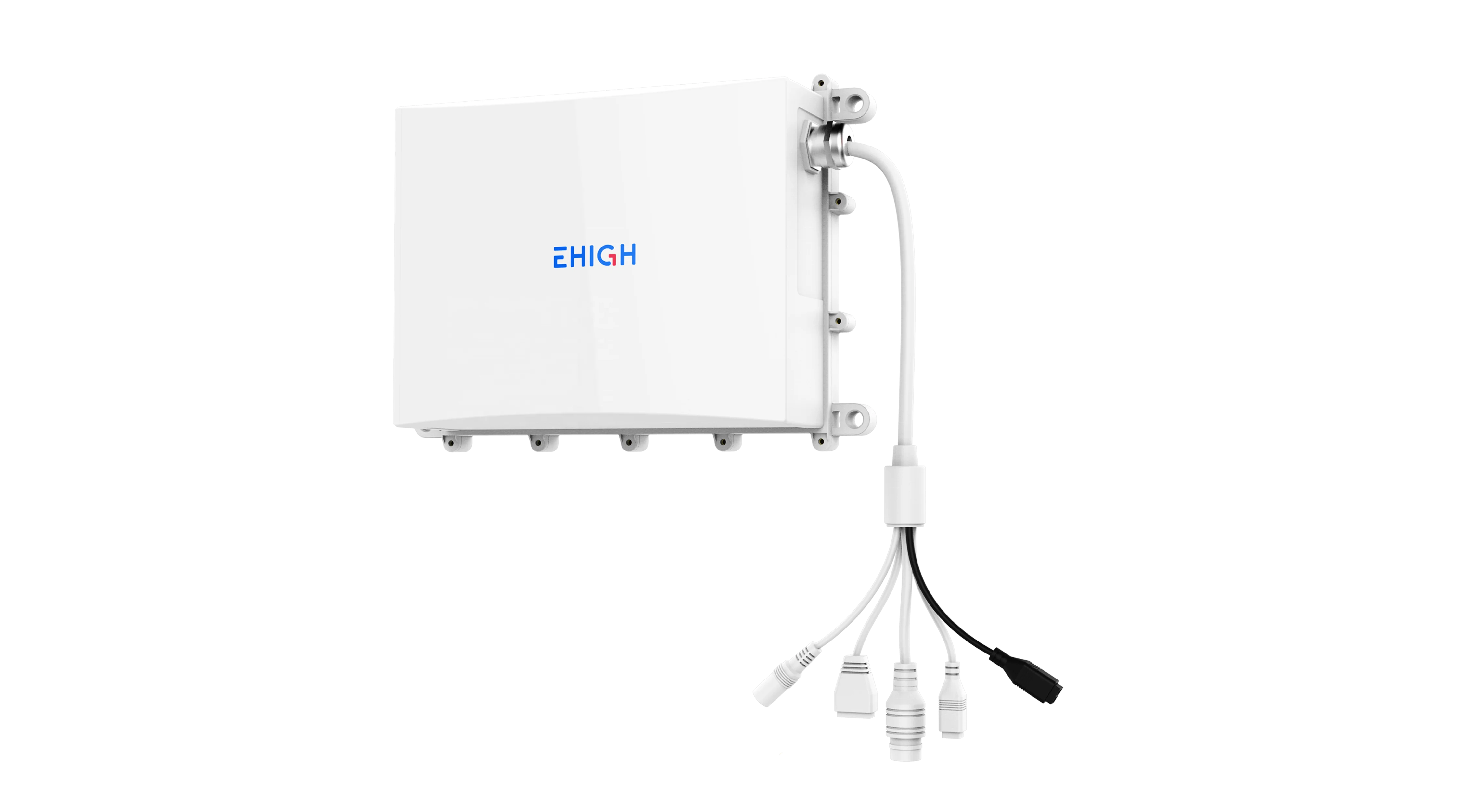

EHIGH anti-collision ranging base station：
* Model：EH100608D01
* Ranging accuracy：10cm
* Protection grade: IP67 (soakable)
* Power supply range: standard POE power supply / 9-48VDC
* Alarm interface: support switch interface and 485 interface
* Communication interface: POE, 485, CAN
* Alarm range：1-50m
* Model：EH100608D01
* Ranging accuracy：10cm
* Protection grade: IP67 (soakable)
* Power supply range: standard POE power supply / 9-48VDC
* Alarm interface: support switch interface and 485 interface
* Communication interface: POE, 485, CAN
* Alarm range：1-50m

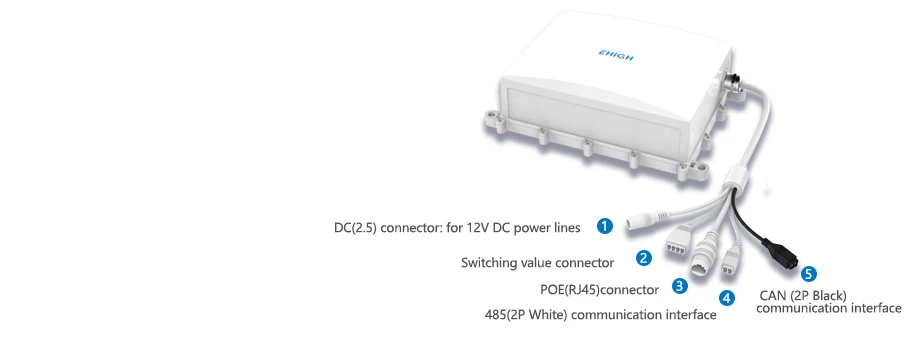

Appearance:
* DC(2.5) connector: for 12V DC power lines
* switching value connector
* POE(RJ45)connector
* 485 (2P White) communication interface
* CAN (2P Black) communication interface
* switching value connector
* POE(RJ45)connector
* 485 (2P White) communication interface
* CAN (2P Black) communication interface
Second Part：

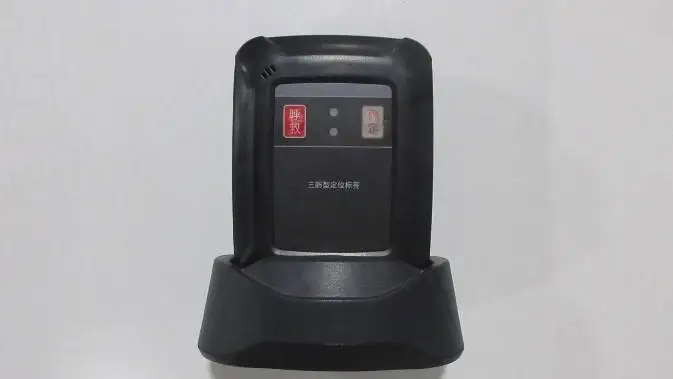

EHIGH anti-collision ranging tag：
* Model：EH100608A
* Ranging accuracy：10cm
* Protection grade：IP67
* Interactive functions: voice/ acousto-optic effect/ vibration
* embedded (compatible with multifunctional E-cards)
* Alarm range：1-50m
* Ranging accuracy：10cm
* Protection grade：IP67
* Interactive functions: voice/ acousto-optic effect/ vibration
* embedded (compatible with multifunctional E-cards)
* Alarm range：1-50m
Third Part：

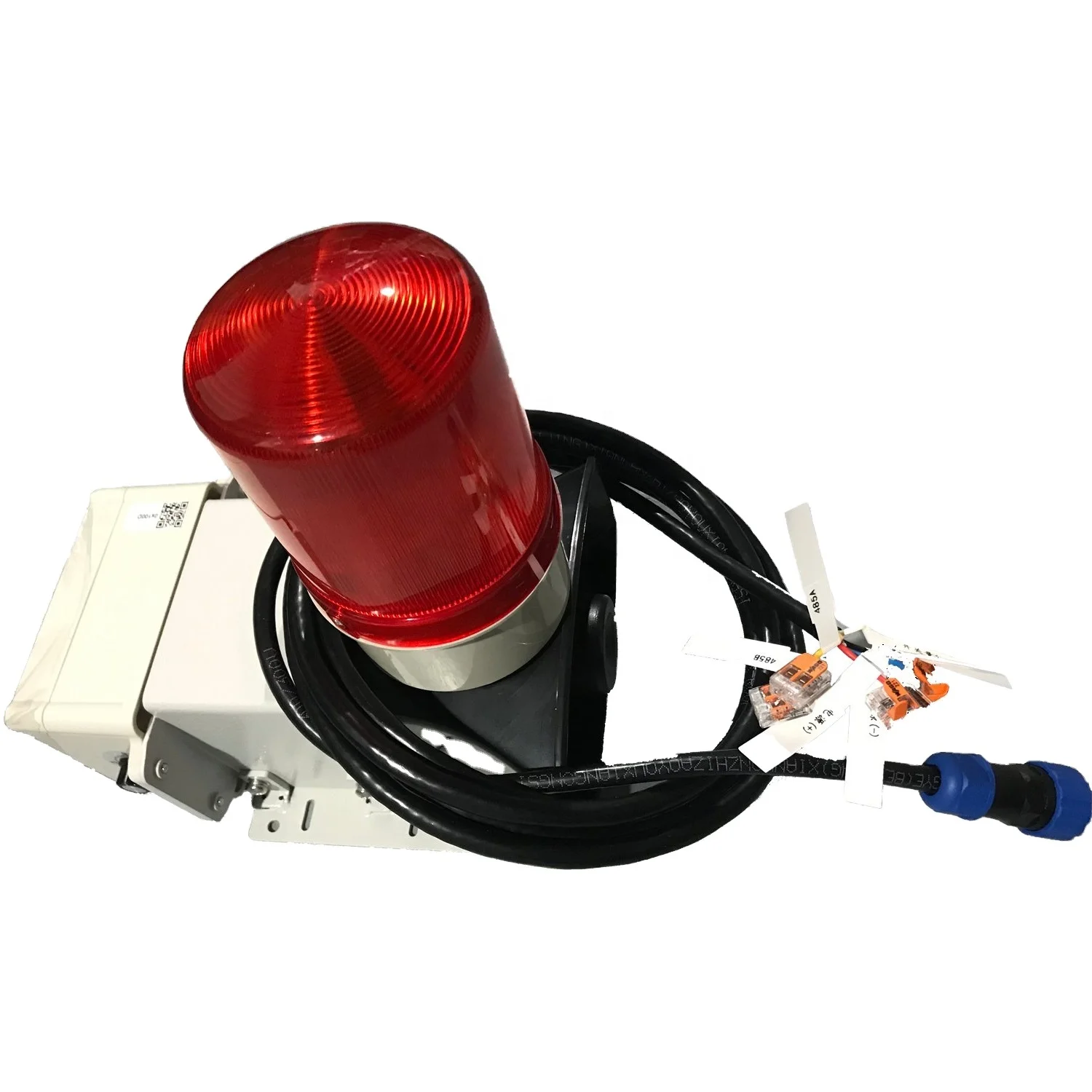

Acousto-optic alarm：
*The alarm sound is the same as that of the fire alarm by default.
*The sound intensity can be set with configuration tools.
*Voice alarm can be customized.
*The sound intensity can be set with configuration tools.
*Voice alarm can be customized.
Company Profile
As an expert in U W B positioning, "E HIGH" remains one of the world's leading 10 cm high-precision positioning service providers, and has always been committed to providing customers with customized services integrating positioning software, hardware and precise positioning solutions.
The R&D team and core technologies of "E HIGH" are derived from Electronic Science and Technology and Information and Communication Engineering-being national key disciplines of University of Electronic Science and Technology of China that share the first place in the national ranking.
Six years of experience accumulation in product development including such product lines as industrialized HEN G J I TM high-precision radio positioning products and HEN G Y ING TM artificial intelligence visual products and S D K secondary development platform.
Eight years of experience accumulation in such specialties as mobile communication, radar, microwave circuit, cloud computing, and big data processing, etc.
500+ industry application experience covering 500+ application scenarios such as intelligent manufacturing, petrochemical industry, power and energy, public security and justice, etc.
More than 40 national patents including invention patents, utility model patents, design patents, etc.
Eight years of experience accumulation in such specialties as mobile communication, radar, microwave circuit, cloud computing, and big data processing, etc.
500+ industry application experience covering 500+ application scenarios such as intelligent manufacturing, petrochemical industry, power and energy, public security and justice, etc.
More than 40 national patents including invention patents, utility model patents, design patents, etc.
EHIGH is making its contribution to the prosperous development of smart I O T and Industry 4.0.
I O T High-Tech Enterprise The ISO 9001 quality management system certification.
FAQ
1. who are we?
We are based in Sichuan, China, start from 2019,sell to Domestic Market(00.00%),Western Europe(00.00%),Southeast Asia(00.00%),Mid East(00.00%),North America(00.00%),Eastern Asia(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?

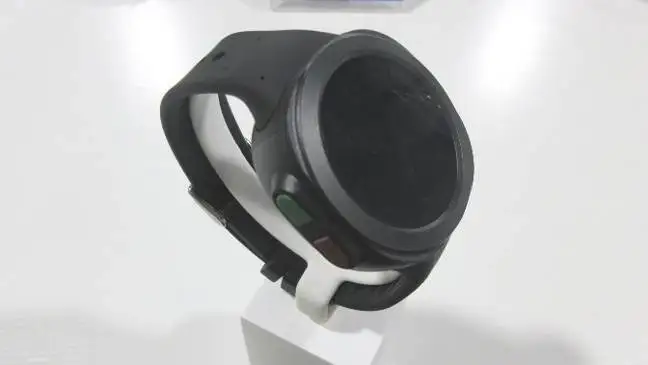

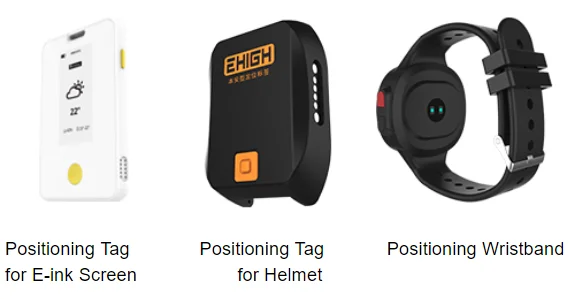

Social Distance Bracelet,Social Distance Tag,UWB Positioning Tag,UWB Positioning Base Station
