Product Overview

Description

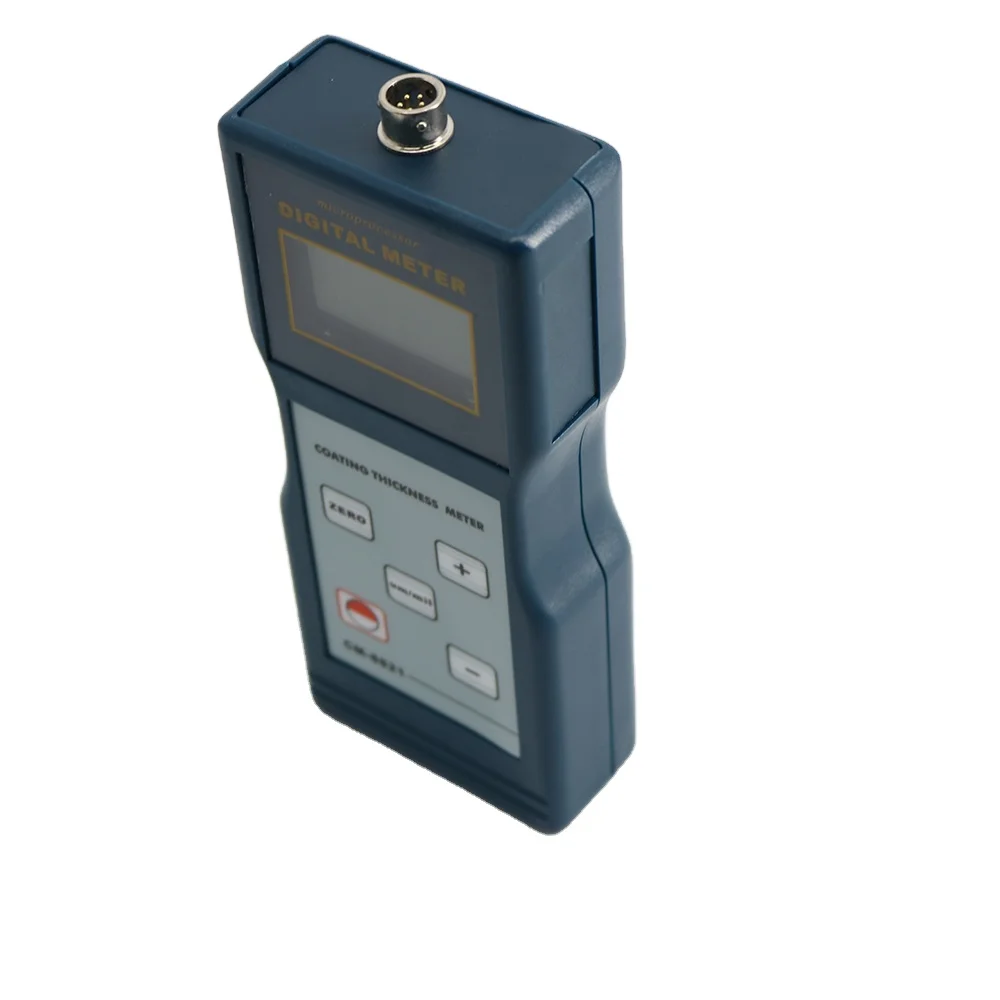

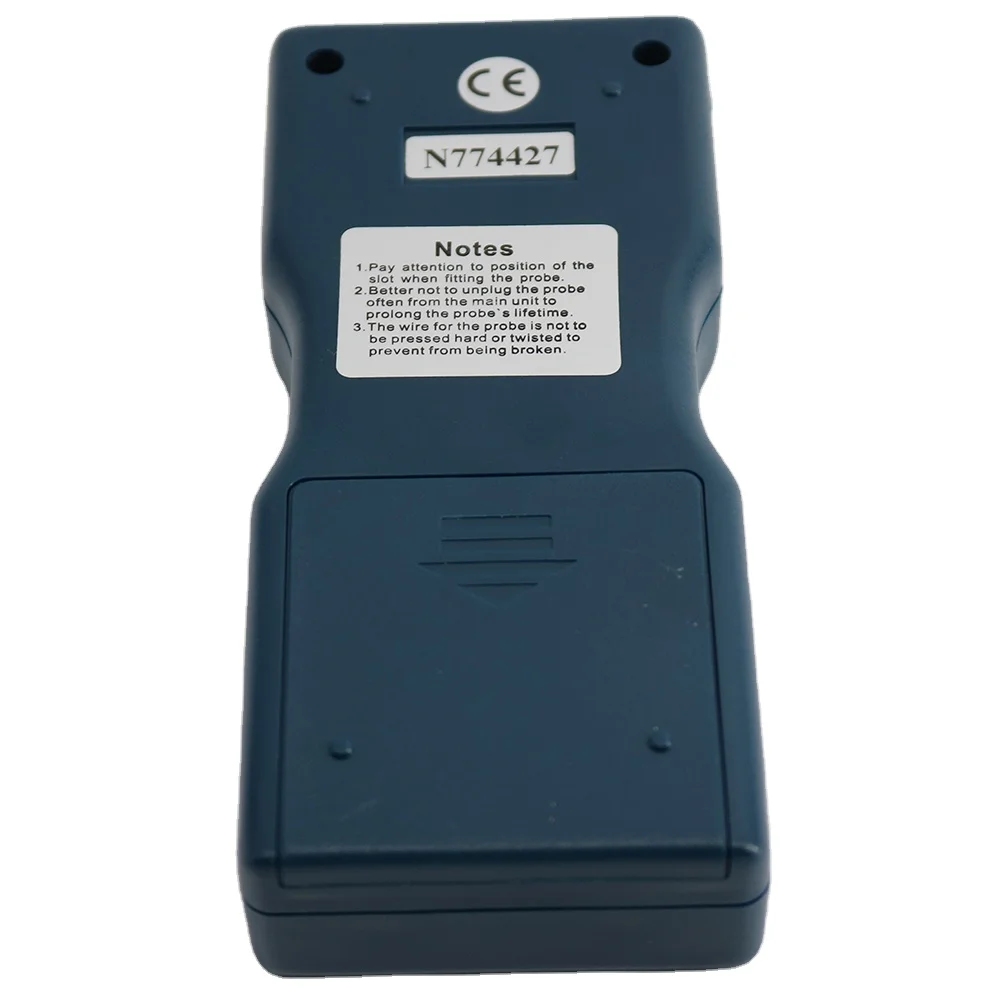

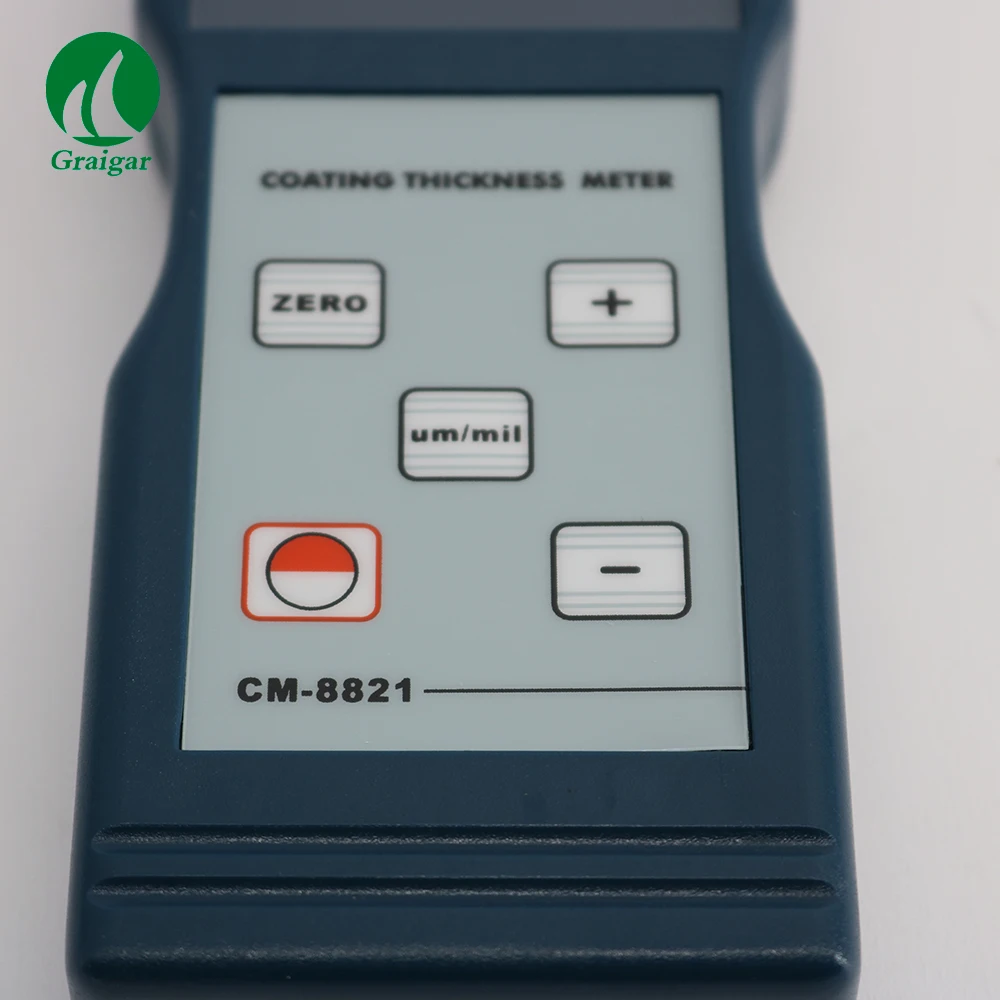

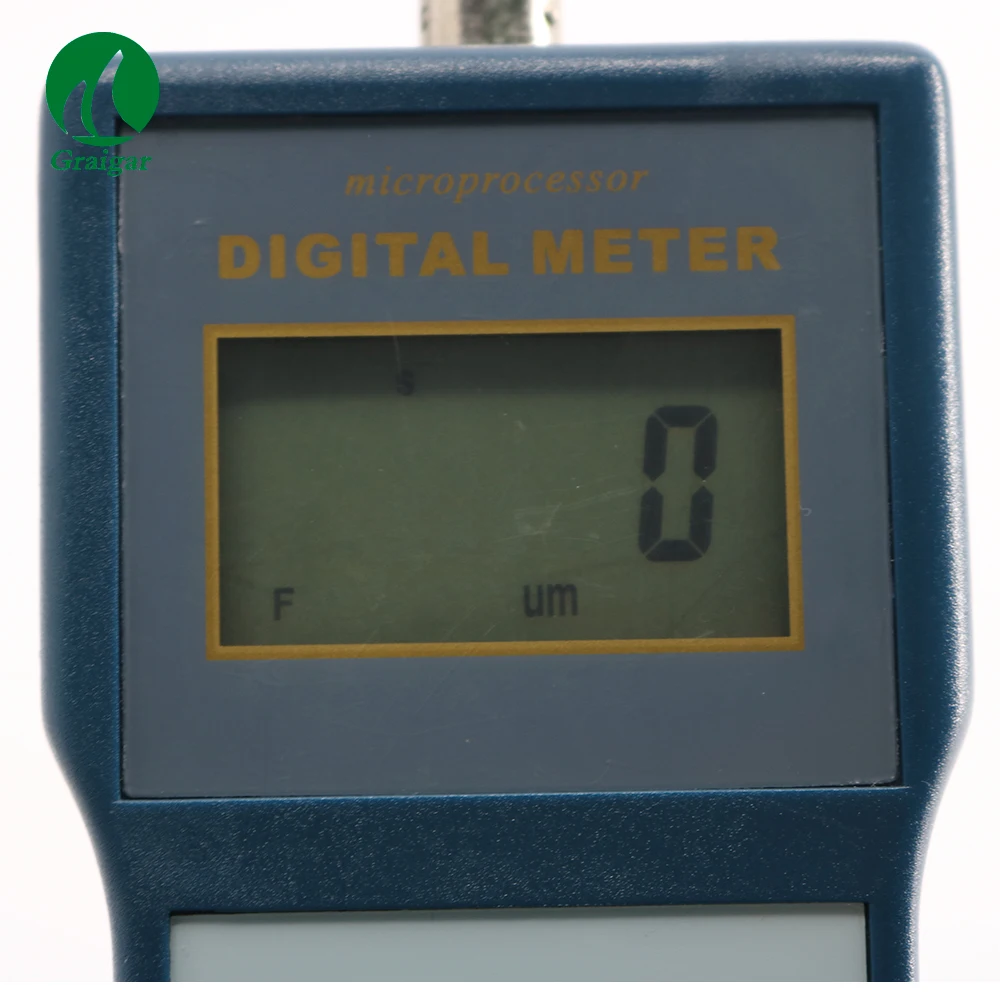

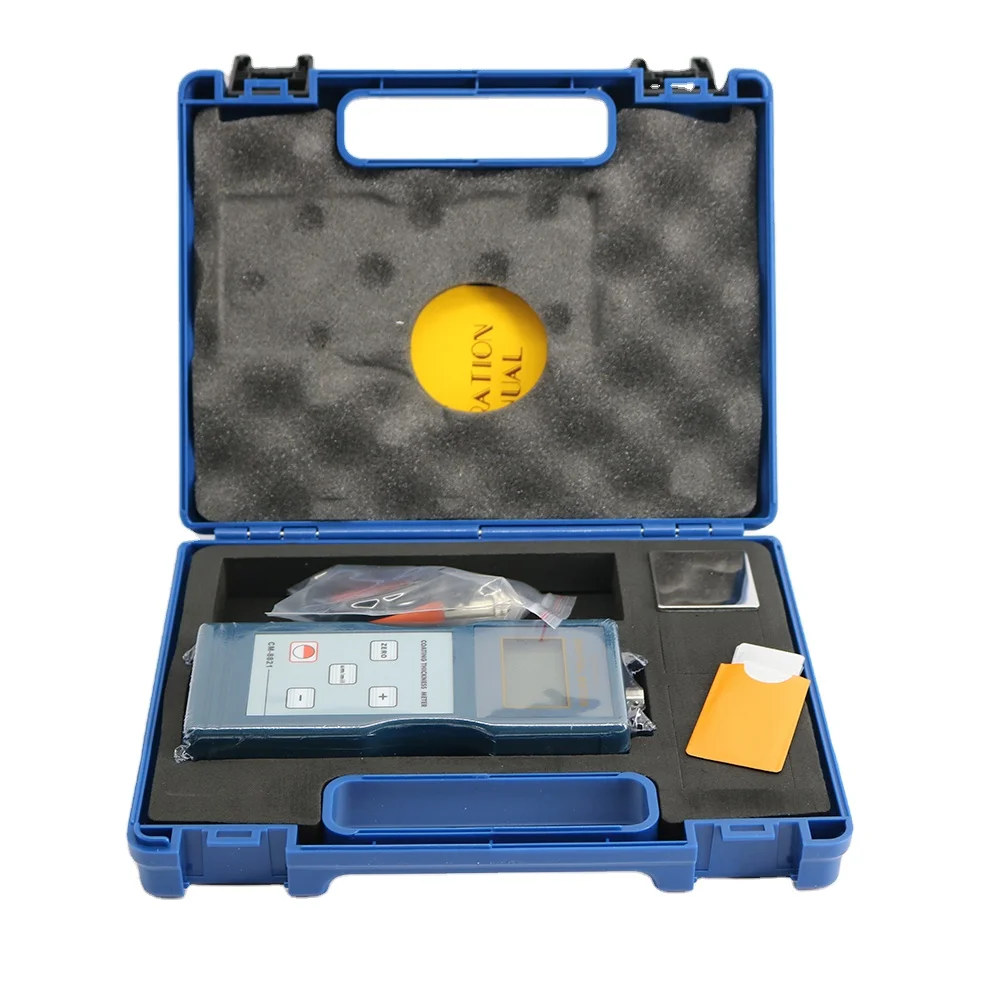

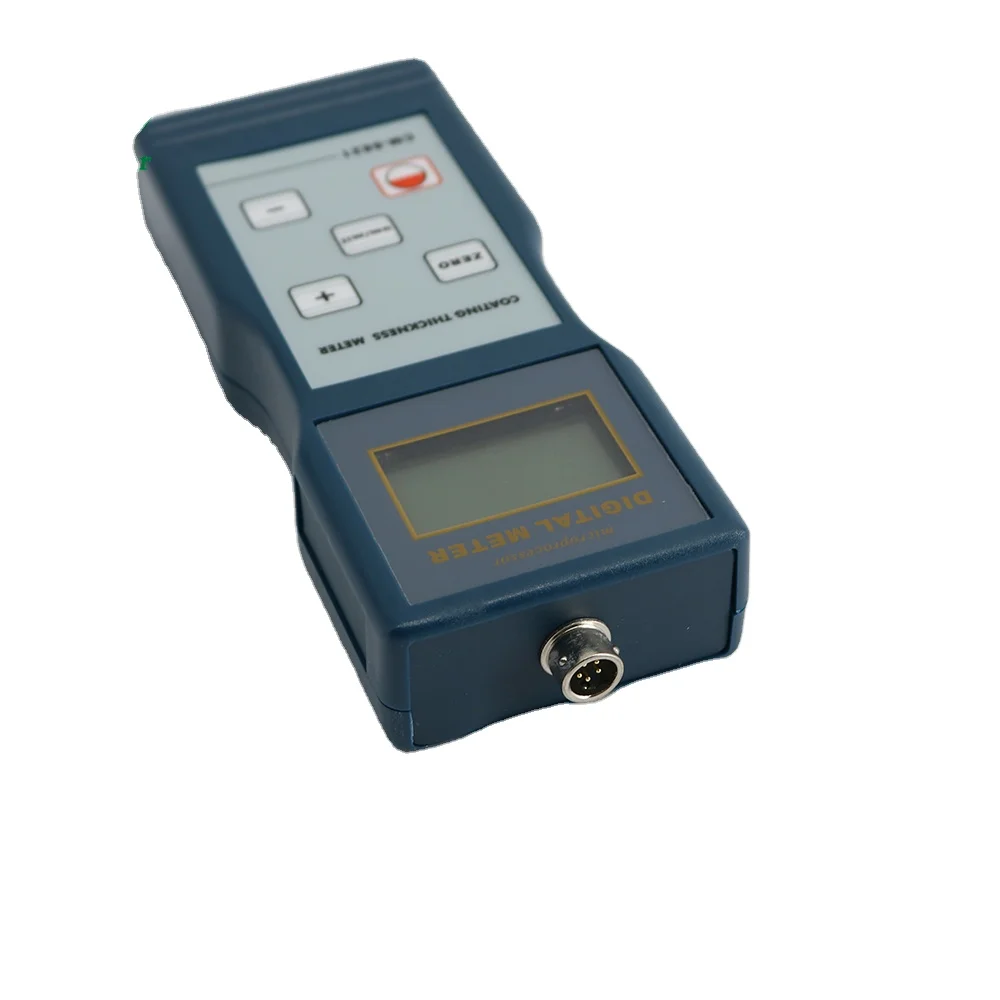

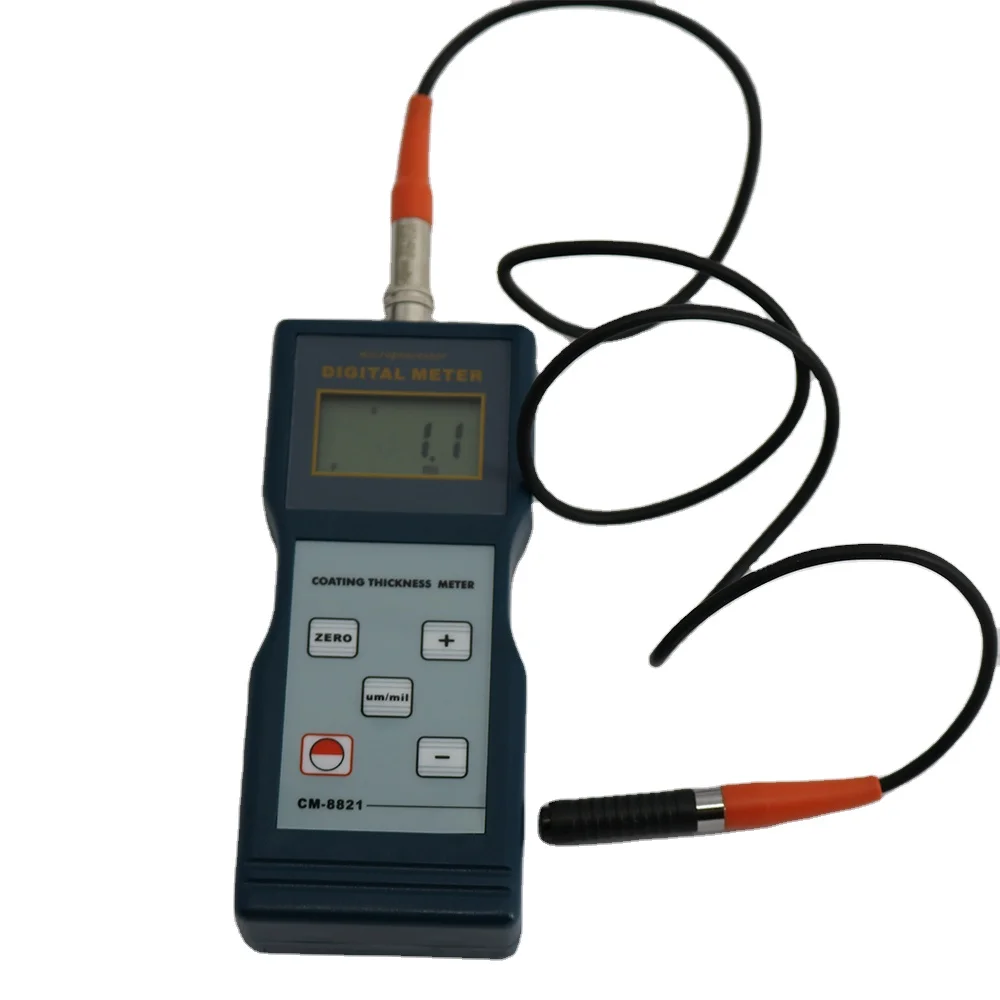

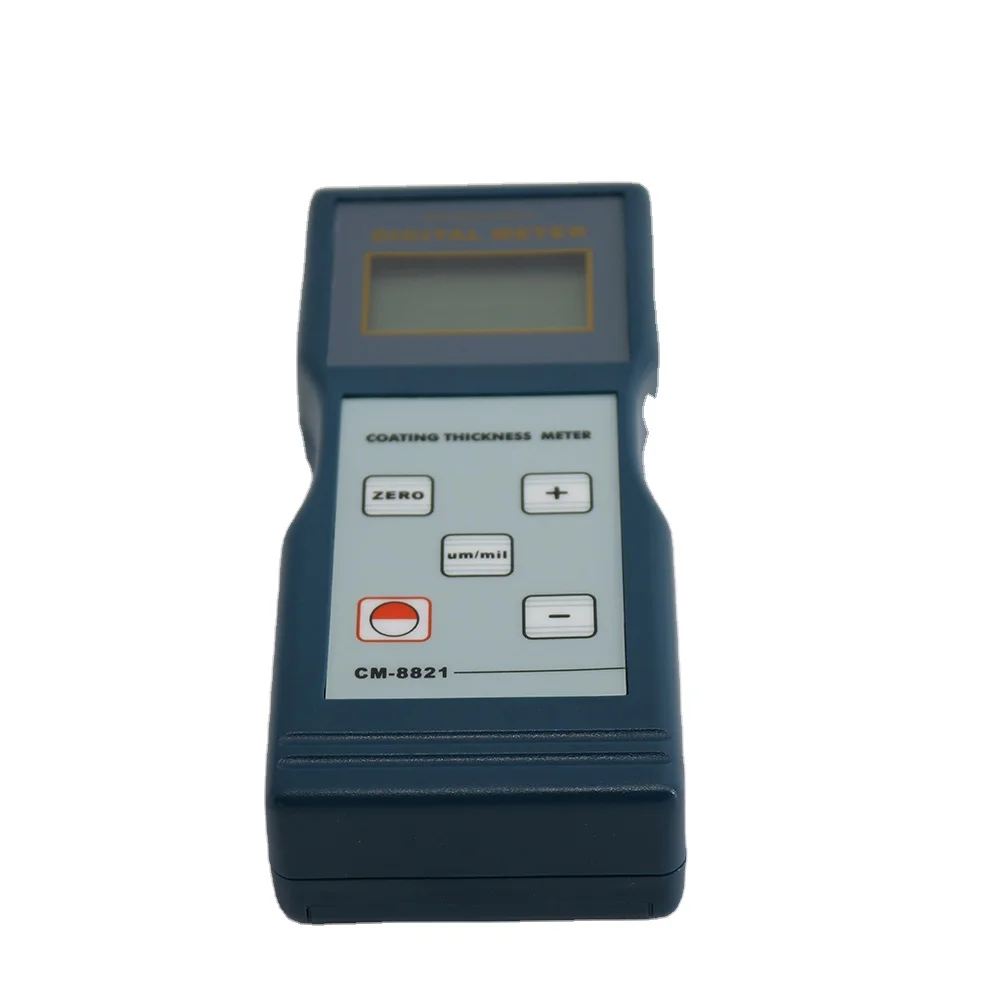

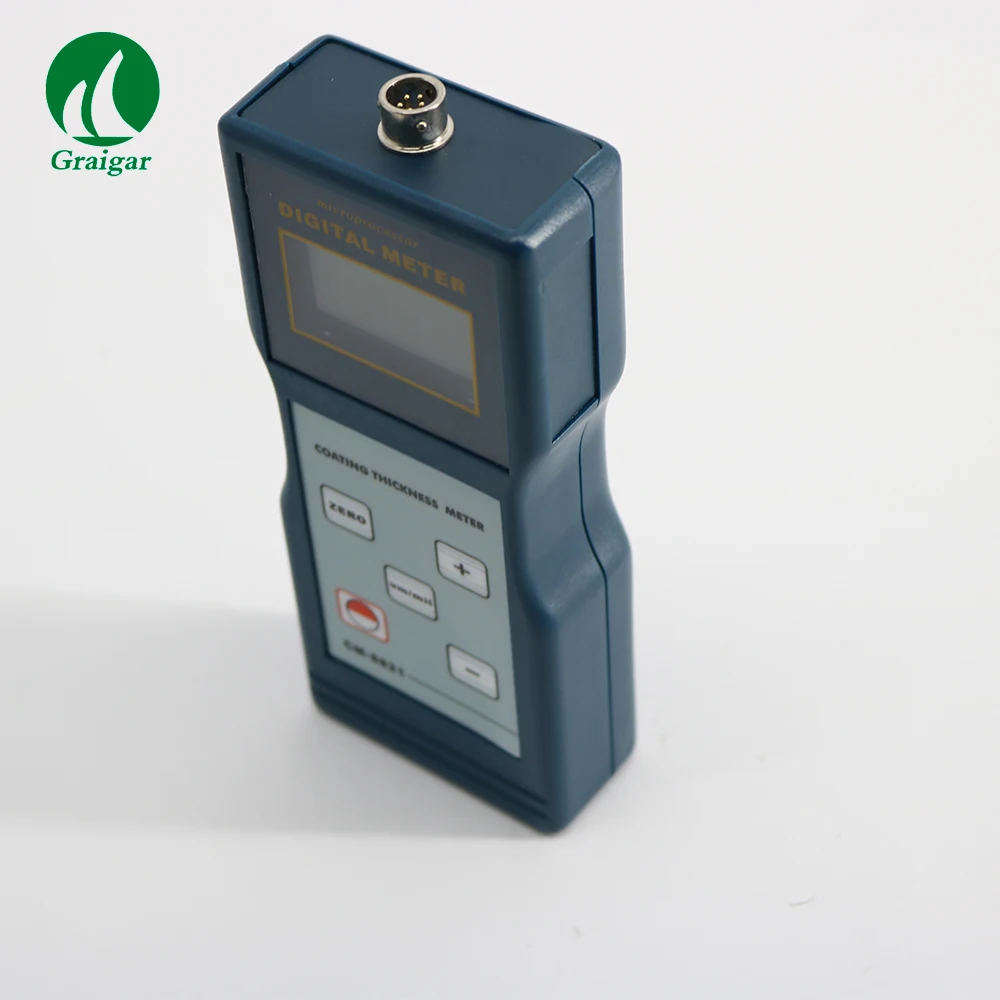

CM-8821 Digital Coating Thickness Gauge Thickness Meter Gauge F Probes CM8821

Features

* Measuring Principle: magnetic induction (F).
* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Automatic memory of calibration value,and automatic recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.

Principle	F Magnetic Induction
Range	0~1000µm/0~40mil
Resolution	0.1µm/1µm
Accuracy	±1~3%n or ±2.5µm
Min.Radius Workpiece	F Type:convex 1.5mm/concave 25mm
Min.Radius Workpiece	NF Type:convex 3mm/concave 50mm
Min.Measuring Area	6mm
Min.Sample Thickness	0.3mm
Metric/Imperial	Convertible
Battery Indicator	Low Battery Indicator
Automatic Power Off	√
Operating Conditions	Temperature:0~50ºC
Operating Conditions	Humidity:<80%RH

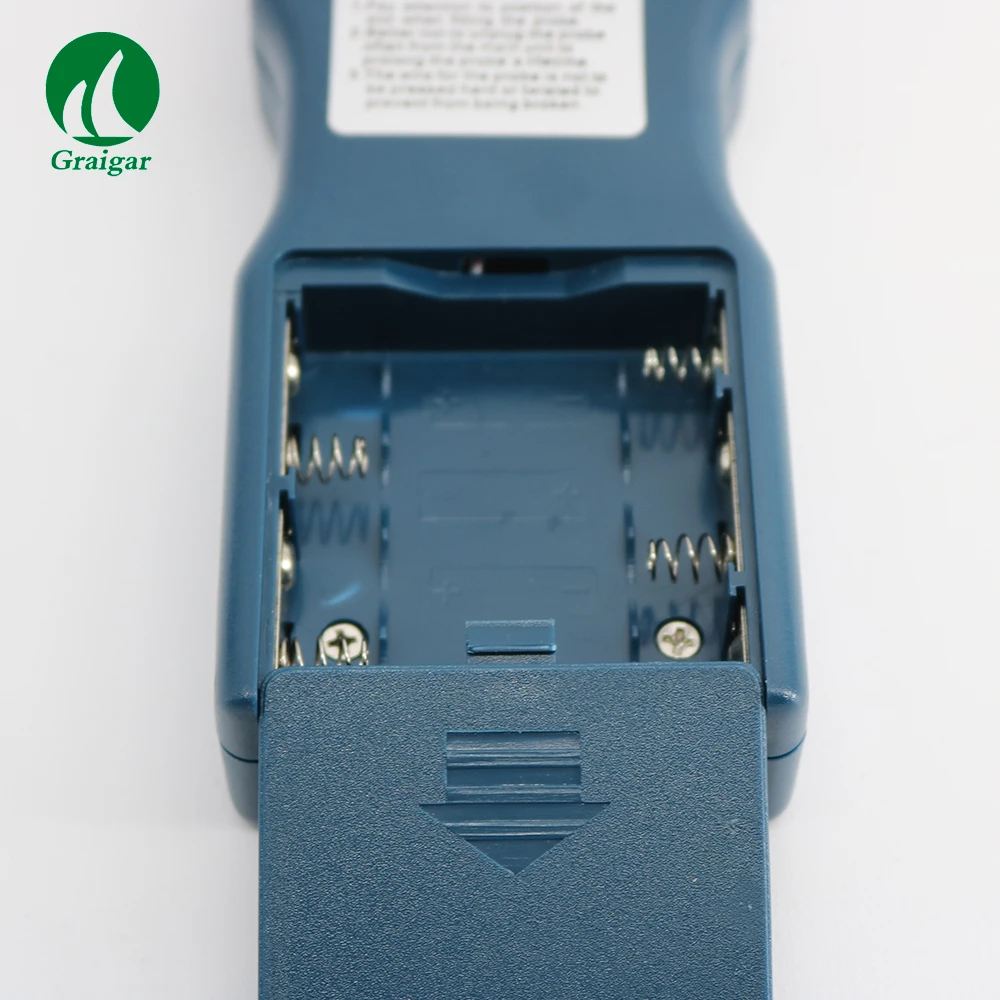

Power Supply	4x1.5V AA (UM-3)Battery
Dimensions	161x69x32mm
Weight	210g(Not Including Batteries)
