YOWEXA EC-900 Paint Thickness Meter Car Coating Gauge with Separated Probes

Measurement

Methods

Applications

Occasion

Such as

 F-type

Magnetic induction

Measure the thickness of

Non-magnetic coating

layers on magnetic

substrate.

Such as: (enamel,rubber,paints,plastics,copper,aluminum,zinc,tin,power,synthetic

materials,Phosphide layer,Lead,tin,cadmium

,ceramic oxide, Covering layer) on steel,

iron,alloy and hard-magnetic steel.

Conductive or non-conductive coating layer

is unimportant, as along as it is non-magnetic

 NF-type

Eddy current

Measure the thickness of

non-conductive coating

layers on non-magnetic

substrate.

Such as: enamel,rubber, paint, plastic

powder,synthetic materials,anodic-oxide

layer on copper,aluminum,zinc,tin,

non-magnetic stainless steel,gold and

silver. Cover layer only can be insulation

 not conduct electricity.

(1)It meets the standards of both ISO2178 and ISO 2361 as well

 as DIN ASTM and BS. It can be used both in the laboratory and

in harsh field conditions.

(2)Have RS232C can communicate with PC computer for

statistics and printing by the optional cable.

(3)Digital back lit display gives exact reading with no guessing

or errors.

(4)Two measurement mode: single and continuous

(5)Have Bluetooth features to choose from

(6)Wide measuring range and high resolution.

(7)Automatic substrate recognition.

(8)Manual or automatic shut down.

Display: 4 digits LCD

Range :0~1250 um/0~50mil (other range may be specified)

Metric/ Imperial conversion

Resolution: 0.1 um (0~99.9um)/1 um (over 100um)

Accuracy:±1~3%n or 2.5 um or 0.1mil

                 (Whichever is the greater)

Operating condition:Temp. 0~50 C/Humidity <95%

Power:2x1.5v   7battery

Size:126x63x25mm

Weight: 170g (Not including batteries)

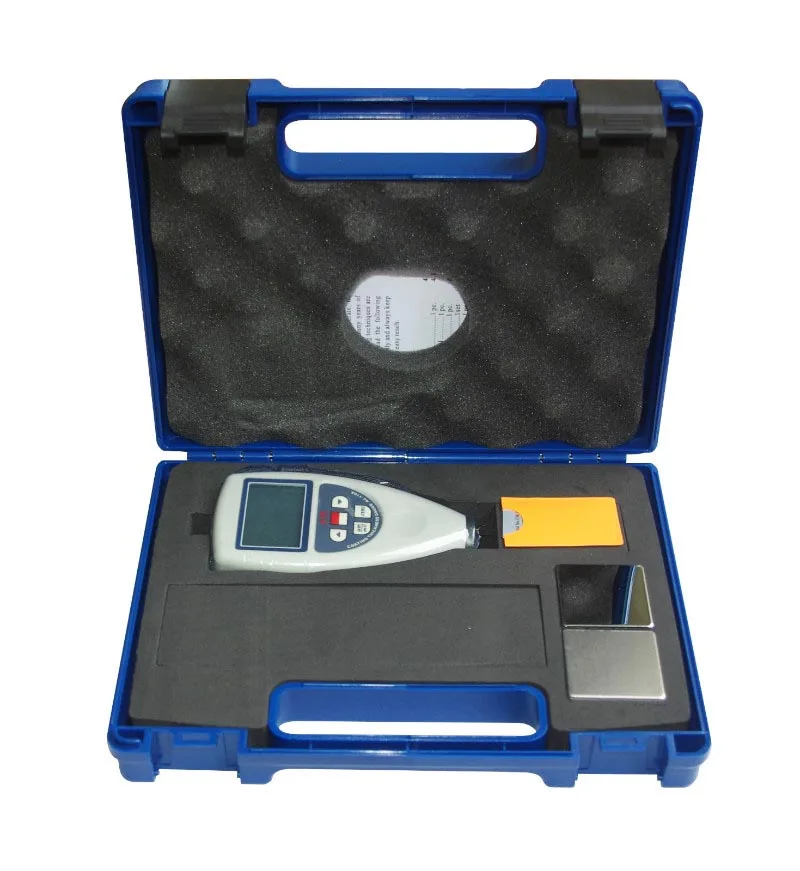

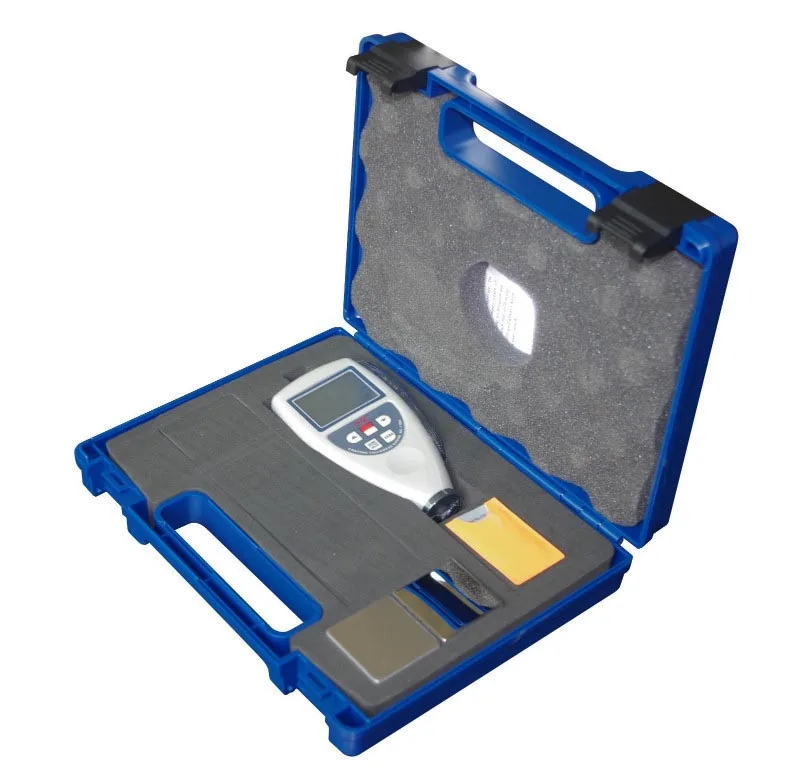

Standard configuration: 1. Host

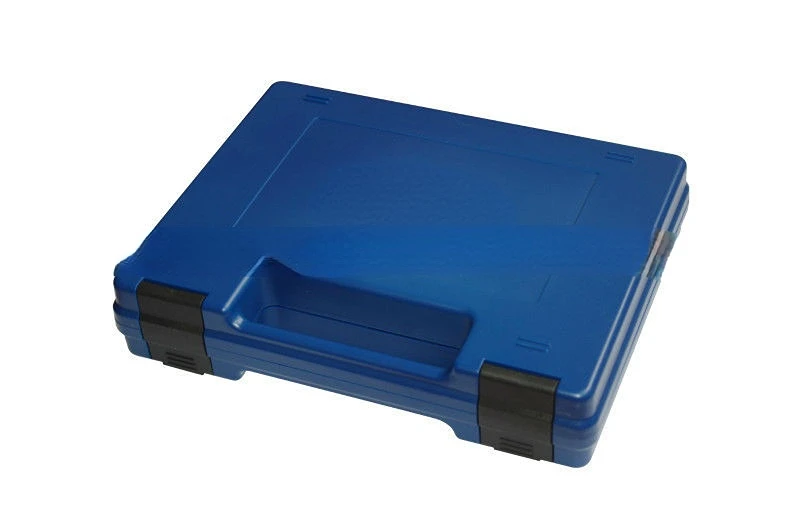

                     2.Carrying case

                     3.Operation manual

                     4.F probe in built

                       NF probe in built

                     5.Calibration foils

                     6.Substrate (Iron)

                     7.Substrate (Aluminum)

Optional accessories:  1.Bluetooth

                   2.USB adaptor for RS-232C

                   3.RS-232C cable & software

Model

Standard configuration  ( Note: may need to buy RS-232C

                                        data cable purchase )

Model+USB

Standard configuration+Data communication via USB

                                             data lines and computer

Model+RS-232C

Standard configuration+Data communication via RS-232C

                                             data lines and computer

Model+ Bluetooth

Standard configuration+Wireless data communication and

                                             computer via Bluetooth

Bluetooth

Remarks:All our products can be supplied with bluetooth

function ,but bluetooth is included in optional accessories

, not  standard delivery.If need it in addition,10 meters

and100 meters distance can  both be  chosen.Please kindly

indicate if you need.Your kindly cooperation will be highly

appreciated.
