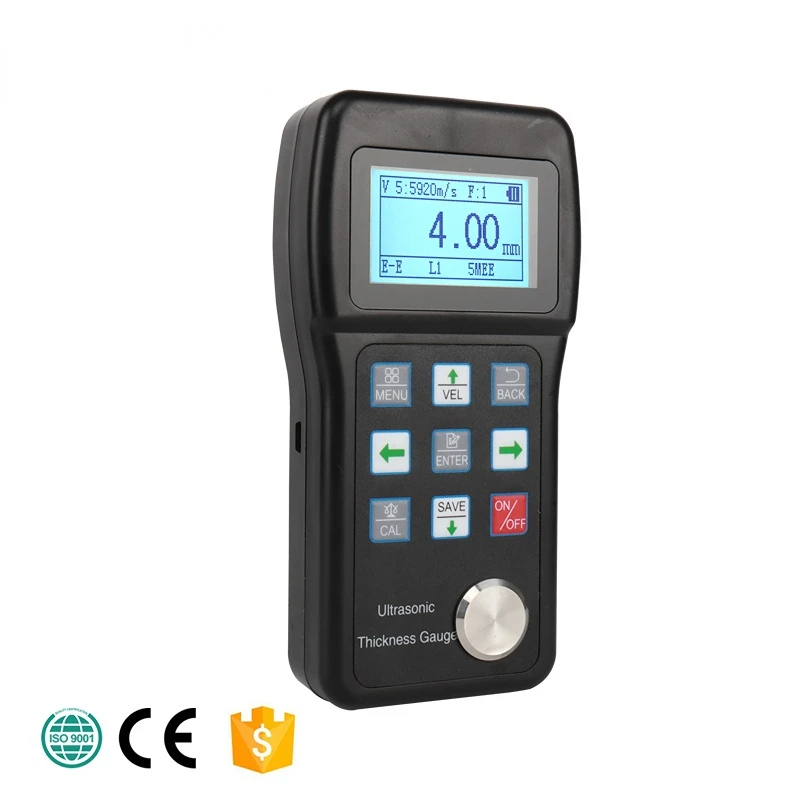

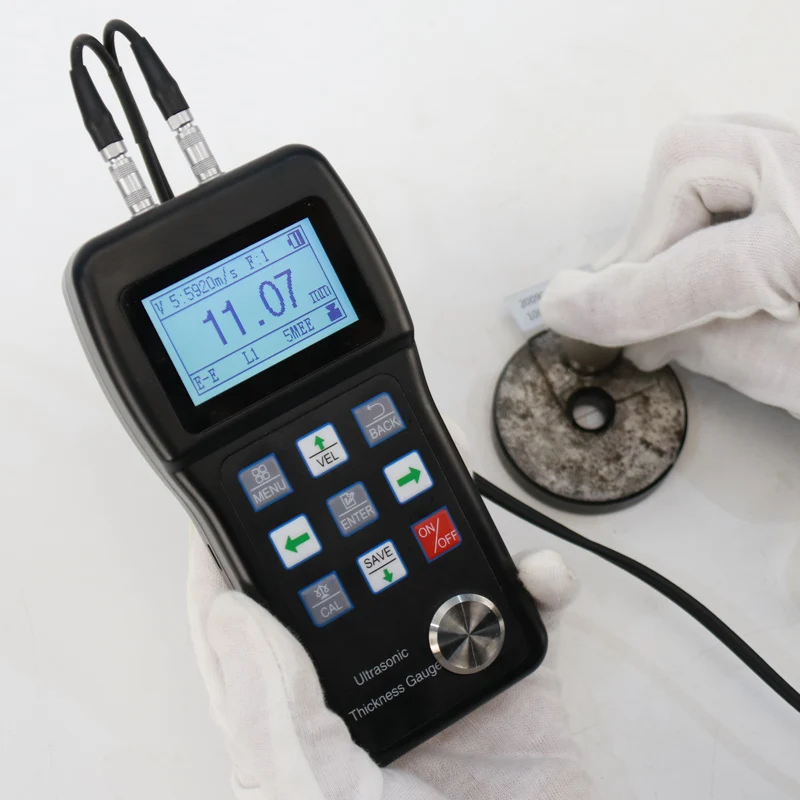

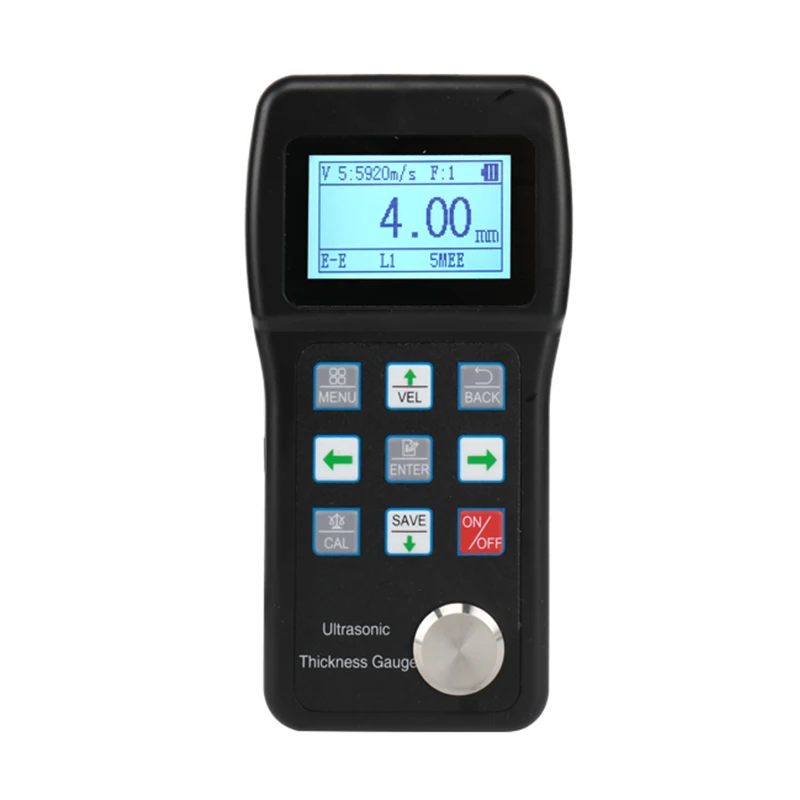

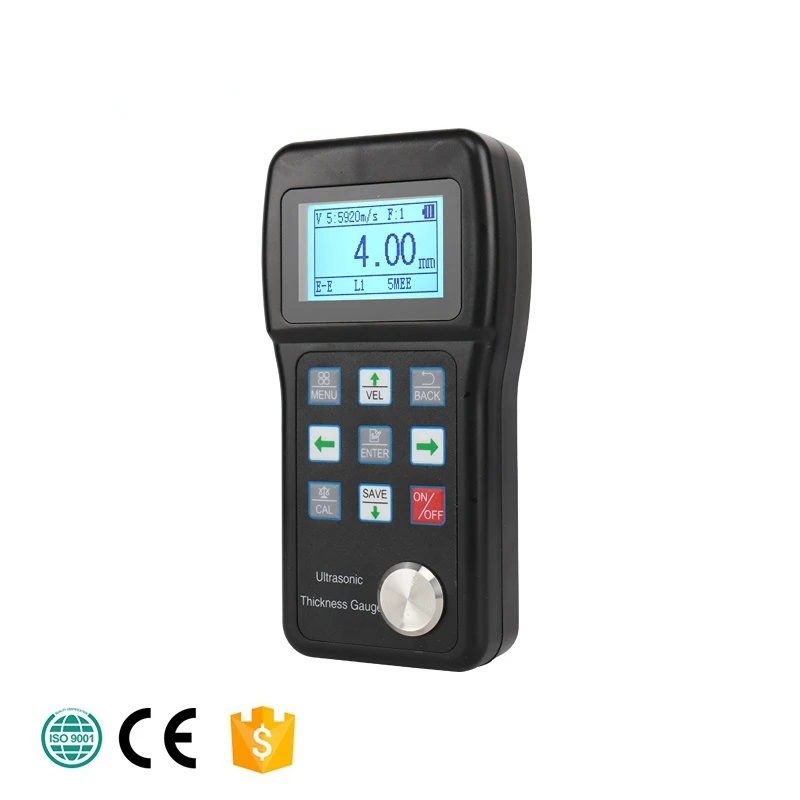

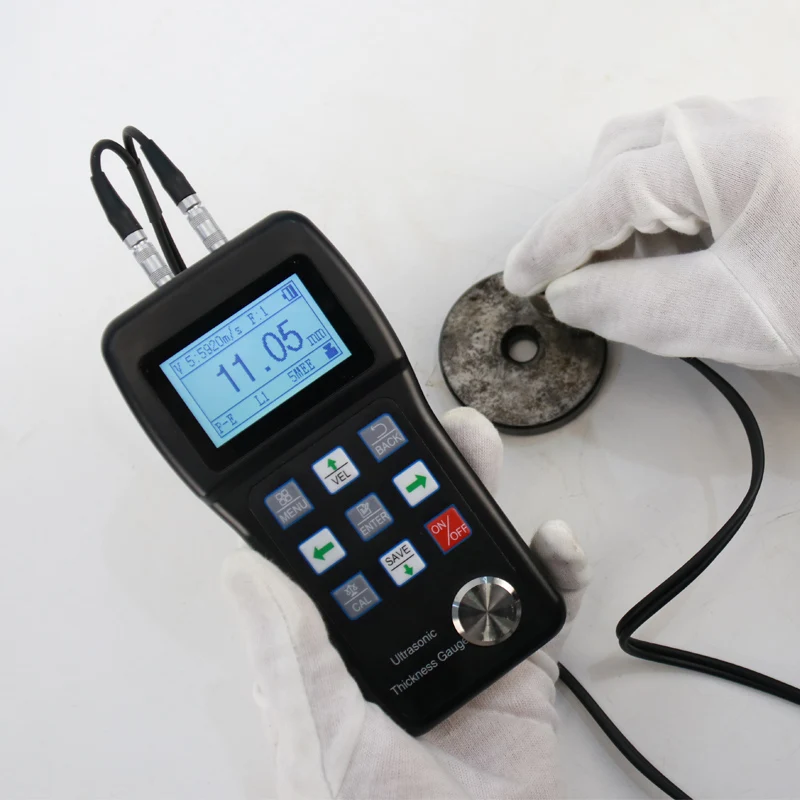

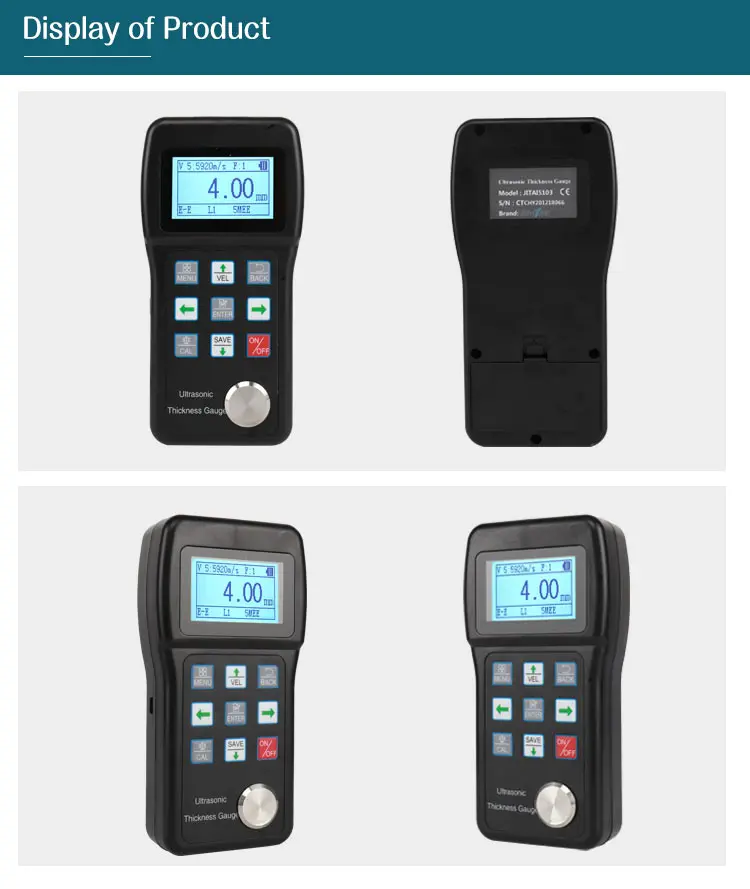

DECCA DC-5103 Digital Metal Thickness Gauge Through Coating Ultrasonic Thickness Gauge
Ultrasonic Thickness Gauge measuring with ultrasonic wave, is applicable for measuring the thickness
of any material in which ultrasonic wave can be transmitted and reflected back from the other face.

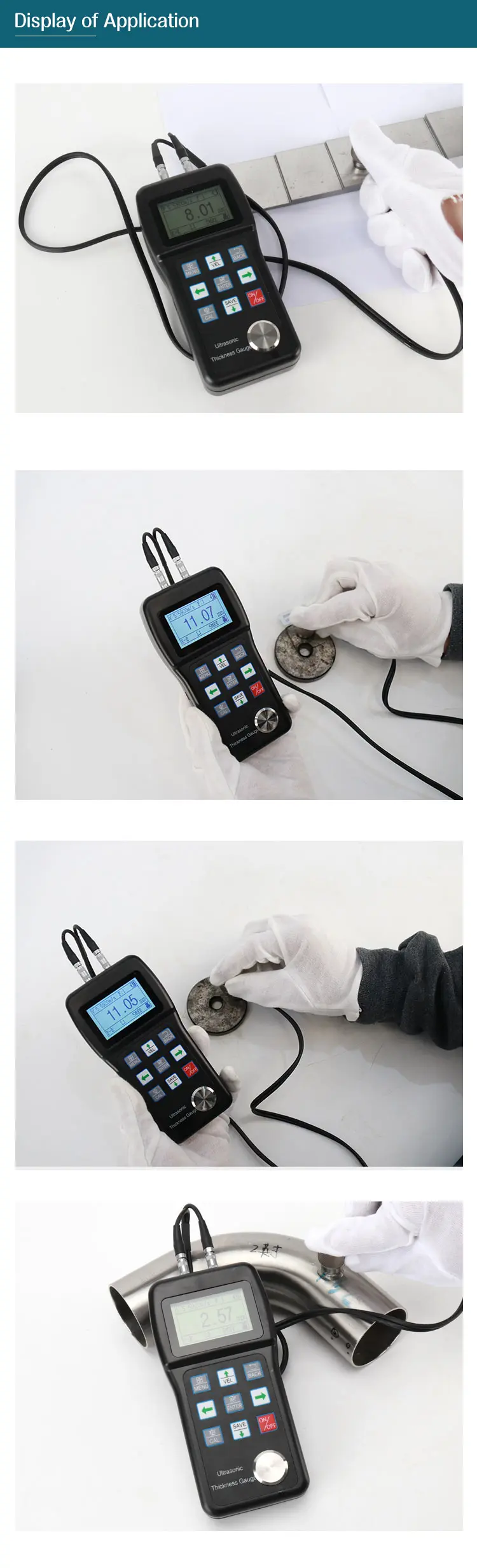

The gauge can provide quick and accurate measurement to various work pieces such as sheets of board and processing parts. Another important application of the gauge is to monitor various pipes and pressure vessels in production equipment, and monitor the thinning degree during using. It can be widely used in petroleum, chemical, metallurgy, shipping, aerospace, aviation and other fields.
of any material in which ultrasonic wave can be transmitted and reflected back from the other face.
The gauge can provide quick and accurate measurement to various work pieces such as sheets of board and processing parts. Another important application of the gauge is to monitor various pipes and pressure vessels in production equipment, and monitor the thinning degree during using. It can be widely used in petroleum, chemical, metallurgy, shipping, aerospace, aviation and other fields.
PRODUCT SPECIFICATIONS

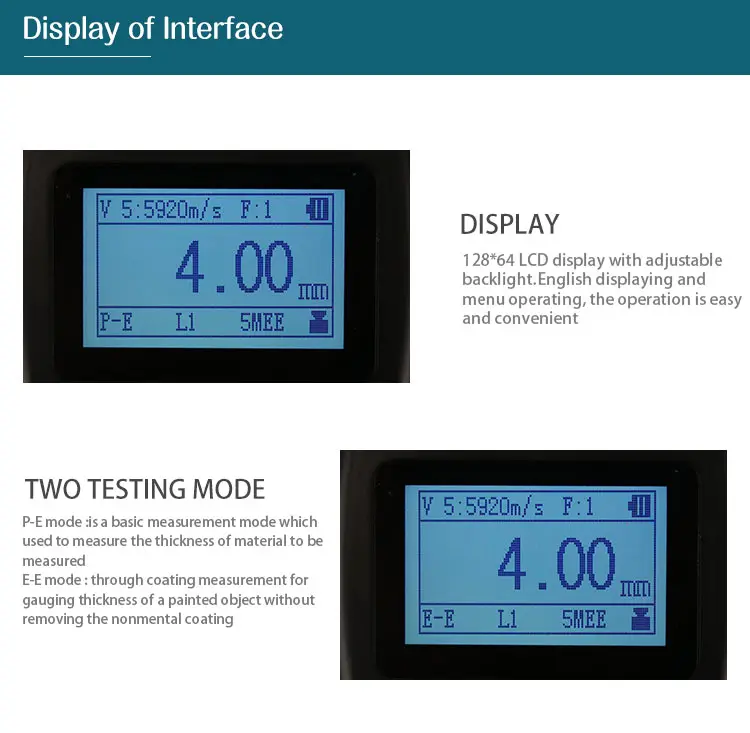

\t\t\t Display \t\t\t | \t\t\t 128*64 LCD with LED backlight \t\t\t |
\t\t\t Measuring Range \t\t\t | \t\t\t (0.75~600)mm（Steel）,(Through Coating):3-25mm \t\t\t |
\t\t\t Velocity Range \t\t\t | \t\t\t (1000~9999) m/s \t\t\t |
\t\t\t Resolution \t\t\t | \t\t\t 0.01mm \t\t\t |
\t\t\t Measuring accuracy \t\t\t | \t\t\t ±（0.5%H+0.04mm) \t\t\t |
\t\t\t Measurement cycle \t\t\t | \t\t\t Single point measurement 6 times/per \t\t\t |
\t\t\t Storage \t\t\t | \t\t\t 40 values of saved data \t\t\t |
\t\t\t Power Source \t\t\t | \t\t\t 2pcs 1.5V AA size \t\t\t |

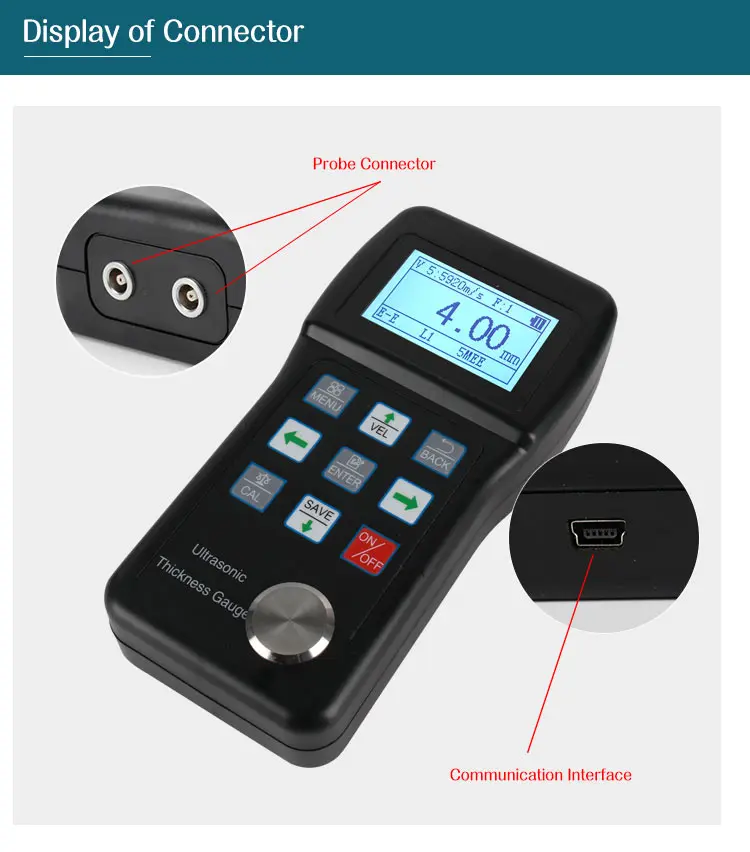

\t\t\t USB Port \t\t\t | \t\t\t YES \t\t\t |

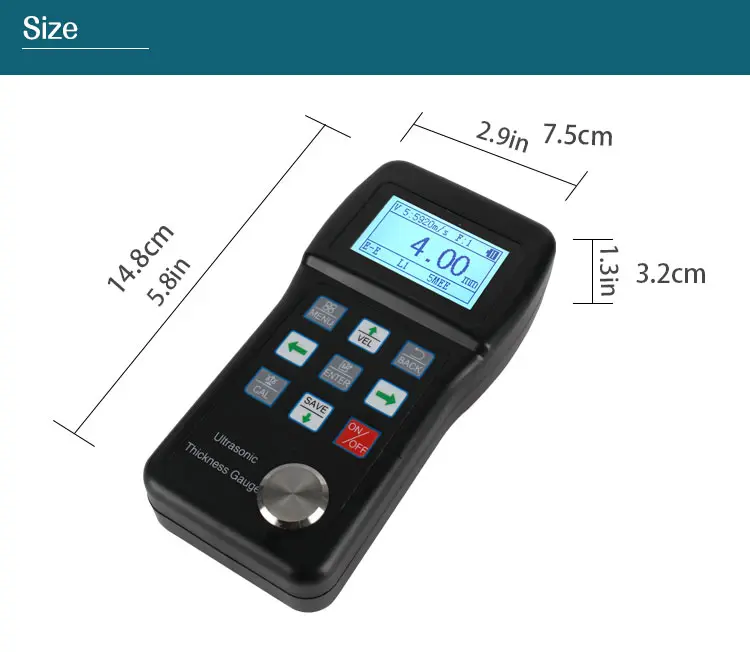

\t\t\t Dimensions \t\t\t | \t\t\t 145mm*74mm*32 mm \t\t\t |
\t\t\t Weight \t\t\t | \t\t\t 245g \t\t\t |

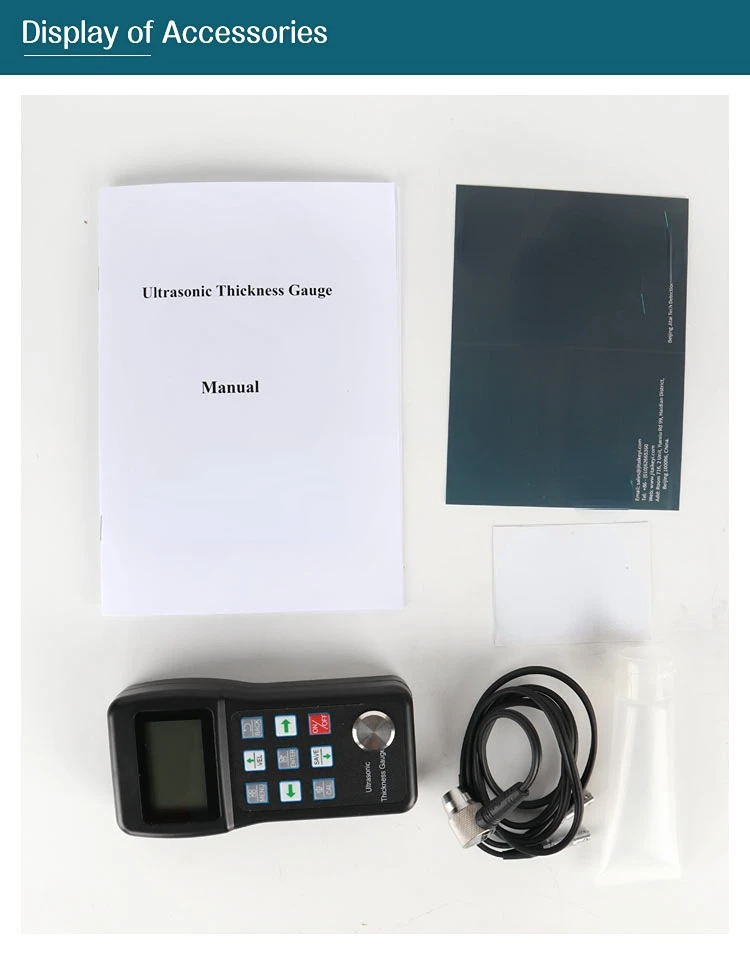

PRODUCT CONFIGURATION
\t\t\t \t\t\t \t\t\t \t\t\t | \t\t\t \t\t\t Name \t\t\t \t\t\t | \t\t\t \t\t\t QTY \t\t\t \t\t\t |
\t\t\t \t\t\t 1 \t\t\t \t\t\t | \t\t\t \t\t\t Main Body \t\t\t \t\t\t | \t\t\t \t\t\t 1 \t\t\t \t\t\t |
\t\t\t \t\t\t 2 \t\t\t \t\t\t | \t\t\t \t\t\t Standard Probe（5MHz,D10mm） \t\t\t \t\t\t | \t\t\t \t\t\t 1 \t\t\t \t\t\t |
\t\t\t \t\t\t 3 \t\t\t \t\t\t | \t\t\t \t\t\t Couplant bottle(empty) \t\t\t \t\t\t | \t\t\t \t\t\t 1 \t\t\t \t\t\t |
\t\t\t \t\t\t 4 \t\t\t \t\t\t | \t\t\t \t\t\t Manual \t\t\t \t\t\t | \t\t\t \t\t\t 1 \t\t\t \t\t\t |
\t\t\t \t\t\t 5 \t\t\t \t\t\t | \t\t\t \t\t\t Product Certificate \t\t\t \t\t\t | \t\t\t \t\t\t 1 \t\t\t \t\t\t |
\t\t\t \t\t\t 6 \t\t\t \t\t\t | \t\t\t \t\t\t Warranty Card \t\t\t \t\t\t | \t\t\t \t\t\t 1 \t\t\t \t\t\t |

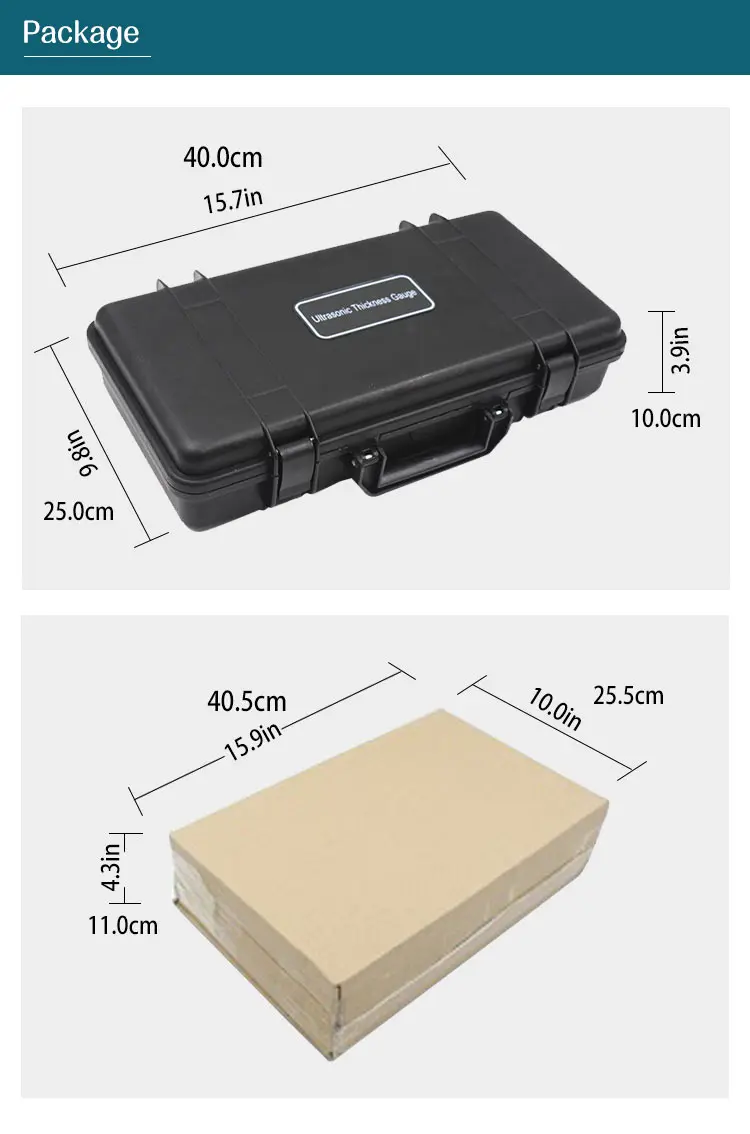

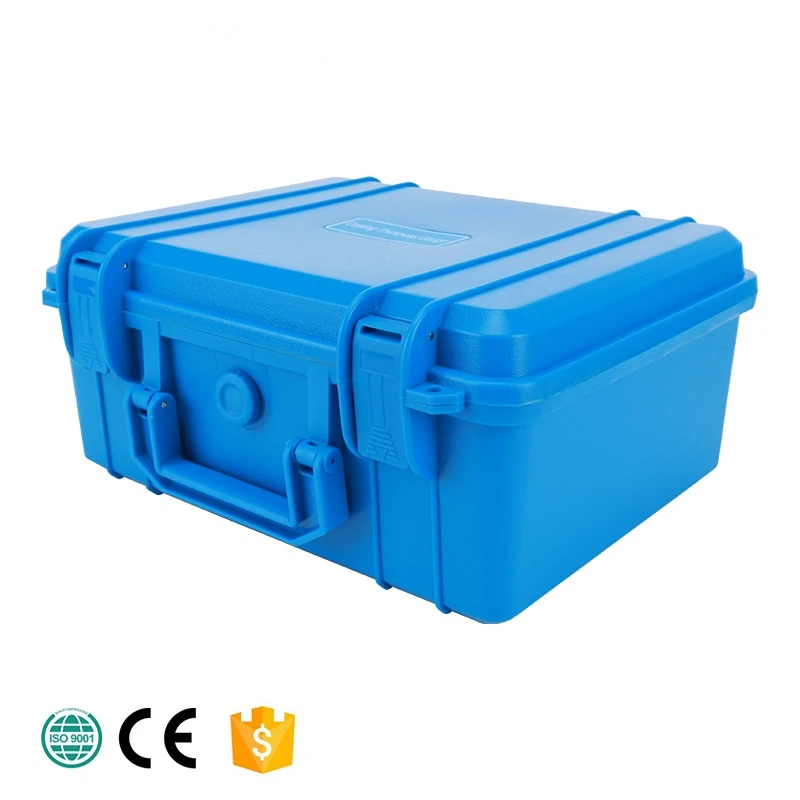

\t\t\t \t\t\t 7 \t\t\t \t\t\t | \t\t\t \t\t\t ABS Case \t\t\t \t\t\t | \t\t\t \t\t\t 1 \t\t\t \t\t\t |
