Portable ultrasonic thickness gauge for metal itself thickness measuring

Product Overview

Description

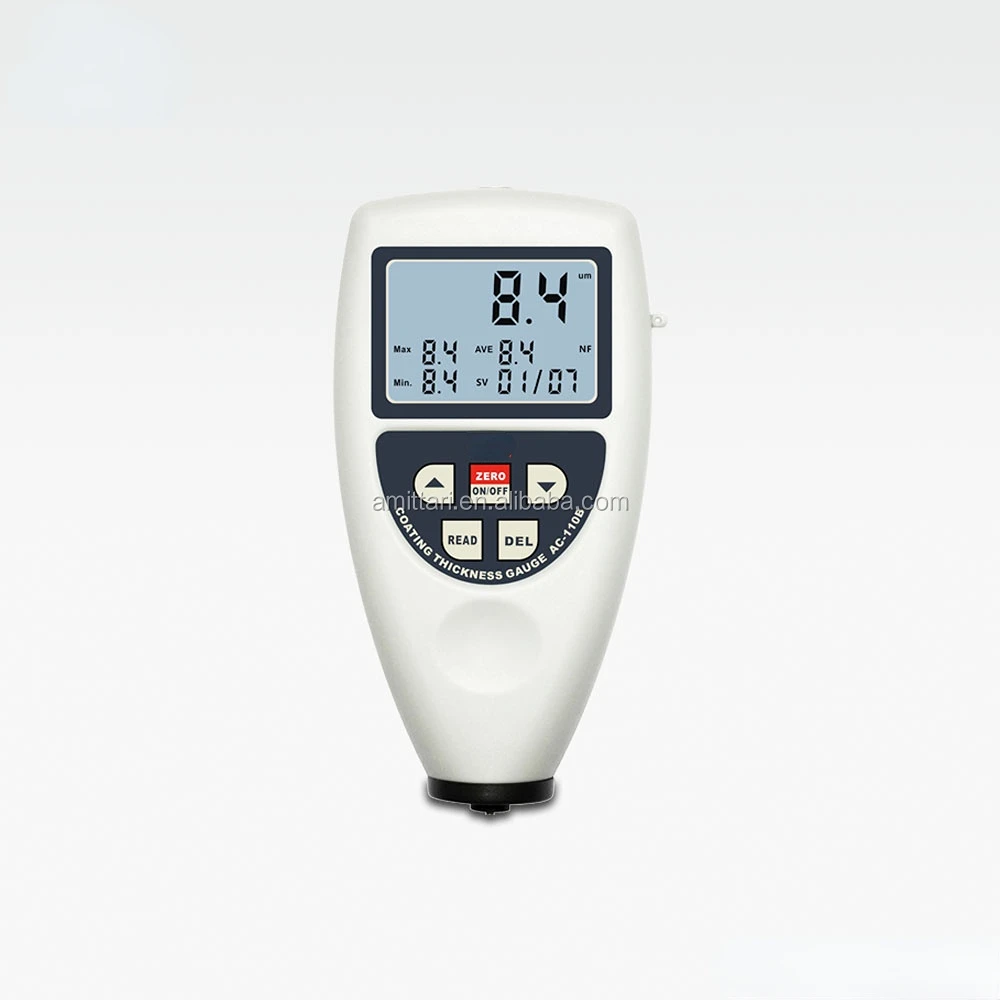

Memory galvanized coating thickness gauge 0~1250um AC-110B





Product Description

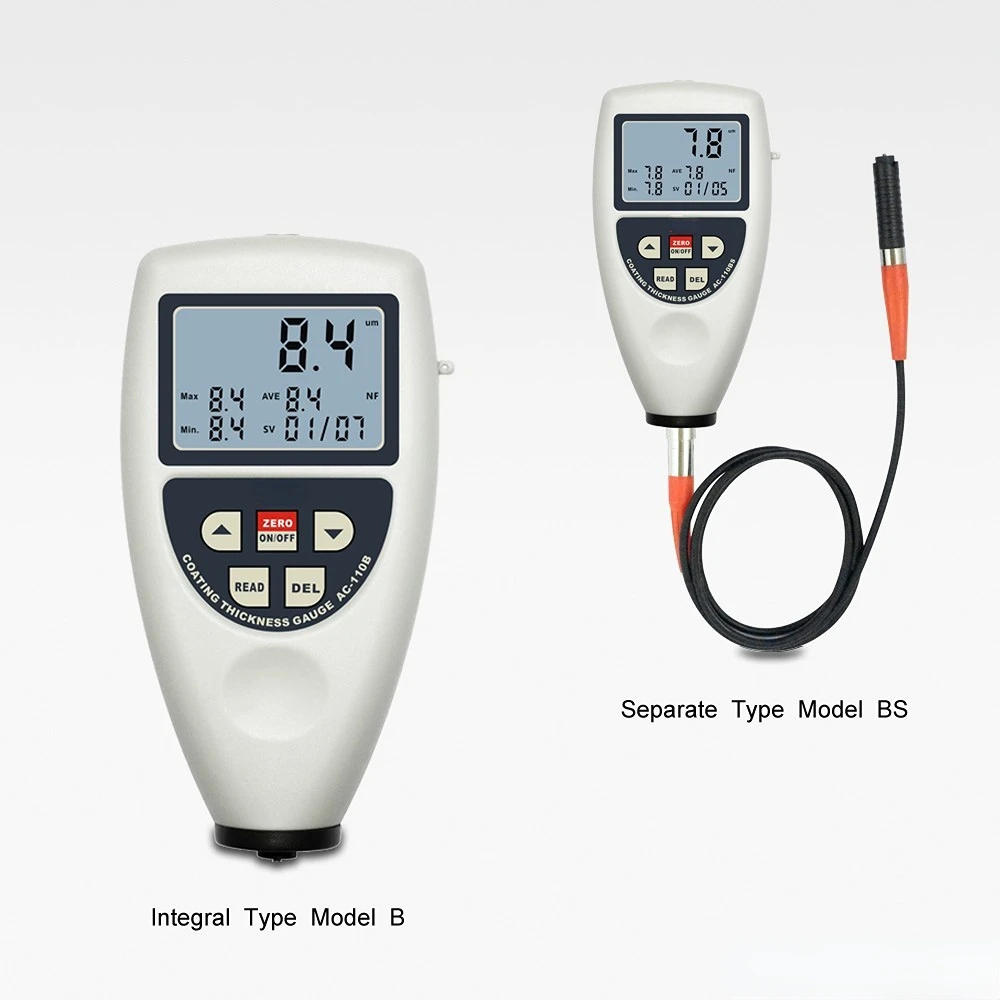

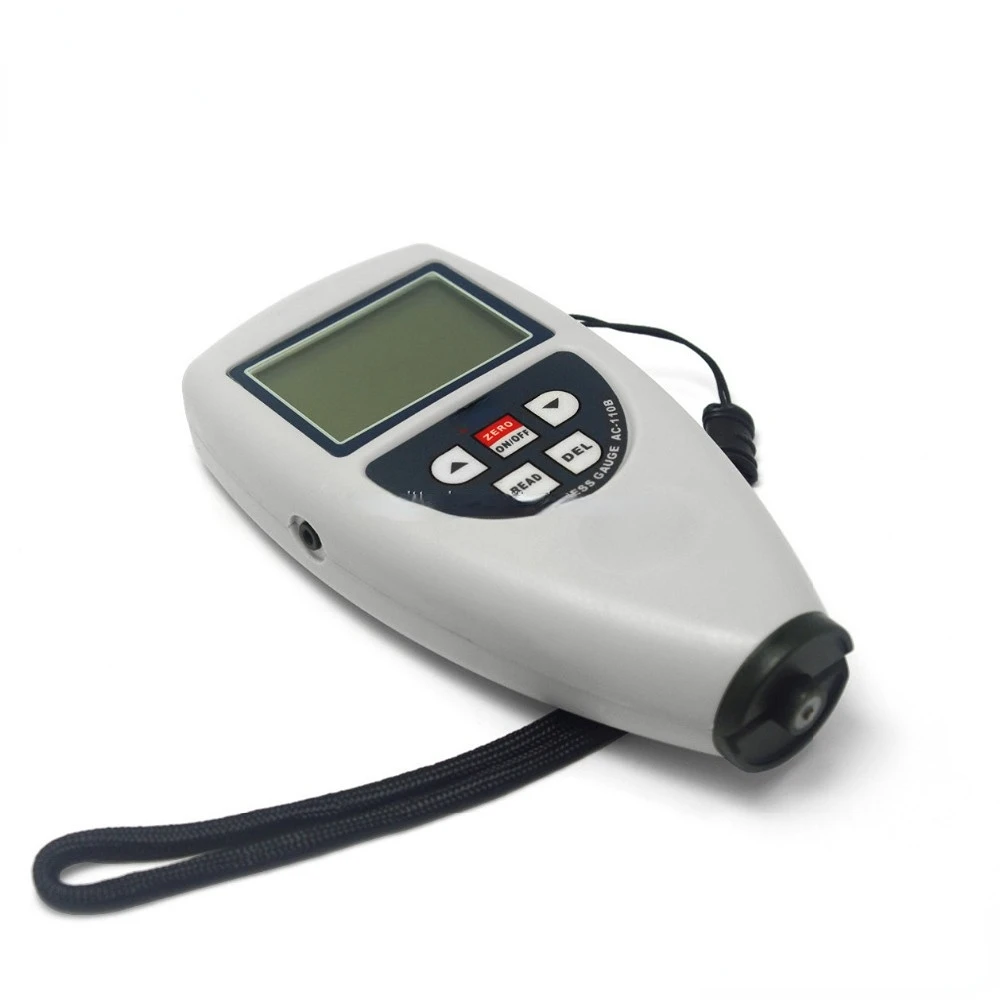

The Statistical Type Coating Thickness Gauge AC-110 Series have two types: Type B ( Integral Type ), Type BS ( Separate Type ); can store 99 groups of the latest measurements; Integral Type suitable for single-hand operation, large probe with large contact surface have better stability, users can get continuous, good repetitive and precise measurements. Separate Type can provide several type probe, measure can be more flexibility. It is a kind of portable measuring instrument, it can quickly, no damage and precise coating, coating thickness measurement; Not only can be used in the laboratory, also can be used in the engineering field; Through the use of different measuring head, but  also can meet the needs of a variety  of measurement; Widely used in manufacturing, metal processing industry, chemical industry, commodityinspection and testing field; Is the material protection professional. necessary instruments.











Product Parameters



\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t

Measuring Range	0~1250 um
	0~50mil (other range may be specified)
Resolution	\t\t\t 0.1 um (0~99.9um)/1 um (over 100um) \t\t\t
Accuracy:	1~3%n or 2.5 um or 0.1mil (Whichever is the greater)
Minimum Measurement Area	6 mm
\t\t\t Minimal Surface \t\t\t	F Type convex1.5 mm / concave 25 mm
	NF Type  convex 3 mm / concave 50mm
Operating Condition	Temp: 0~50°C /
	Humidity: <95%
Size	120x63x25 mm
Power Supply	2x1.5vAAA Um-4 Battery
Weight	90 g  (Not including batteries)



Product Accessories



\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t

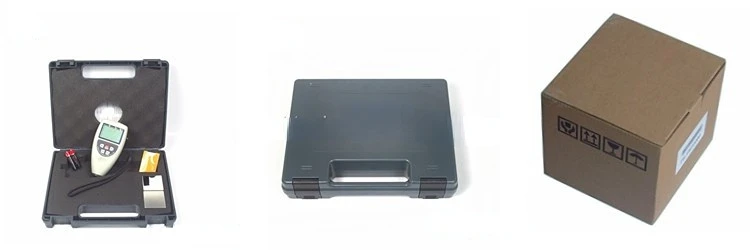

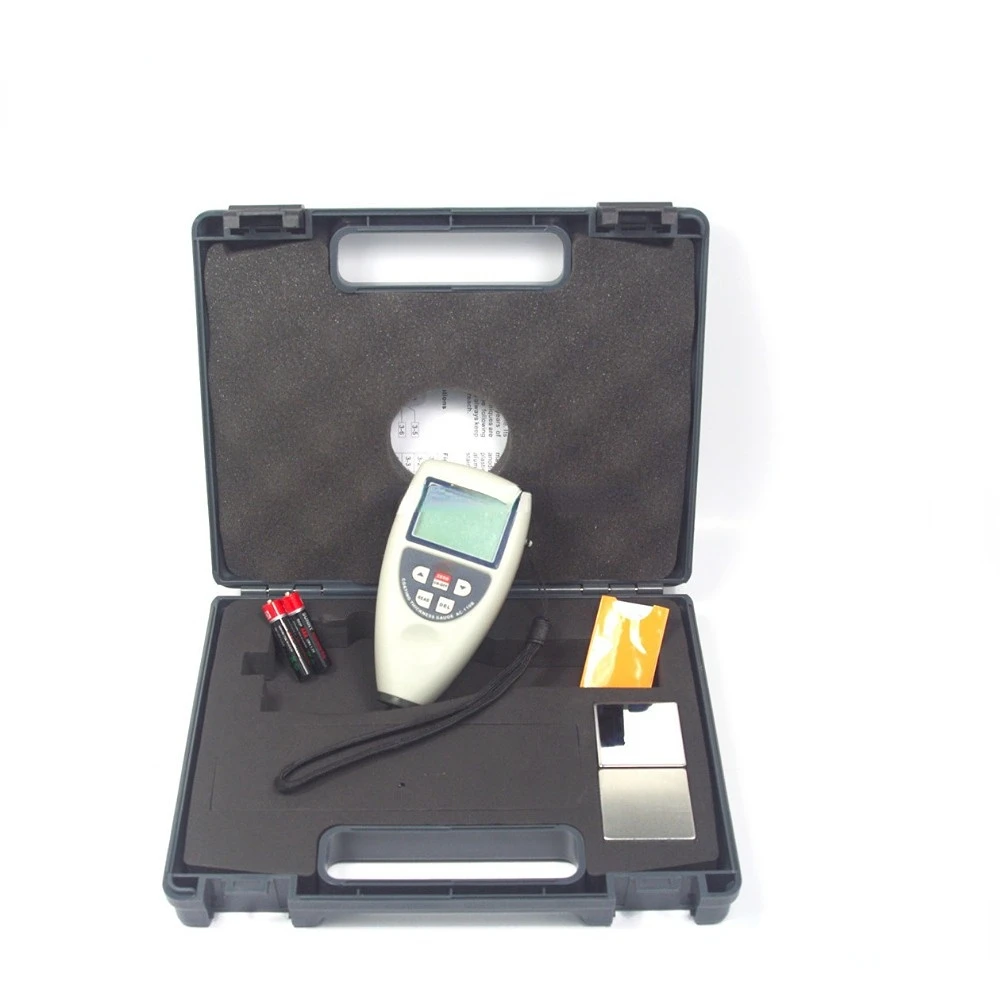

Standard Accessories	Main Unit
	Calibration Foils
	Substrate  ( Iron )
	Substrate  ( Aluminium )

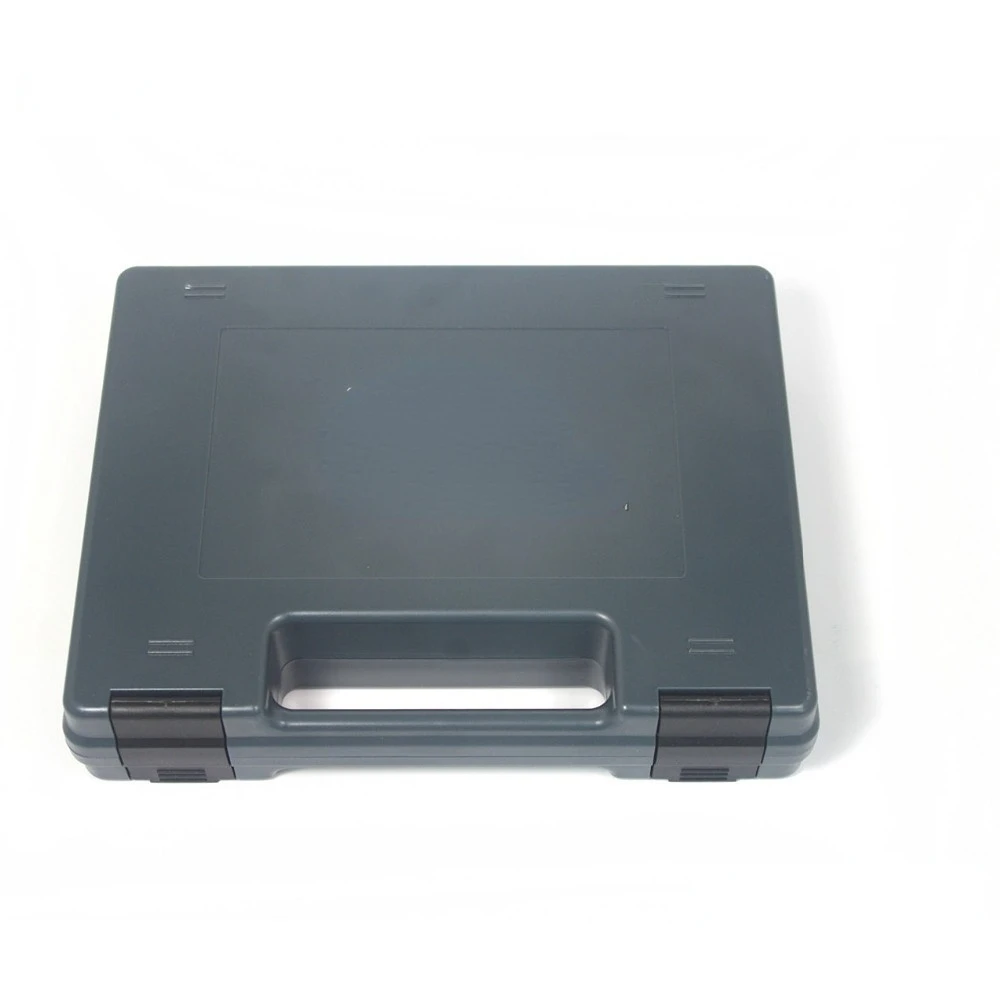

	Carrying Case
	Operation Manual
Optional Accessories	USB data output
	Bluetooth data output



Buying Guide

When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.

The following three items are basic optional accessories choices

Standard Accessories+USB data output

Standard Accessories+Bluetooth data output



Bluetooth Accessories



Amittari  instruments  generally  can  be  supplied  with   Bluetooth™  data  output function ( except  few  instruments ) . As  Bluetooth™  data  output  is  included  in optional accessories, not  standard delivery,it needs to be indicated when choose.10 meters to 100 meters distance can be chosen.Please kindly  contact  with   the customer-service worker  if you need Bluetooth™  data  output.
