UM-1D Ultrasonic Thickness Meter With Wide Measurement Range 0.8mm to 300mm

 Linshang LS213 Ultrasonic Thickness Gauge Non-destructive Thickness Tester For Steel Range 0.8-350mm

Introduction:

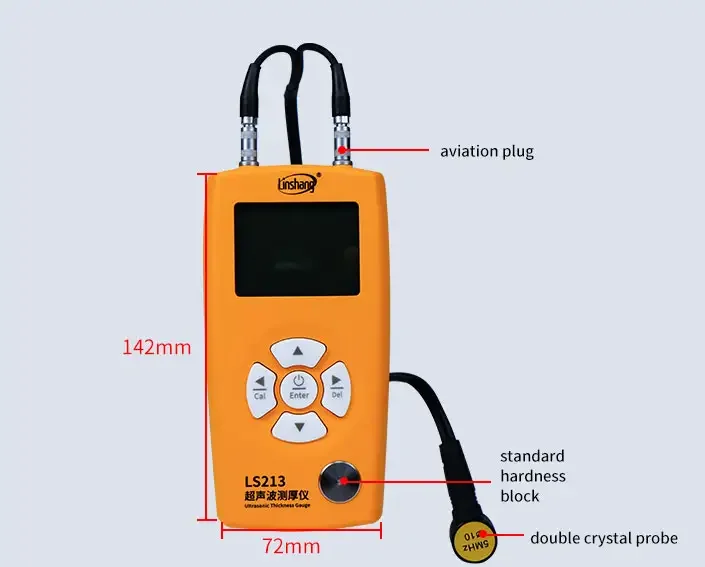

The tester employs a double crystal transducer consisted of two independent crystals separated by an acoustic barrier. When the ultrasonic pulse emitted by one of the crystal sensors of the probe reaches the demarcation surface through the material to be measured, the pulse will be reflected, and received by another crystal sensor.  The professional timing chip inside the instrument precisely records the time of ultrasonic wave propagation in the material, and finally the instrument determines the thickness of the material with time and velocity. The measuring range of the tester is 0.8mm-350mm, capable of testing the most engineering materials, including metals, plastics, ceramics, glass, glass fiber and any other ultrasonic good conductor.

Application:

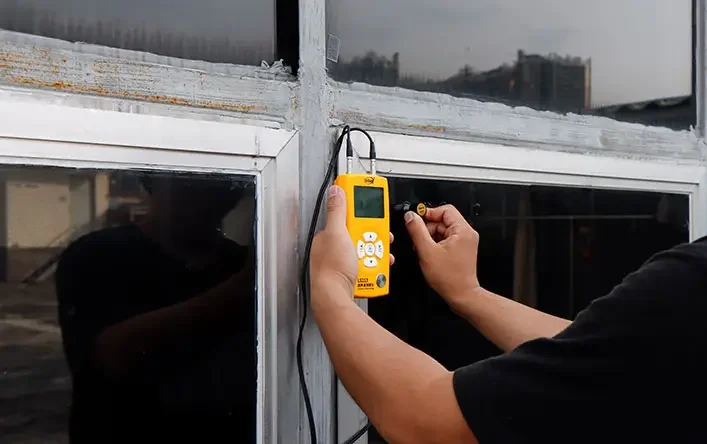

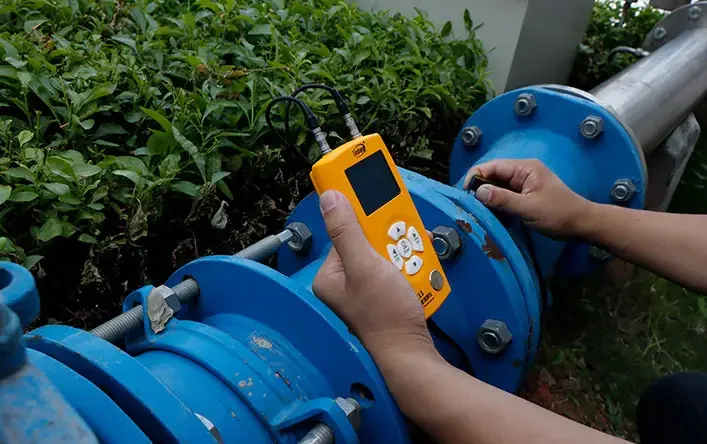

In many industries, It is essential to measure the wall thickness to confirm the condition of the material for the normal running of the items or structure safety. LS213 ultrasonic thickness gauge can be widely used in testing the thickness of various accessories or metallic structure to check them whether to be repaired or changed such as ships, tanks, pipes or steel structure. The gauge is applicable for petroleum, chemical, metallurgical, shipbuilding, aviation and aerospace various fields.

Parameters:

Product Images:
