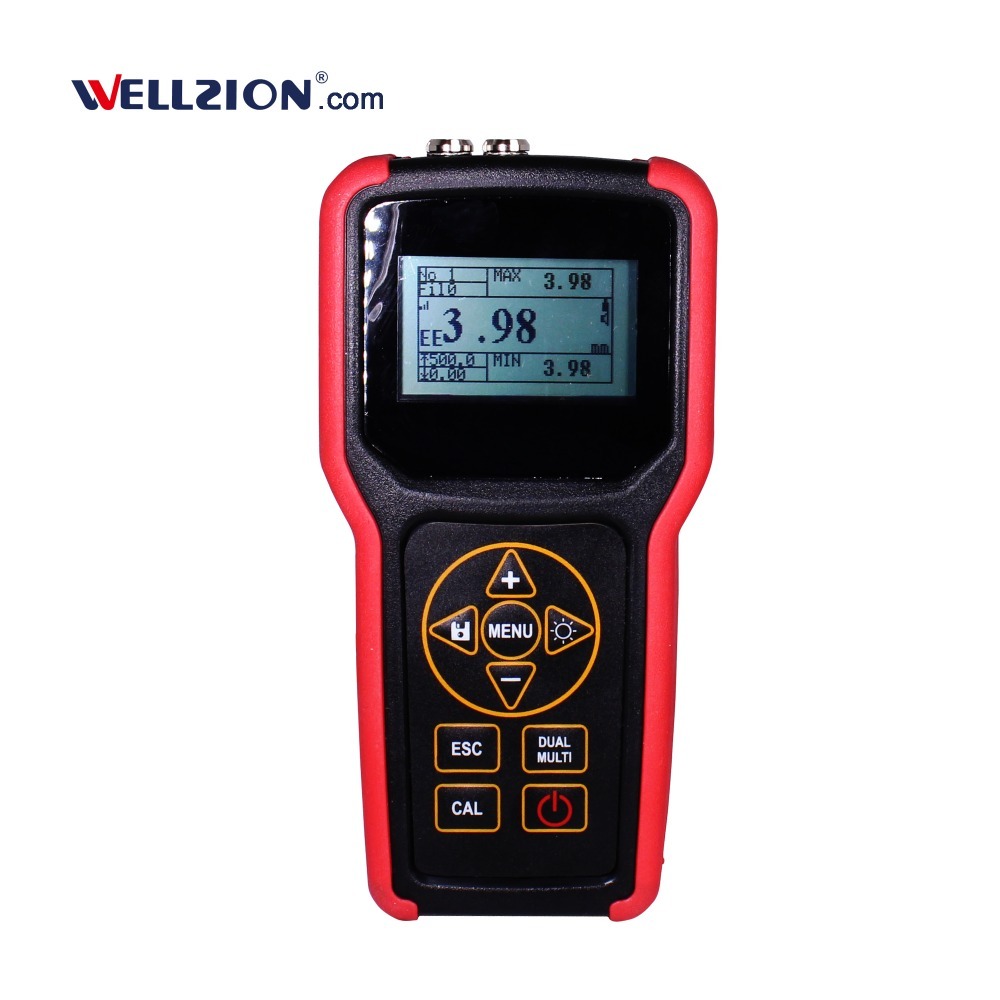

Upad X300,0.75mm to 500mm Ultrasonic Thickness Gauge

Upad X Series Ultrasonic Thickness Gauge will be the best choice for accomplishing measurement. It fits many kinds of metal, such as steel, cast steel, aluminum, plastic ,China glass, glass fiber and any other good conductors of ultrasonic.
There are three vision in Upad X Series, Upad X100, X200 and X300.X300 could measure the thickness of metal covered with coating, the thickness of metal base will be showed.
Advanced Auto Probe Zeroing Calibration and Echo-Echo mode are applied on Upad X series. Taking more accurate measuring result and higher production rate to you.

• Massive Data Memory - 100,000 Data Set


• Probe Connection / Coupling Indicator


• Accuracy:0.1/0.01mm or 0.01/0.001 inch


• Extra-long Standby Time:200 hours


• USB for Storage, Plug and Play


• Statistic Function
  Online Statistic :Max Min, Standard Devraation
  Document Statistic : Max Min Average, Mean Square Error

Working Principle:Ultrasonic(Pulse-Echo)
Detection Range:Normal Mode:0.75~500mm
Velocity:1000~9999m/s,Preset 5 commonly material velocity
Resolution:0.1mm(>100mm)/0.01mm(<100mm)
Indicator:±(0.5%H+0.01)mm
Velocity Route Correction:Auto
Carton Size:165mm*82mm*30mm
Weight:250g(Including battery)
Gain:High/Low/Automatic
Refresh Rate:Single point mode 5 times/s;Scan mode 25 times/s
Statistical Data:

Online Statistics:Max.,Min.,standard deviation
Document Statistics:Max./ samll value,mean,variance

Standard Accessories
Host X1
Probe(D301S,5MHz Φ10mm) X1
Probe Cable X1
Operating Manual X1
Tool Box X1

Optional Accessories
